2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | 25kg/woven bag, pallet | Delivery Time : | 25-30days |
| Payment Terms : | L/C, T/T | Supply Ability : | 500T/month |
| Place of Origin: | Jiangxi, Ganzhou | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS | Model Number: | PP Filler Yarn |
|
Detail Information |
|||
| Color: | Milky White | Specification: | 9KD--300KD |
|---|---|---|---|
| Twisted: | 4-10 TPM | Weight: | 5-50kg/roll |
| Package: | Woven Bag | Breaking Strength: | 0.2-1.4g/d |
| Hot Shrinkage Rate: | <6% | Breaking Elongation: | <20 |
| Tube: | ID 74mm And H 440mm Or Other | Material: | Pp + Caco3 |
| Highlight: | Light Weight FR PP Filler Yarn,Flame Retardant Polypropylene Filler Yarn,Flame Retardant PP Filler Yarn |
||
Product Description
LSHF flame retardant filler yarn
New product-(LSHF) LOW smoke zero halogen fire retardant PP filler yarn
—the product which will replace glass fiber rope
Glass fiber rope and asbestos rope are mainly used for fire retardant cable filling marketing in the past 10 years. But they still have some disadvantages ,such like usability and environmental protection issues. Considering this marketing demand ,we developde this (LSOH)low smoke zero halogen fire retardant filler.ol-28,with the advantage of environmentally friendly ,low smoke and little proporty.
LSHF flame retardant filler yarn ,glass fiber rope ,asbestos rope the comparison of the three
| Item | Diameter(mm) | Weight(g/m) | Lol | Eco-friendly | Proportion(g/cm³) | Smoke intensity | usability |
| Glass fiber | 2 | 4.5 | 30 | N | 2.7 | Gneral | harmful |
| Asbestos | 2 | 4.5 | 30 | N | 2.7 | General | NO eco-friendly |
| PP fire retardant | 2 | 2 | 28 | Y | 0.92 | sight | convenient |
High flame resistance,high temperature filler yarn
Product description
The product uses a special process,with high flame retardancy can be achieved refractory grade oxygen index 45 .suitable for flame retardant power cables ,fire-retardant mining cable,marine cables flame retardant ,flame retardant silicone rubber cables and other high temperature flame retadant cables.
Advantage
High temperature ,high flame,soft,light weight and high strength. Non halogens,non asbestos ,non glass fibers and other harmful substances .suitable for various of halogen-free cables.
Features
Light weight, coust-effective.the production of this product is glass fiber 1/4 ,mineral wool 1/4 ,fire-retardant rubber 1/7 ,flame-retardant filler yarn can reduce production costs and enhance cable permance. The product has been passed the test of national wire and cable test center ,comply with environmental and retardant requirents.
| Type | Diameter(mm) | Appearance | Weight(g/m) | Tensile strength(N/20cm) | Elongation |
Long term stability(℃) |
Oxygen index(%) | Melting point(℃) |
| 1 | 1±0.5 | Round | 2.5±0.5 | ≥30 | ≥20 | 200 | ≥40 | 260 |
| 2 | 2±0.5 | Round | 4.0±0.5 | ≥70 | ≥20 | 200 | ≥40 | 260 |
| 3 | 3±0.5 | Round | 5.0±0.5 | ≥80 | ≥20 | 200 | ≥40 | 260 |
| 4 | 4±0.5 | Round | 7.5±1 | ≥100 | ≥20 | 200 | ≥40 | 260 |
| 5 | 5±1 | Round | 10±2 | ≥120 | ≥20 | 200 | ≥40 | 260 |
| 6 | 6±1 | Round | 13.5±2 | ≥150 | ≥20 | 200 | ≥40 | 260 |

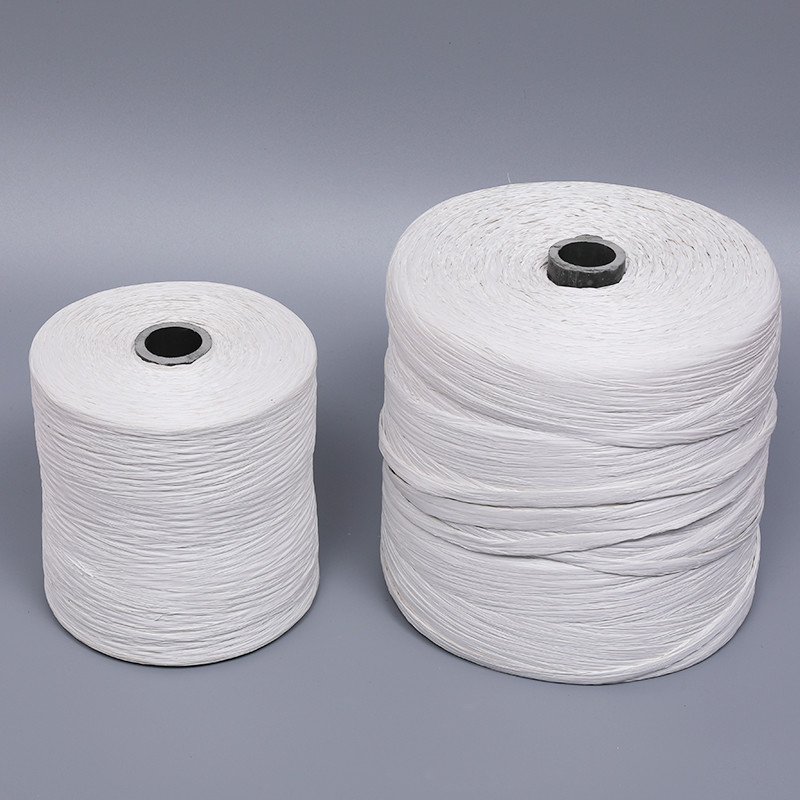

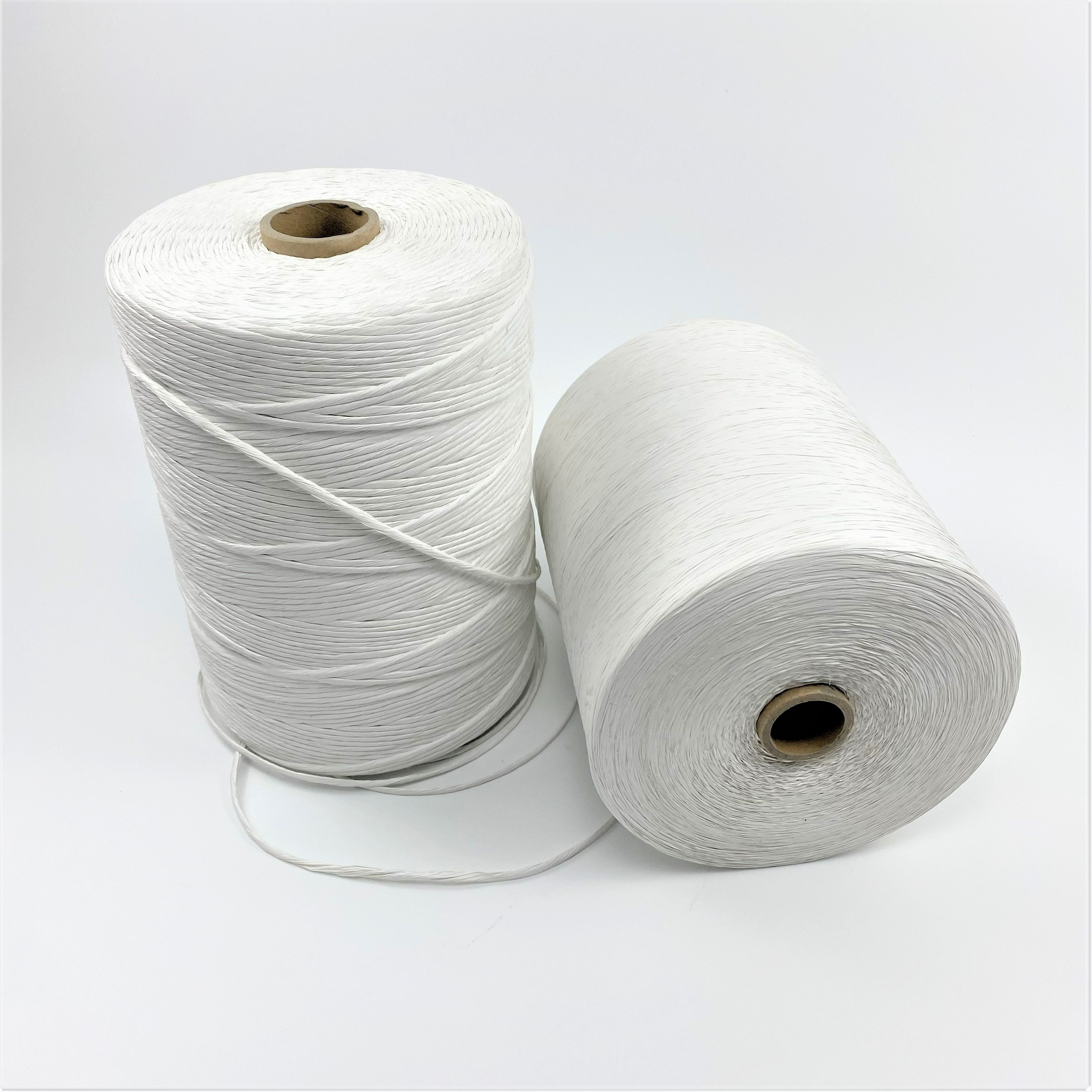

Flame retardant Polypropylene cable filler yarn made by 100% virgin material of Polypropylene ,can be white and other color yellow and blue.it widely used in Cable industry for high quality cable and submarine cable. It’s can be pack in Paper tube cone and Wood drum. General size from 3KD to 500KD.Can be Twist or Non Twist Split or Non Split accordingly to customer particular requirement.
Applications:
Flame retardant Polypropylene cable filler yarn widely used in Cable industry for Flame retardant cable and Halogen free cable filling use
Competitive Advantage:
High tenacity,High quality,Low smoke Halogen free flame retardant,AOI >28,low shrinkage,no knot packing, can be used for kinds of cable and wire.
