White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable
White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable
White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable
Contact Now

White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable

Minimum Order Quantity : 1000kgs Price : negotiable
Packaging Details : 25kg/woven bag, pallet Delivery Time : 25-30days
Payment Terms : L/C, T/T Supply Ability : 500T/month
Place of Origin: Jiangxi, Ganzhou Brand Name: Longtai
Certification: SGS Model Number: PP Filler Yarn

Detail Information
Color: Milky White Specification: 9KD--300KD
Twisted: 4-10 TPM Weight: 5-50kg/roll
Package: Woven Bag Breaking Strength: 0.2-1.4g/d
Hot Shrinkage Rate: <6% Breaking Elongation: <20
Tube: ID 74mm And H 440mm Or Other Material: Pp + Caco3
Highlight:

White 2000Tex PP Filler Yarn

,

PP Flame Retardant Yarn

,

Fire Resistant Yarn For Cable

Product Description



Good Quality Halogen Free Fr PP Cable Filler



Use: For filling cable
Type: 0.5mm-10mm; 10000D, 20000D, 30000D, 50000D, LOI>27
Composition: 100% PP,
Polyester cable yarn 250D, 1000D--
Aramid yarn 200D, 400D, 1000D

The glass filler yarns are produced out of glass fiber material, range of 1mm---20mm
Retardant cable yarn
Low smoke zero halogen
Advantage: Cheap price, suitable for large cable.



Flame retardant PP filler yarn

Specifications:


Item
Unit
General FR PP filler yarn
LOW SMOKE FR PP filler yarn

Denier
D
+/- 10%
+/- 10%

Density
0.92
0.92

Tenacity
g/D
>2.0
2.5

Oxygen index
28
28

Elongation
%
10
10

Heat shrinkage(100deg20min)
%
5
5

Hologen
>10000PPM
<1000ppm

Burning smoke
Big smoke
Less smoke

Appearance
Raw white,no obvious stain

Package
Mark:Product name, weight,denier,batch No.




1. 100% PP filler yarn

Linear Density

12000D

18000D

28000D

33000D

48000D

60000D

70000D

90000D


(weight)g/m

1.33+0.13
-0.13


2+0.2
-0.2

3.11+0.31
-0.31

3.67+0.37
- 0.37


5.33+0.53
-0.53

6.67+0.67
-0.67

7.77+0.77
-0.77

10+1.0
-1.0


Diameter
(mm)

1.5

2

2.5

2.7

3.2

3.8

4.5

5


Breaking
Strength
(kg)
equal or more

24


36

56

66


96

120

140


180

(%)
Breaking Elongation
equal or more

10


10

10

10


10

10

10


10



2. Standard cable pp filler  yarn with mixed Caco3 :
   0.5----30MM,   4----10 TPM
   Standard pp cable filler yarn, price is not high, good effect of cable filling,
   no knot packing, can be used in kinds of cable and wire



Advantage: Cheap price, suitable for large cable.


Linear Density

D

+/-10%

0.5 --30MM
Denier:9000D---300KD


Breaking Strength

g/D

0.6--1.4




Breaking Elongation


%

20




Hot Shrinkage rate


%

6

100°C*1min.


Tube size

mm

       1  ID: 90, H:255
       2. ID: 38, H:220
       3. ID: 50, H:270
       4. ID: 75, H:440
       5. ID: 55, H: 300-400


Packing

5----50KG/ROLL




                                            PP+Caco3 Wire Cable PP Filler Specificatioms

Item

Unit

standard

Remark



pp filler  Fineness

D

specification±8%

9000D-300000D



pp filler  Breaking

g/d

>0.6g/d--1.4



tenacity



Tensibility

%

<20



shrinkage

%

<10

120*30min



in hot air



Appreance

Natural  Color   or   Milky White

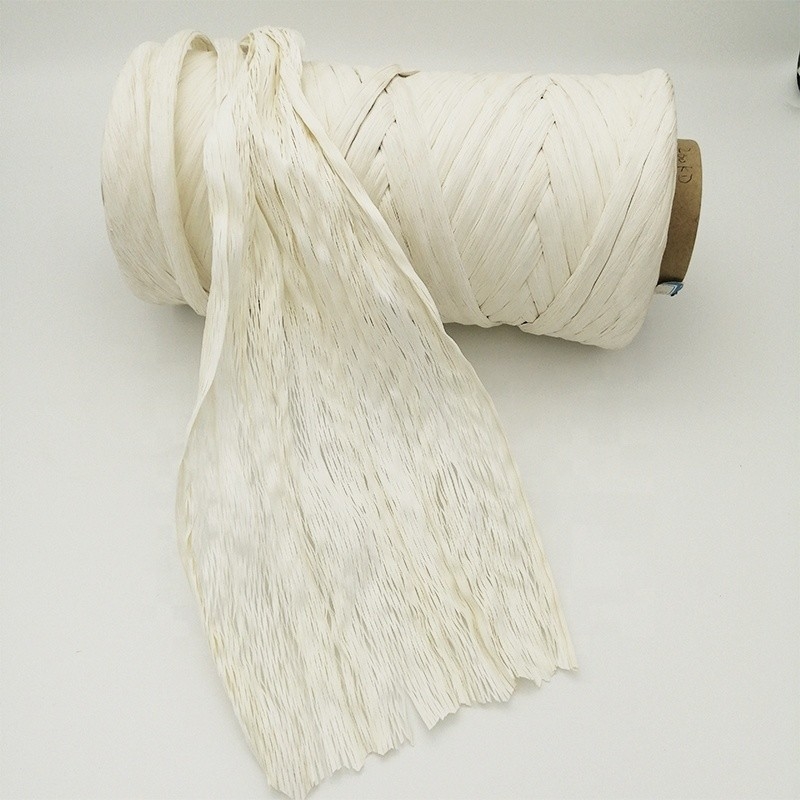

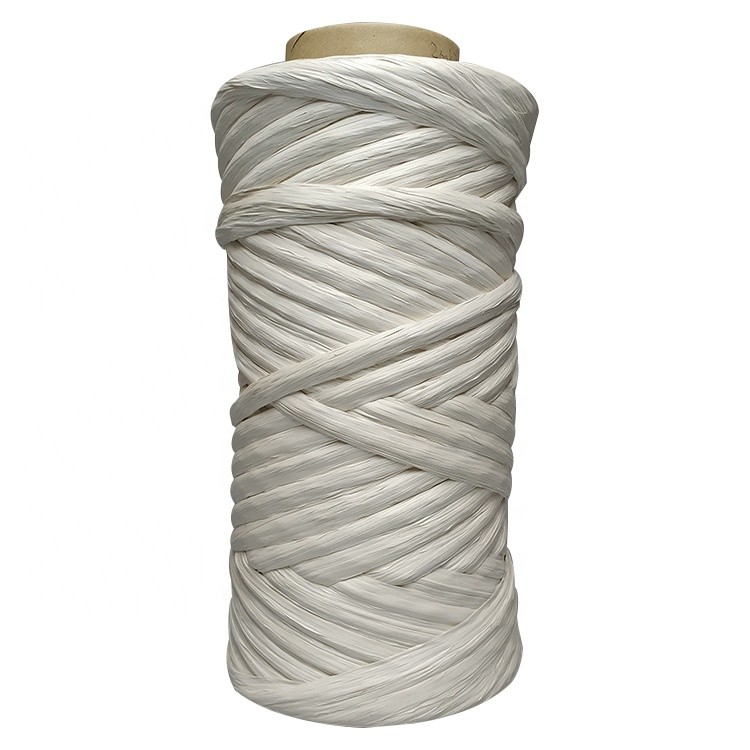

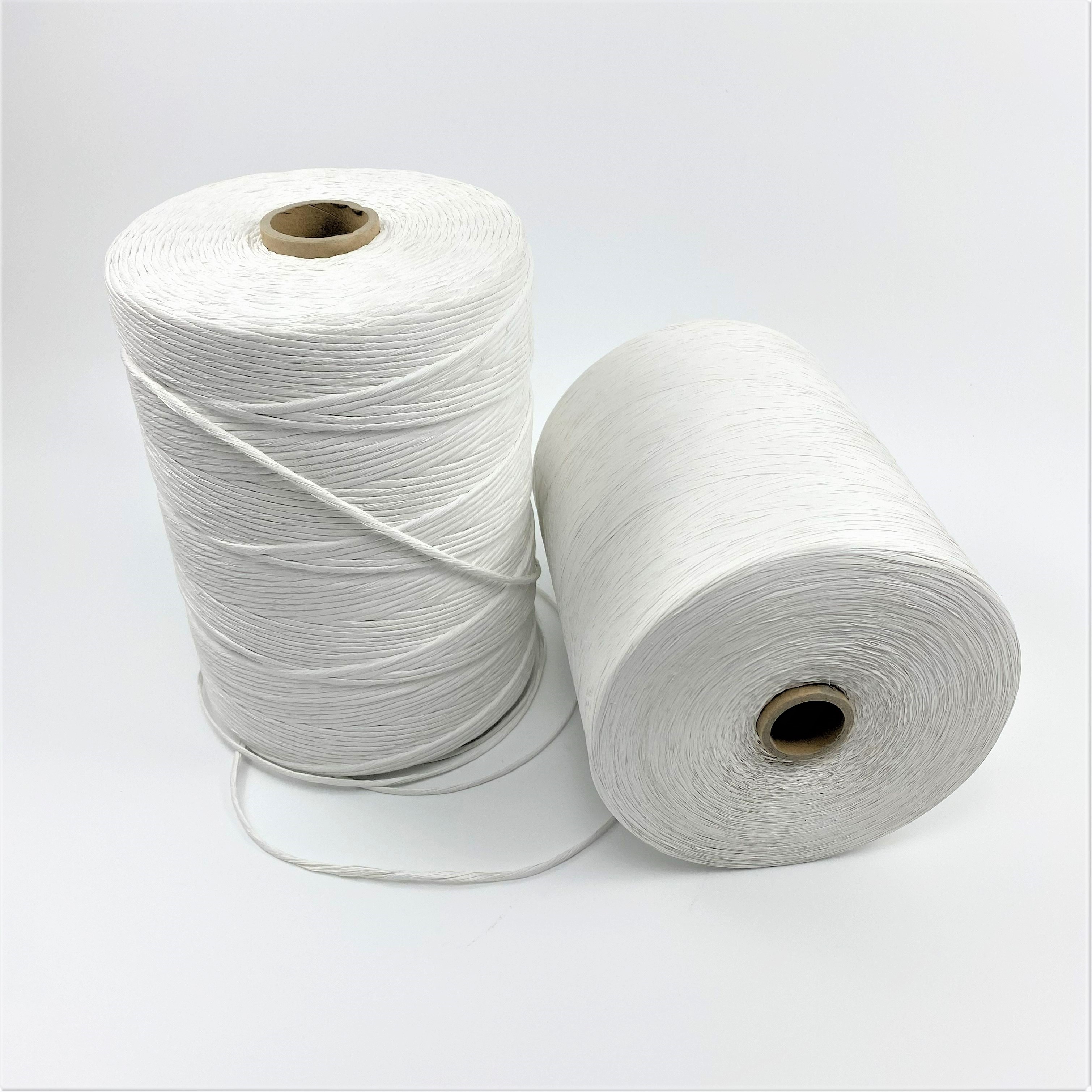

White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable 0White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable 1White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable 2

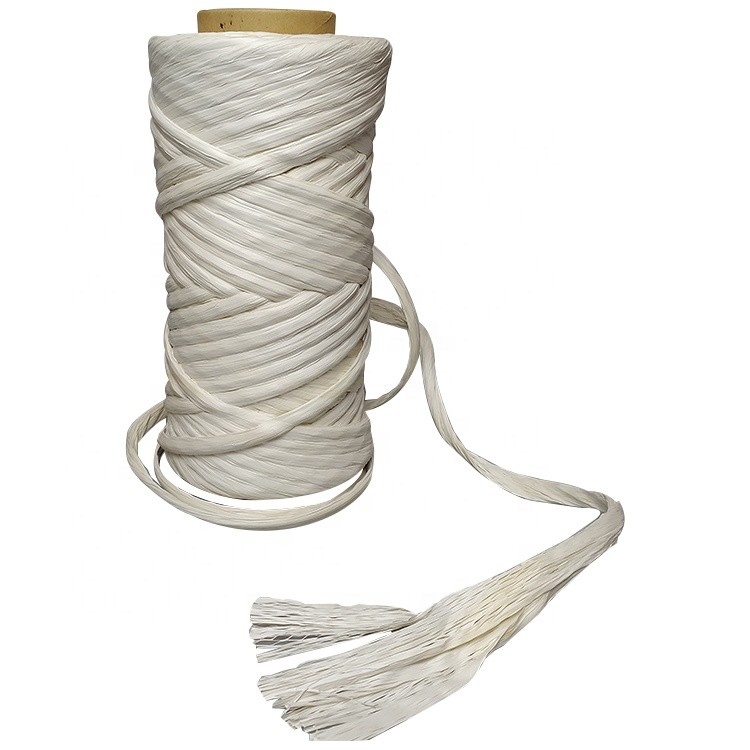

White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable 3White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable 4
