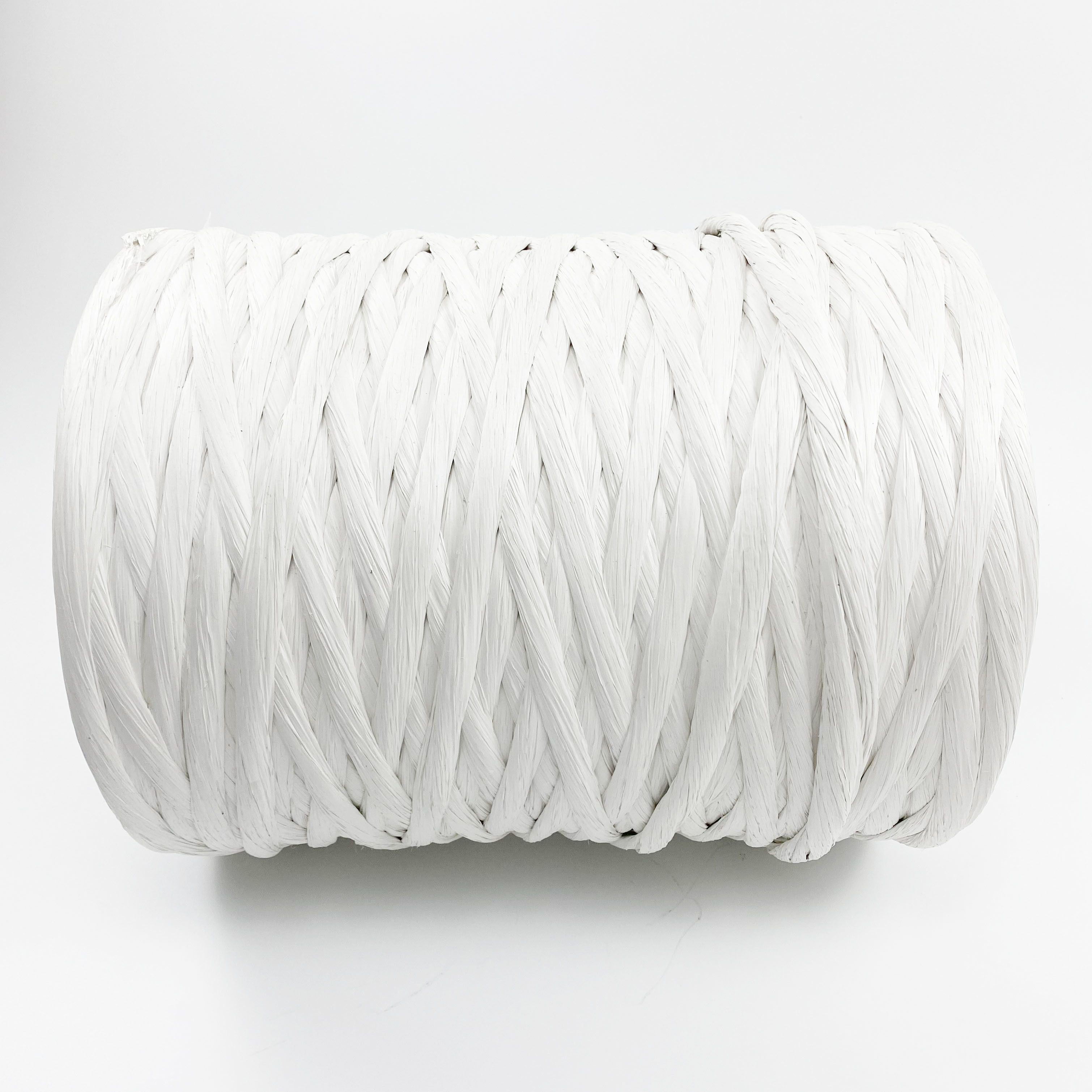

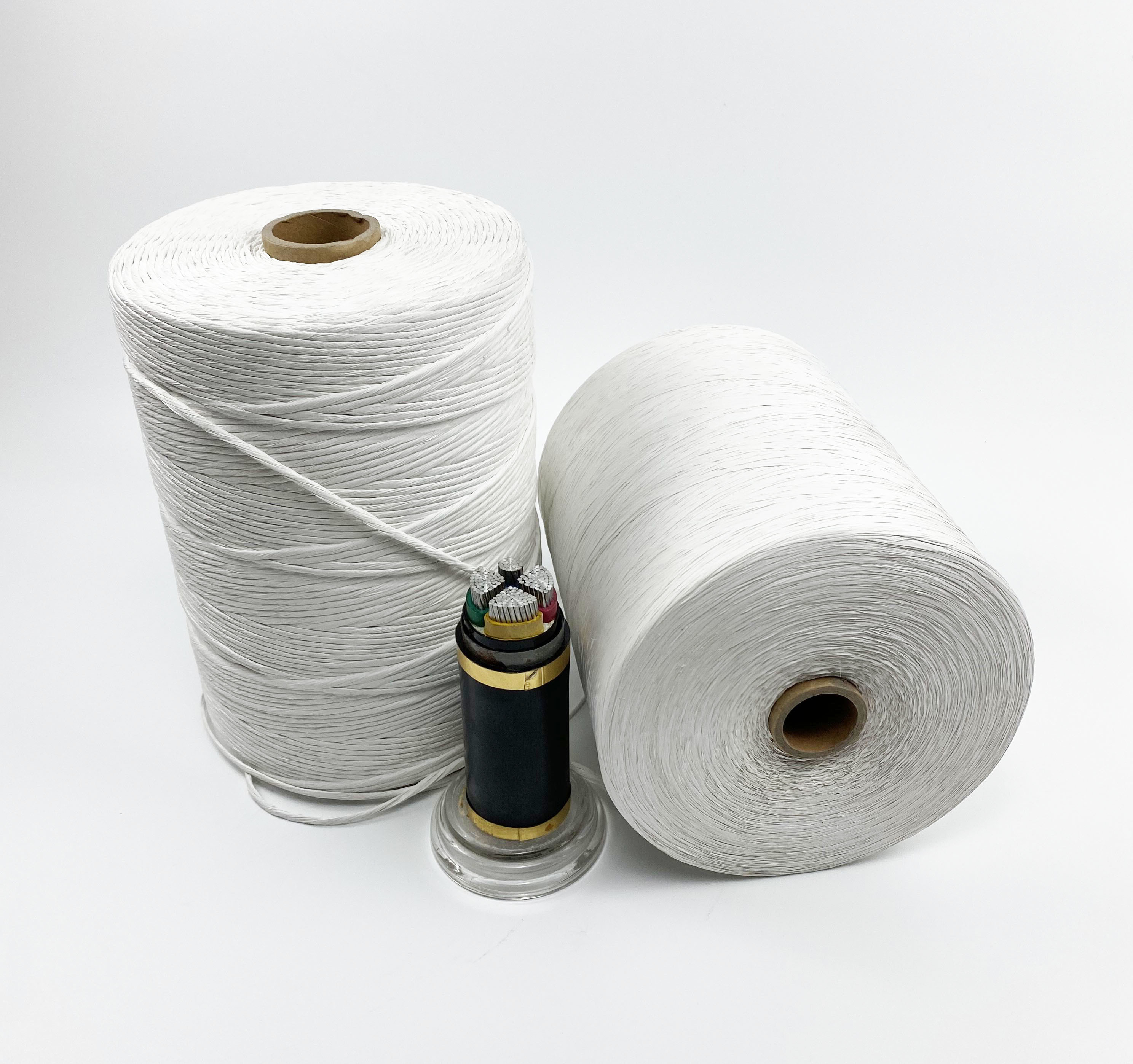

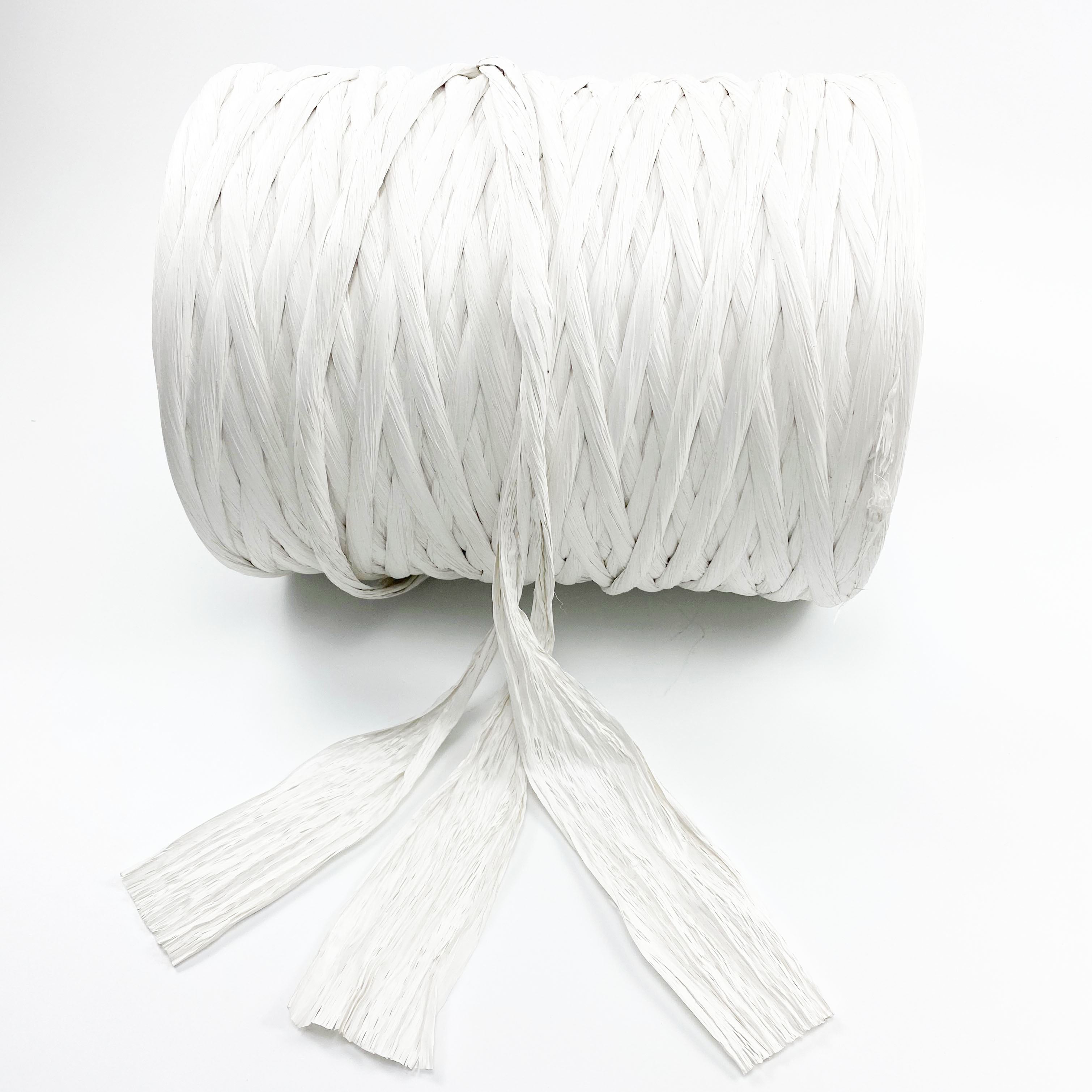

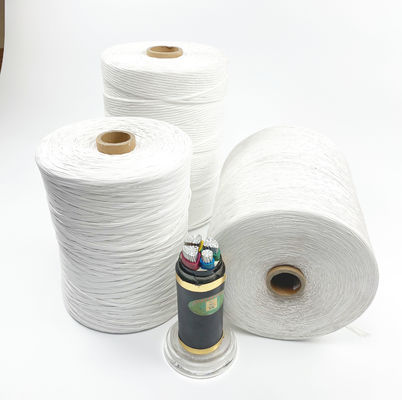

2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | 25kg/woven bag, pallet | Delivery Time : | 25-30days |
| Payment Terms : | L/C, T/T | Supply Ability : | 500T/month |
| Place of Origin: | Jiangxi, Ganzhou | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS | Model Number: | PP Filler Yarn |
|
Detail Information |
|||
| Color: | Milky White | Specification: | 9KD--300KD |
|---|---|---|---|
| Twisted: | 4-10 TPM | Weight: | 5-50kg/roll |
| Package: | Woven Bag | Breaking Strength: | 0.2-1.4g/d |
| Hot Shrinkage Rate: | <6% | Breaking Elongation: | <20 |
| Tube: | ID 74mm And H 440mm Or Other | Material: | Pp + Caco3 |
| Highlight: | Milky White FR PP Filler Yarn,Flame Retardant FR PP Filler,200KD FR PP Filler Yarn |
||
Product Description
Jiangxi Longtai New Materials offers low smoke halogen free flame retardant polypropylene (PP) filler yarns to meet the different demand of your FR cables.
Cable fillers Yarn are Polypropylene homopolymer fibrillated yarn which aids in cable construction by filling the void spaces in the cable by occupying the gap created due to the cable construction of more than one conductor. We can offer zero halogen flame retardant fillers and flat twisted forms as well.
Flame retardant Polypropylene cable filler yarn made by 100% virgin material of Polypropylene ,can be white and other color yellow and blue.it widely used in Cable industry for high quality cable and submarine cable. It’s can be pack in Paper tube cone and Wood drum. General size from 3KD to 500KD.Can be Twist or Non Twist Split or Non Split accordingly to customer particular requirement.
• LSHF FR PP Filler is environmentally friendly flame retardant material, with light weight and excellent tensile strength. It can easily make the wire & cable round and smooth This material is HALOGEN FREE and ASBESTOS FREE
• LSHF FR PP Filler TWISTED due to the twisting, it has the accurate diameter and can easily make the cable very round and smooth.
| Specification | Unit | LSHF FR PP Filler | LSHF FR PP Filler Twisted |
| Linear Density | Denier(D) | 3,800-200,000 | 3,800-60,000 |
| Diameter | mm | 0.8-8 | 0.8-5 |
| Breaking Strength | g/D | 2-3.5 | 2-3.8 |
| Elongation | % | ≥20 | |
| Oxygen Index | % | ≥30 | |
| Halogen | Free | Free | |
| Color | - | White, Blue, etc. | White, Blue, etc. |
Note: 9Denier=1g/km
Tube & Bobbin size:
| Size | A | B | C |
| ID (mm) | 38,50,76 | 38,50,76 | 50,76 |
| Tube Height (mm) | 250-260 | 300-320 | 400-430 |
| OD (mm) | 180-250 | 200-350 | 300-500 |
| Weight (kg) | 2.5-8 | 5-15 | 15-40 |
Applications:
Flame retardant Polypropylene cable filler yarn widely used in Cable industry for Flame retardant cable and Halogen free cable filling use
Competitive Advantage:
High tenacity,High quality,Low smoke Halogen free flame retardant,AOI >28,low shrinkage,no knot packing, can be used for kinds of cable and wire.
The flame retardant and high temperature resistant filler rope we provided has the following characteristics:
1) Soft texture, free bending, no delamination and powder removal when light bending.
2) Uniform twist and stable outer diameter.
3) No dust flying during use.
4) High oxygen index which can reach Class A flame retardant grade.
5) Neatly and unloose winding.
After Service:
1. Best quality and best service for any order. No problem big or small order
2. One year warranty.
3. Please contact after our Service Department, inform us what problem you encounter.
4. We provide solving methods for you.
