200KD LSHF FR Twisted Light Blue Polypropylene PP Yarn As Fire Cable Filler

Product Description

200KD LSHF FR Twisted Light Blue Polypropylene PP Yarn Used As Fire Cable Filler

Twisted FR Polypropylene PP Yarn Filler for Cable and Wire

Product Description:

• Low smoke halogen-free flame retardant PP filling rope.
• The product uses PP yarn raw material as base material, adds low-smoke halogen-free environment-friendly flame retardant, and is made into high-strength mesh low-smoke halogen-free flame retardant PP filling rope through special equipment film pressing and net opening processing. The product has good flame retardant performance, low smoke density, halogen-free, asbestos-free and environment-friendly.

• Soft and strong pulling force. As a non-hygroscopic filling material, this product is widely used in flame retardant cables, marine cables, control cables, power cables, etc. Compared with similar products on the market, this product has a light weight of about 70% and uses paper tube core, thus greatly reducing the cost. The normal color is white, which can be changed and twisted according to customer's requirements.

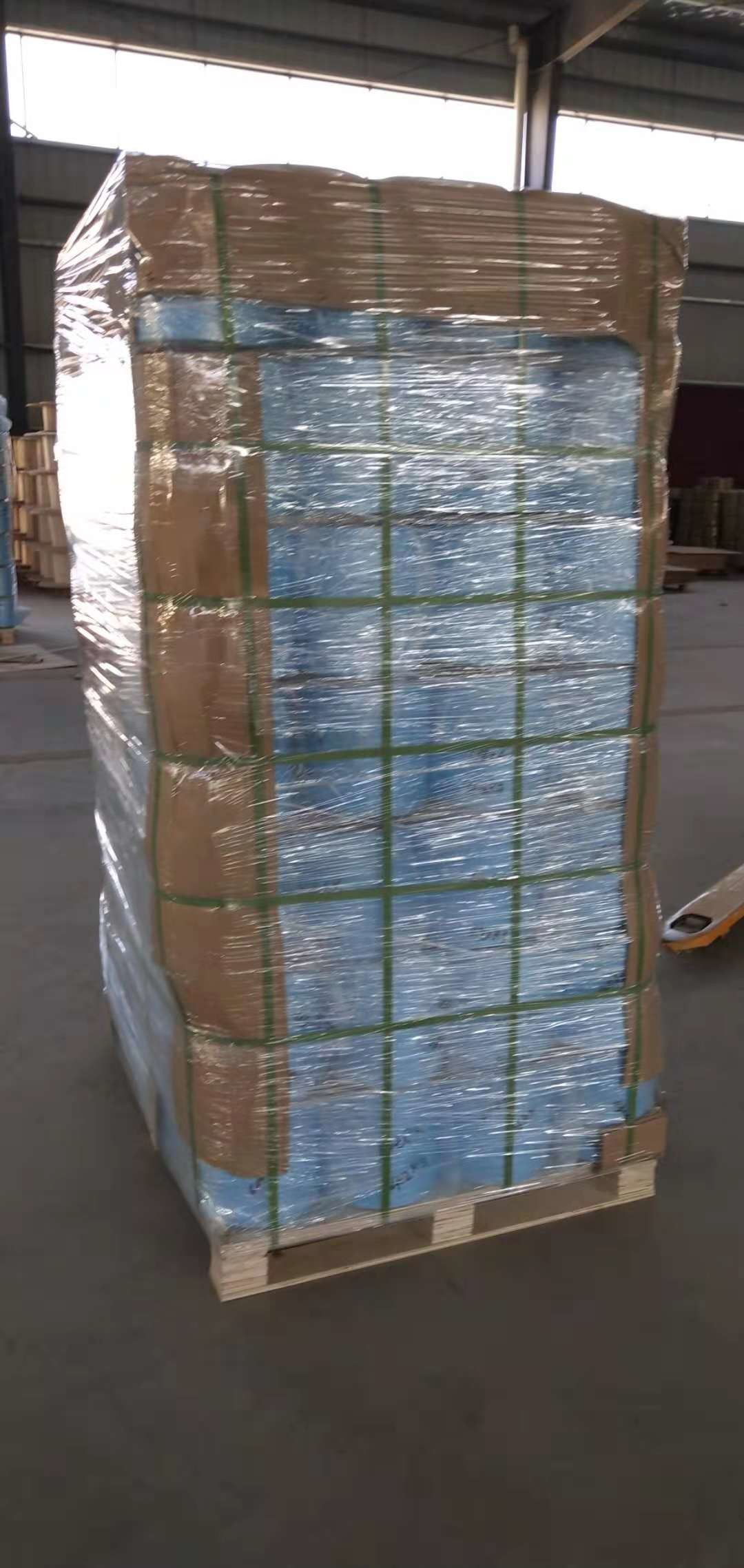

Package:

Cardboard Tube



 Technical Data Sheet



properties	Size	Unit Weight	Strength at Broken	Elongation at Broken	Oxygen Index	Heat Shrinkage
	Denier	Kg/Km	g/d	%	%	%
Twisted FR PP Filler	10,000D to 200,000D	1.11 ±10 to 22.2 ±10	≥2	≥10	≥28	≤6

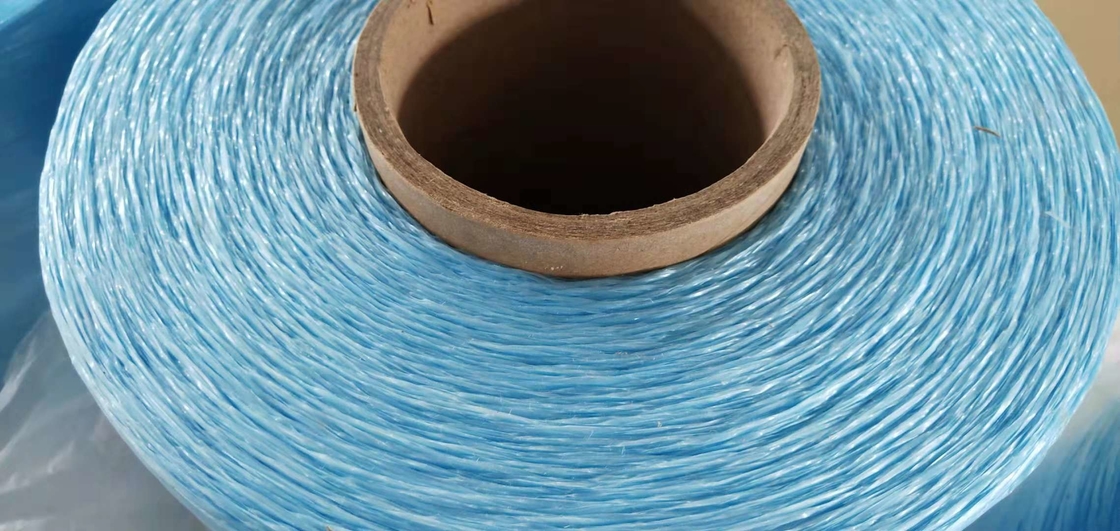

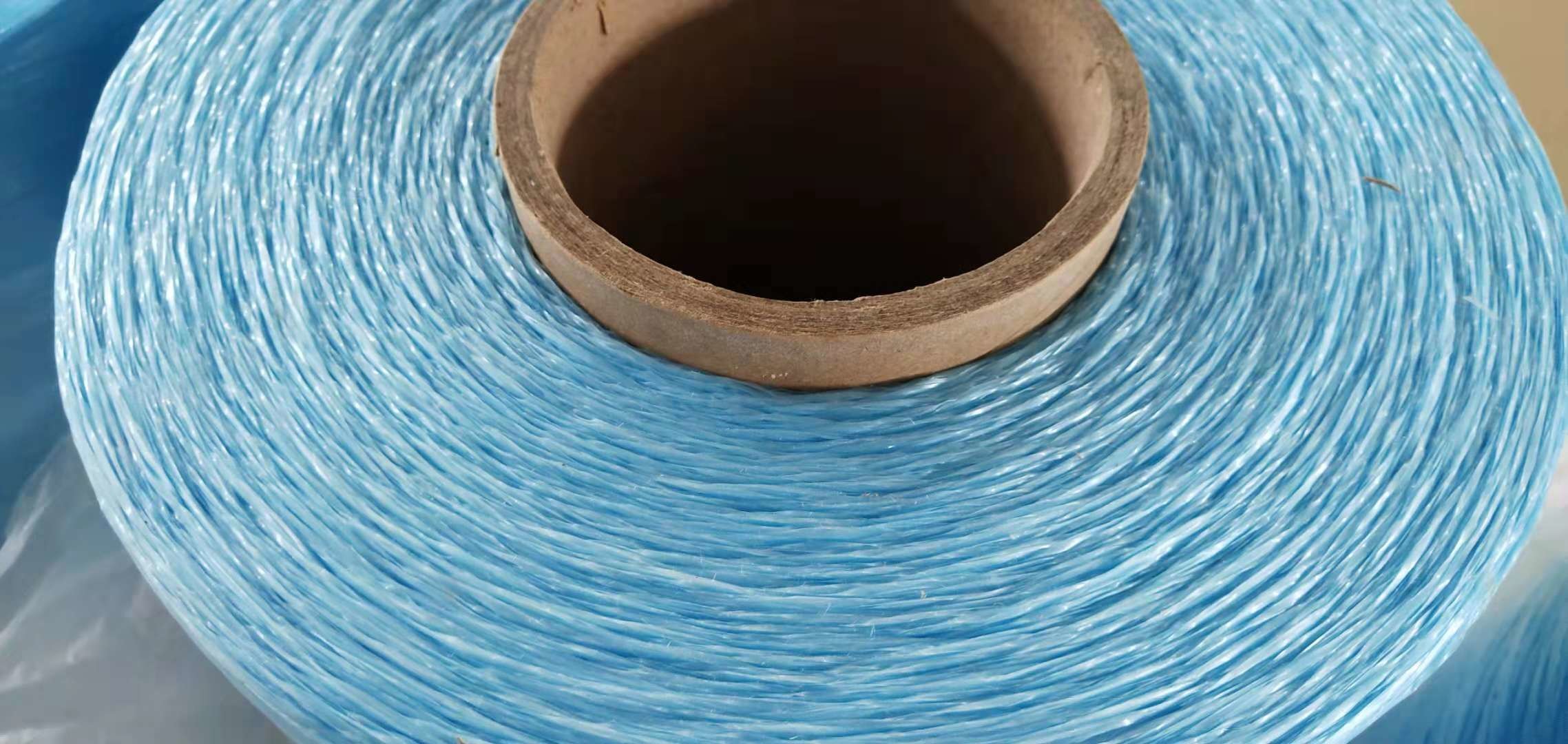

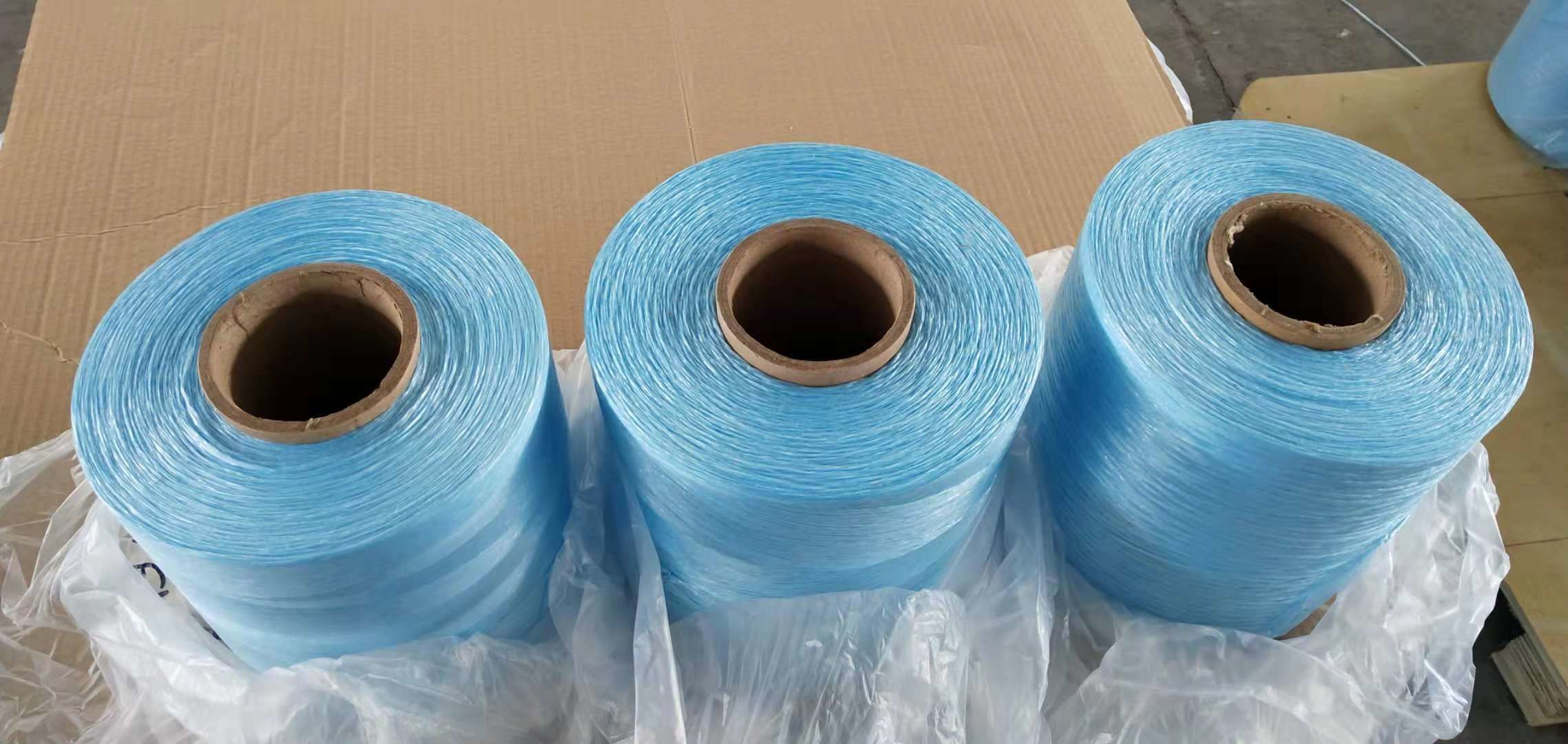

Product show





Certifications





What we coopearted:





The flame retardant and high temperature resistant filler rope we provided has the following characteristics:



1) Soft texture, free bending, no delamination and powder removal when light bending.
2) Uniform twist and stable outer diameter.
3) No dust flying during use.
4) High oxygen index which can reach Class A flame retardant grade.
5) Neatly and unloose winding.



Package: In Roll 8MT/20FCL



Application :



It is used to the filling the power cable, control cable, mine cable, telecom cable.

This product is made of polypropylene as base material, adding environmental protection flame retardant agent, and processed by special machine to make high-strength mesh filling material, which is mainly used for filling high-grade flame-retardant special wire and cable. At the same time, it can increase the tensile strength of cable and make the cable round.



Shipping instructions :



We will ensure that the goods are not damaged during delivery. Before shipment, we will arrange for the customer to conduct a video inspection to ensure that there is no problem and the goods will leave to ensure that everything is safe during transportation. We will also track the process in real time.
