Low Smoke Zero Halogen Fire Retardant LSZH PP Filler Yarn cable fillers for multiconductor low voltage cables

Product Description

Low Smoke Zero Halogen Fire Retardant LSZH PP Filler Yarn cable fillers for multiconductor low voltage cables

Twisted FR Polypropylene PP Yarn Filler for Cable and Wire

Product Description:

New product: LOW smoke zero halogen fire resistant wire filler product that will replace fiber glass rope

The cable fillers generally include: PP rope, Cotton rope, Paper rope or recycled rubber processing and other relatively cheap materials.

It can be used as a cable filling material, and has the characteristics of not causing adverse effects on the insulated cable core, and the material itself does not have moisture absorption, is not easy to shrink, and does not corrode.

Fiber optic cord and asbestos cord are mainly used for fire resistant cable filling marketing in the past 10 years. But they still have some disadvantages, such as usage and environmental protection issues. Considering this marketing request, we developed this low smoke zero halogen fire resistant filler.ol-28, with the advantages of environmental friendliness, low smoke and small proportion.

Flame retardant side wire, fiber glass fiber, asbestos rope the comparison of the three

Package:

Cardboard Tube



 Technical Data Sheet



properties	Size	Unit Weight	Strength at Broken	Elongation at Broken	Oxygen Index	Heat Shrinkage
	Denier	Kg/Km	g/d	%	%	%
Twisted FR PP Filler	10,000D to 200,000D	1.11 ±10 to 22.2 ±10	≥2	≥10	≥28	≤6

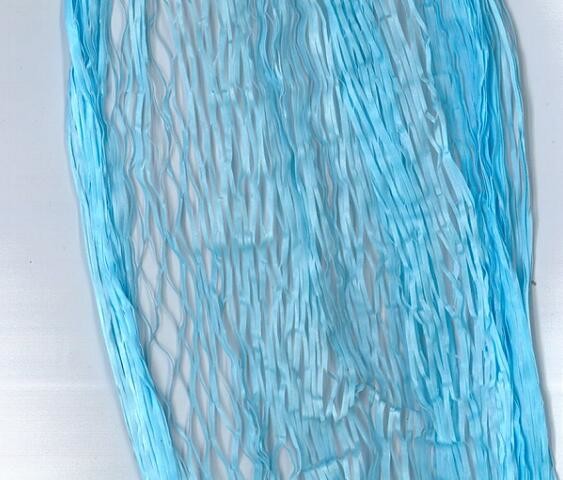

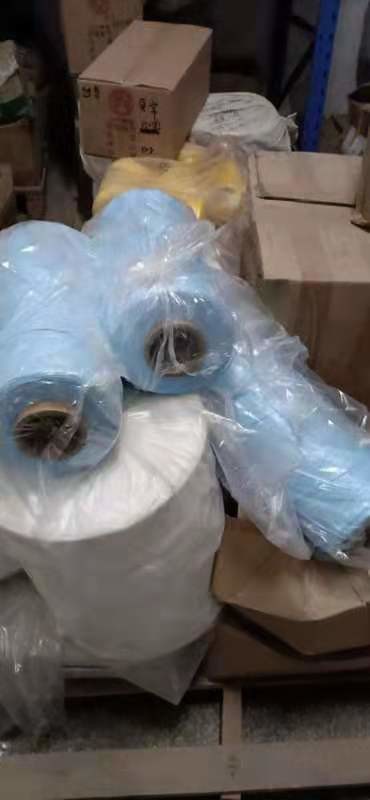

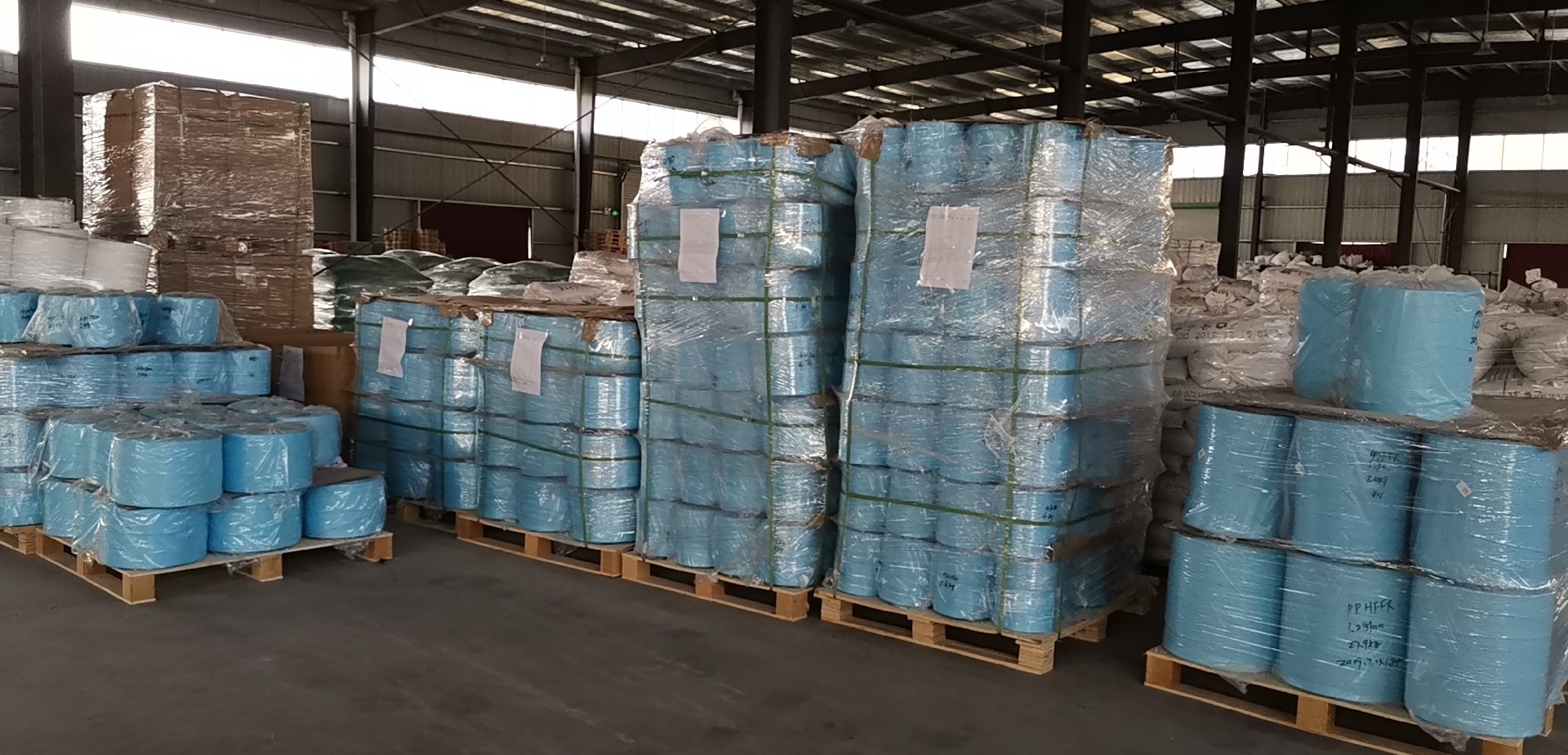

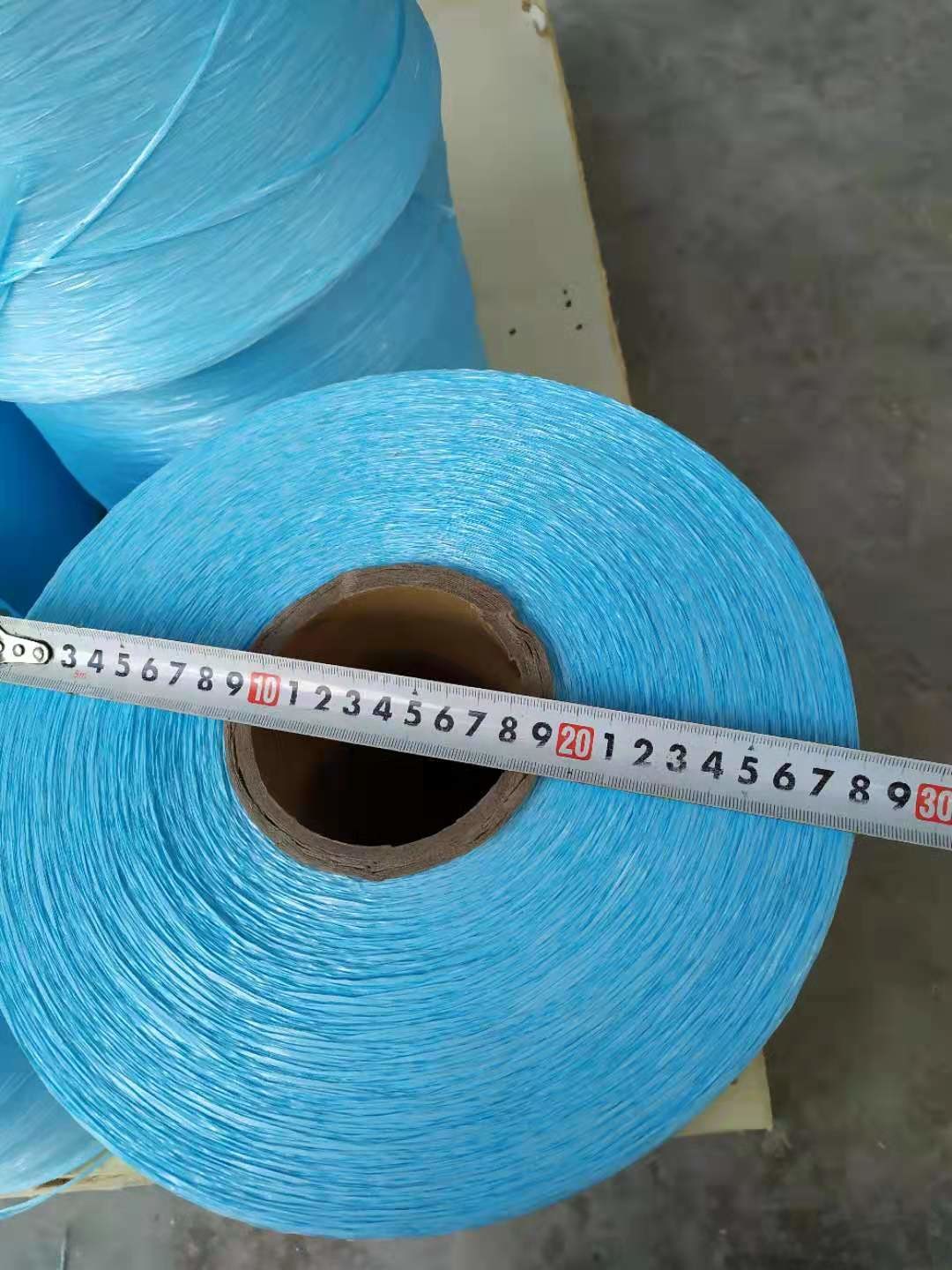

Product show





Certifications





What we coopearted:





Application:



Mainly used for filling the gap of cable core of flame-retardant power cable,flame-retardant mining cable, flame-retardant marine cable, flame-retardant silicone rubber cable, fire-resistant cable, fire(oxygen)-insulation layer cable and other cables requiring flame-retardant and high-temperature resistance.





Packaging :Flame retardant and high temperature resistant filler rope has two packaging methods according to its specifications.



(1) Small size (88cm*55cm*25cm): The product is wrapped in a moisture-proof film bag and put into a woven bag.
(2) Large size (46cm*46cm*53cm): The product is wrapped in a moisture-proof film bag and then packed in a waterproof polyester non-woven bag.
