56Dtex/24F High Tensile Filling In The Wire And Cable Liquid Crystalline Polyester Filament Zxion
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | 25kg/woven bag, pallet | Delivery Time : | 25-30days |
| Payment Terms : | L/C, T/T | Supply Ability : | 500T/month |
| Place of Origin: | Jiangxi, Ganzhou | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS,ISO,Reach,Rohs | Model Number: | PP Filler Yarn 001 |
|
Detail Information |
|||
| Color: | Milky White/Transprant White/Light Blue/Black | Specification: | 2KD--1300KD |
|---|---|---|---|
| Twisted: | 4-10 TPM | Weight: | 5-50kg/roll |
| Package: | Woven Bag | Breaking Strength: | 0.2-3g/d |
| Hot Shrinkage Rate: | <6% | Breaking Elongation: | <20 |
| Tube: | ID 74mm And H 440mm Or Other | Material: | Virgin Pp + Caco3 / 100% Virgin Pp |
| Highlight: | Twisted Fibrillated PP Filler Yarn,Excellent Flexibility PP Filler Yarn,Fibrillated PP Cable Filler Yarn |
||
Product Description

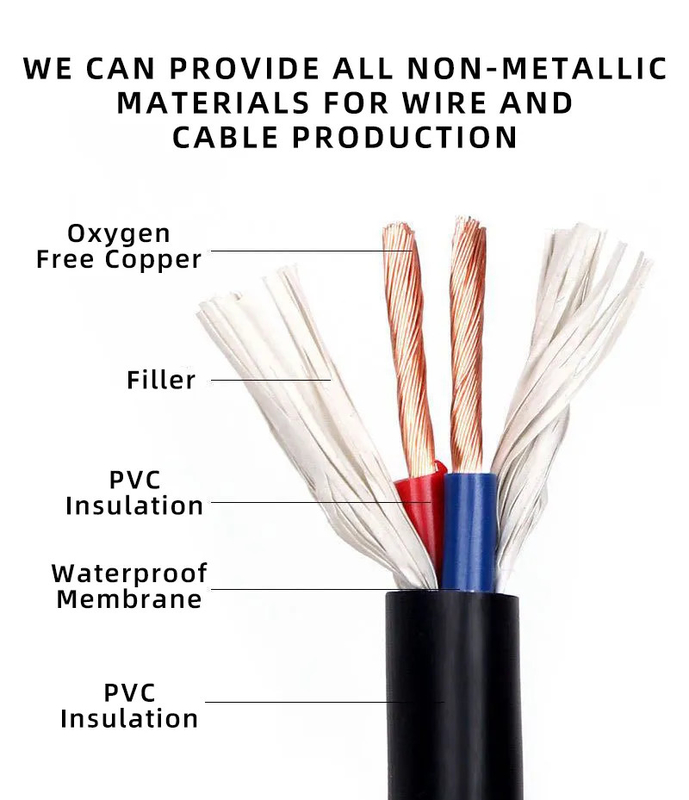

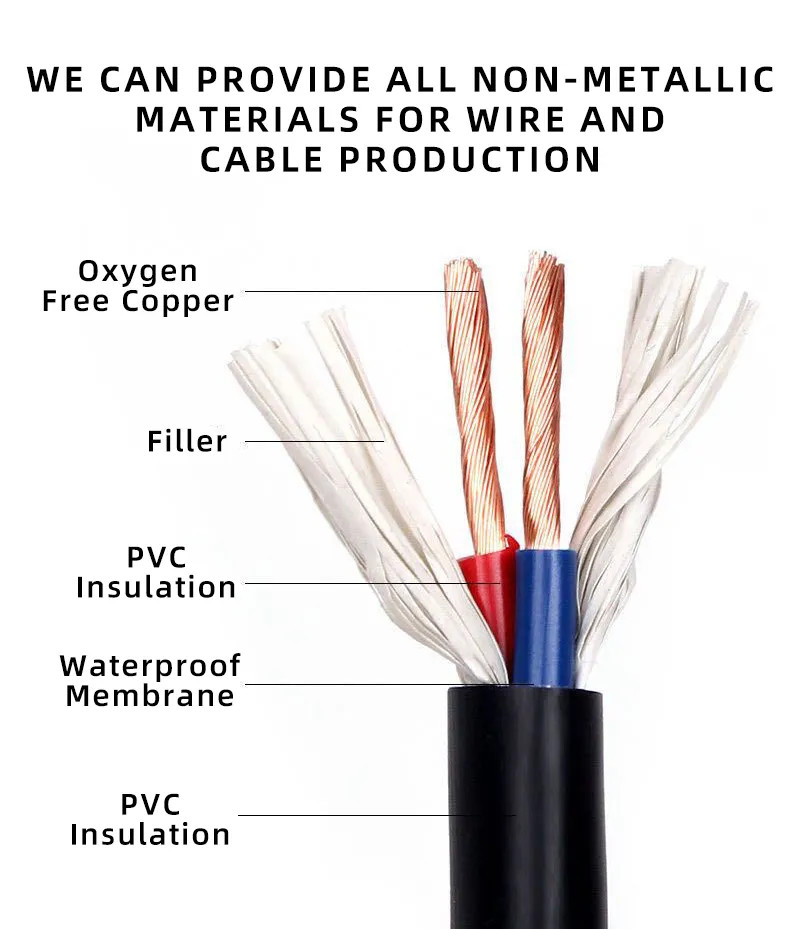

Fillers are used to give a cable a more rounded and smooth construction and to give the inside of the cable a cleaner appearance. Additionally, it strengthens a cable, so that when a cable is moved or flexed, you can control the conductors moving inside of the cable.
The pp filling rope material for cables is made of polypropylene resin as the base material, adding modifiers and other processing aids, after high-speed stirring, plasticization, and granulation. The product has good fluidity, mechanical and physical properties, and Process performance, mainly used in optical cables and all kinds of cable filling.

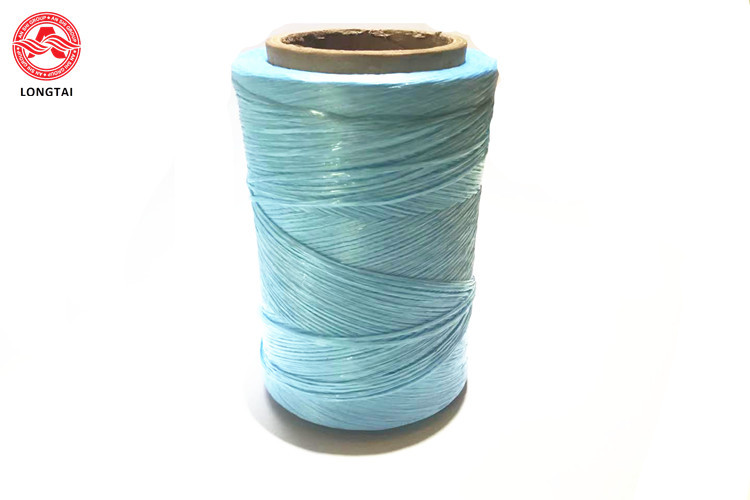

Longtai PP Cable filler yarn available in natural white. The flame retardant PP cable filler yarn is yellow,blue, white.
Longtai PP cable filler yarn deniers and sizes can be made as per customers specifications. 2000 denier to 1935,000 denier available
Specification Data Sheet for reference
|
Linear Density |
12KD |
18KD |
30KD |
60KD |
90KD |
120KD | 195KD | 630KD | 880KD | 1130KD | 1630KD |
|
|
1.33 |
2 |
3.67 |
6.67 |
10 |
13.3 | 21.67 | 70 | 98 | 112 | 182 |
|
|
1.5 |
2 |
3 |
4 |
5 |
6 | 8 | 12 | 14 | 16 | 20 |
Different Types Data Sheet
| Item | Unit | Commen Filler | Standard Filler |
High Strength Filler/ LSZH FR Filler/ Submarine Filler |
| Breaking Strength | g/d | 0.2-0.6 | 0.6-1.4 | 1.4-3 |
| Breaking Elongation | % | ＜20 | ＜20 | ＜15 |
| Hot Shrinkage Rate | % | ≤6 | ≤4.5 | ≤3 |
| Weight per tube | KG | 6-40 | 2.5-40 | 2.5-40 |
| Oxygen Index | FR ≥28% | |||
| Advantage | Cheap price,suitable for large cable | Cheap price,suitable for large cable | Virgin PP material,best material property,suitable for optical cable,power able,submarine cable |
Package Tube sizes for choose or customzied
| Iner core(mm) | 28 | 38 | 38 | 54 | 76 | 76 | 90 |
| Core Length(mm) | 260 | 230 | 258 | 258 | 310 | 432 | 260 |
The advantage of PP cable filler yarn is as below:
Package pictures for reference
Product Detailes
Certifications
What we cooperated
Remarks:
1> MOQ 1000KG
2> Loading Capacity with pallet shipment: Appox 8000KG/20GP
3> Payment term: T/T,30% in advance,70% before shipment
4> Production time: about 25 workdays after receive deposit
