2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | 25kg/woven bag, pallet | Delivery Time : | 25-30days |
| Payment Terms : | L/C, T/T | Supply Ability : | 500T/month |
| Place of Origin: | Jiangxi, Ganzhou | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS,ISO,Reach,Rohs | Model Number: | PP Filler Yarn |
|
Detail Information |
|||

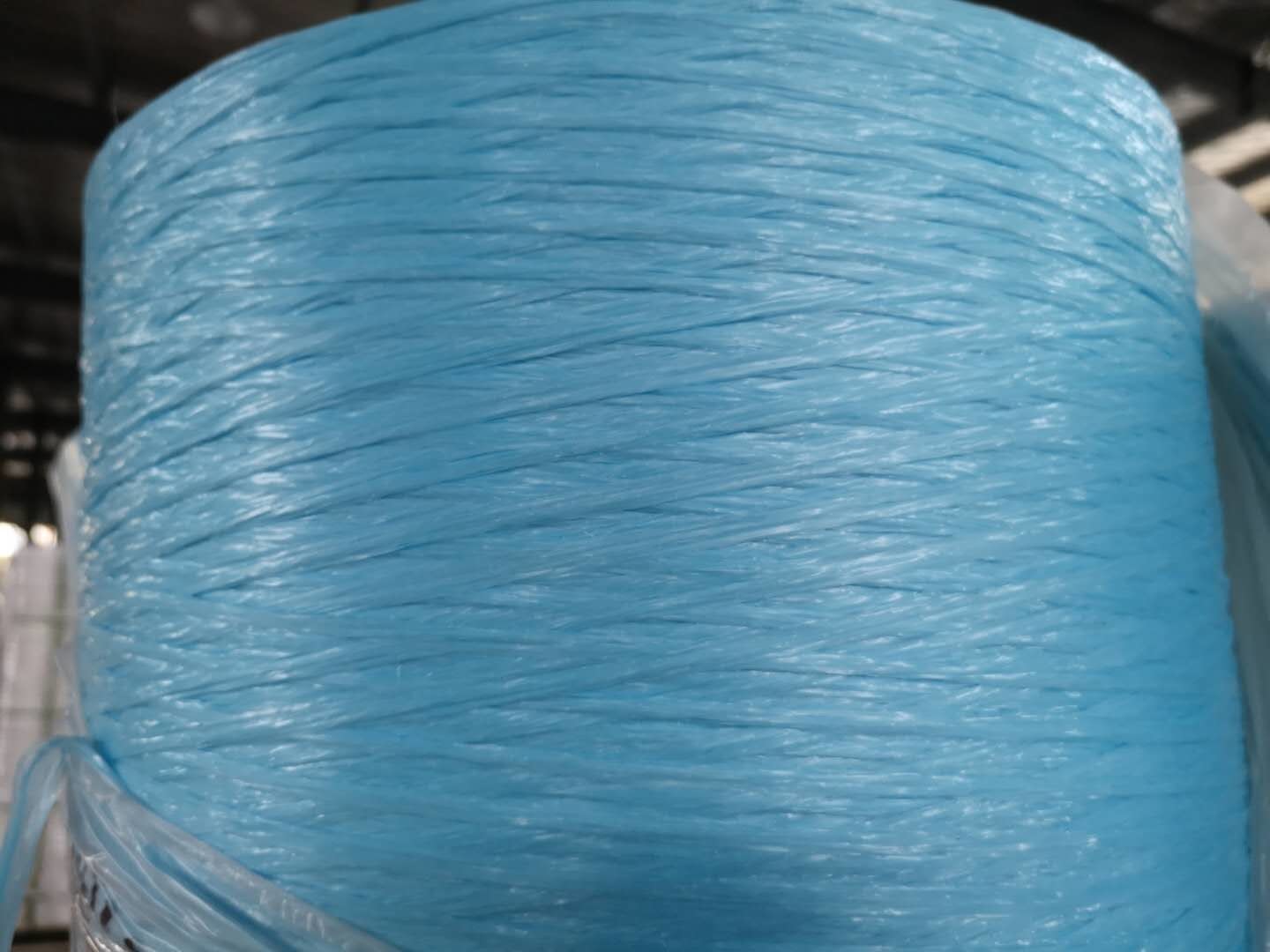

| Color: | Milky White/Transprant White/Light Blue/Black | Specification: | 2KD--1300KD |
|---|---|---|---|
| Twisted: | 4-10 TPM | Weight: | 5-50kg/roll |
| Package: | Woven Bag | Breaking Strength: | 2-3g/d |
| Hot Shrinkage Rate: | <6% | Breaking Elongation: | <20 |
| Tube: | ID 74mm And H 440mm Or Other | Material: | Virgin Pp + Caco3 / 100% Virgin Pp |
| Highlight: | Fibrillated Polypropylene Cable Filler,Flame Retardant Polypropylene Cable Filler,120000 Denier PP Filler Yarn |
||
Product Description
The cable is generally composed of three-phase wires or more. There is an insulating layer between the phases and a circular protective and insulating layer. The circular circumference is short and its strength is high, but there is a gap between it and the three-phase wire.
After filling these gaps with fillers, this undoubtedly completes the circular shape of the outer protective layer, achieving the purpose of high strength and stable structure.
Generally speaking, the main function of the cable filling rope is to keep the cable round and improve the roundness of the finished cable. At the same time, the filling rope can also assist in improving the cable's anti-stretch and anti-sway function.
In addition to these basic functions, for flame-retardant cables, the filling rope itself should be made of flame-retardant material to further improve the flame-retardant performance of the finished cable
Specification Data Sheet for reference
|
Linear Density |
12KD |
18KD |
30KD |
60KD |
90KD |
120KD | 195KD | 630KD | 880KD | 1130KD | 1630KD |
|
|
1.33 |
2 |
3.67 |
6.67 |
10 |
13.3 | 21.67 | 70 | 98 | 112 | 182 |
|
|
1.5 |
2 |
3 |
4 |
5 |
6 | 8 | 12 | 14 | 16 | 20 |
Different Types Data Sheet
| Item | Unit | Commen Filler | Standard Filler |
High Strength Filler/ LSZH FR Filler/ Submarine Filler |
| Breaking Strength | g/d | 0.2-0.6 | 0.6-1.4 | 1.4-3 |
| Breaking Elongation | % | ＜20 | ＜20 | ＜15 |
| Hot Shrinkage Rate | % | ≤6 | ≤4.5 | ≤3 |
| Weight per tube | KG | 6-40 | 2.5-40 | 2.5-40 |
| Oxygen Index | FR ≥28% | |||
| Advantage | Cheap price,suitable for large cable | Cheap price,suitable for large cable | Virgin PP material,best material property,suitable for optical cable,power able,submarine cable |
Application :

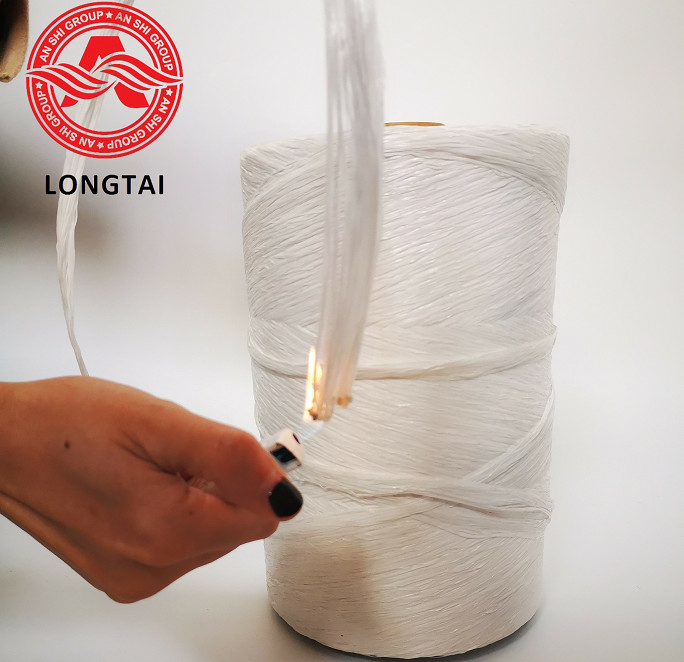

Flame retardant and high temperature resistant filler rope used as non-hygroscopic flame retardant material for cabling filler in flame-retardant power cable, flame-retardant mining cable, flame-retardant marine cable, flame-retardant silicone rubber cable, fire-resistant cable, fire(oxygen)-insulating layer cable and other cables requiring flame-retardant and high-temperature resistance.
In particular, the performance is better in class A flame retardant medium-voltage power cable filling which does not occur oxidation when contact with copper tape.
Package Tube sizes for choose or customzied
| Iner core(mm) | 28 | 38 | 38 | 54 | 76 | 76 | 90 |
| Core Length(mm) | 260 | 230 | 258 | 258 | 310 | 432 | 260 |
Package pictures for reference

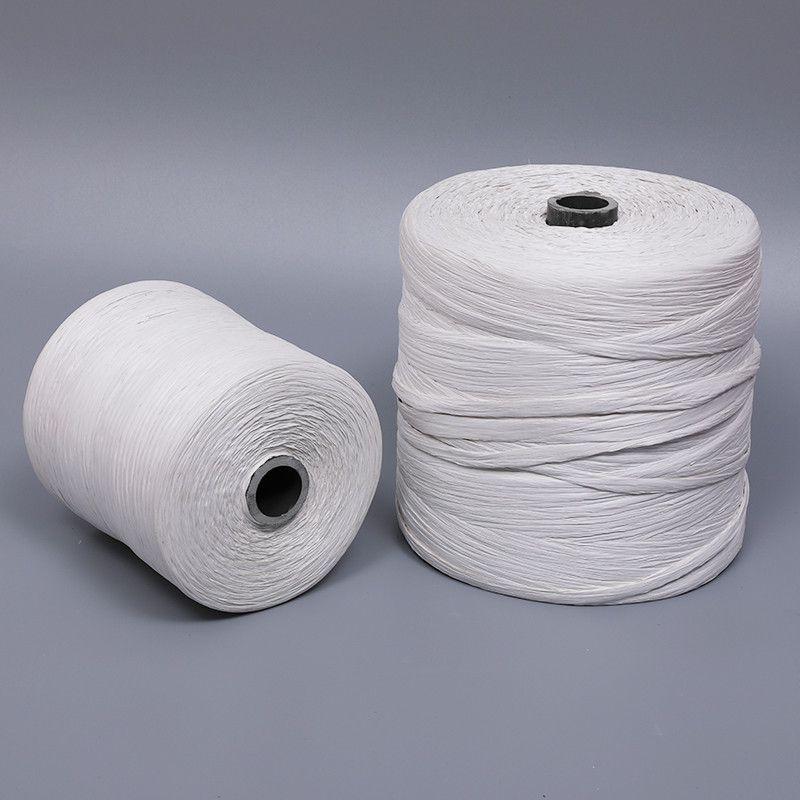

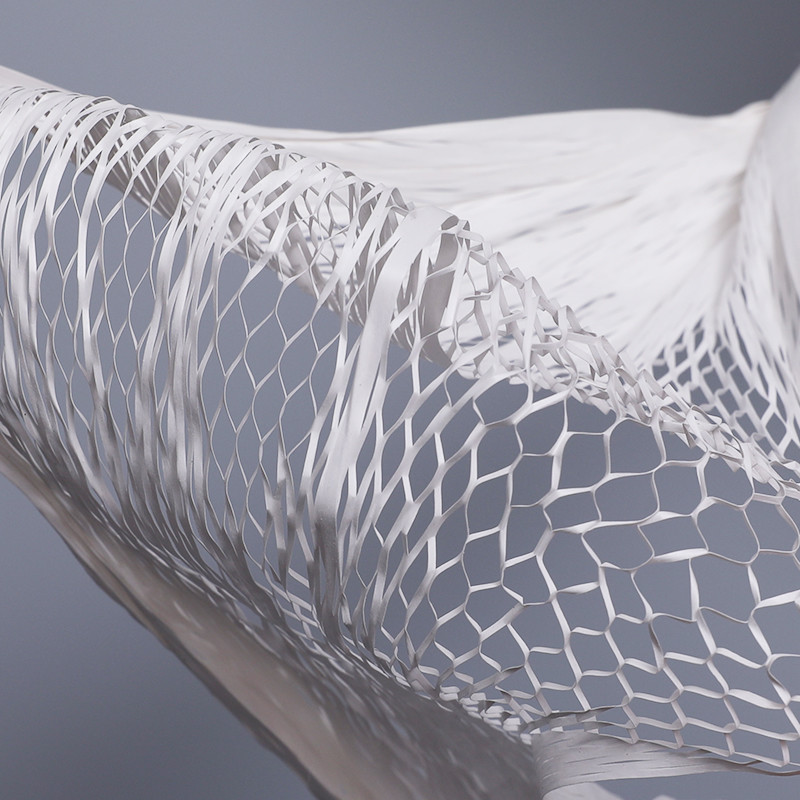

Product Detailes
Certifications
What we cooperated
Remarks:
1> MOQ 1000KG
2> Loading Capacity with pallet shipment: Appox 8000KG/20GP
3> Payment term: T/T,30% in advance,70% before shipment
4> Production time: about 25 workdays after receive deposit
