2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | 25kg/woven bag, pallet | Delivery Time : | 25-30days |
| Payment Terms : | L/C, T/T | Supply Ability : | 500T/month |
| Place of Origin: | Jiangxi, Ganzhou | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS,ISO,Reach,Rohs | Model Number: | PP Filler Yarn |
|
Detail Information |
|||
| Color: | Milky White/Transprant White/Light Blue/Black | Specification: | 2KD--1300KD |
|---|---|---|---|
| Twisted: | 4-10 TPM | Weight: | 5-50kg/roll |
| Package: | Woven Bag | Breaking Strength: | 2-3g/d |
| Hot Shrinkage Rate: | <6% | Breaking Elongation: | <20 |
| Tube: | ID 74mm And H 440mm Or Other | Material: | Virgin Pp + Caco3 / 100% Virgin Pp |
| Highlight: | 1300KD PP Cable Filler Yarn,Flame Retardant PP Cable Filler Yarn,2KD Flame Retardant Filler |
||
Product Description
Resistance To Acids, Alkalis And Mildew Fire Retardant PP Cable Filler Yarns Flame-Retardant Fillers
Fibrillated Twisted or Non twist Standard/Commen/LSHF FR polypropylene fillers for cable and wire
Jiangxi Longtai offers low smoke halogen free flame retardant polypropylene (PP) filler yarns to meet the different demand of your FR cables.
LSHF FR PP Filler is environmentally friendly flame retardant material, with light weight and excellent tensile strength. It can easily make the wire & cable round and smooth This material is halogen- and asbestos free.
Fiber optic cord and asbestos cord are mainly used for fire resistant cable filling marketing in the past 10 years. But they still have some disadvantages, such as usage and environmental protection issues. Considering this marketing request, we developed this low smoke zero halogen fire resistant filler.ol-28, with the advantages of environmental friendliness, low smoke and small proportion.
Flame retardant side wire, fiber glass fiber, asbestos rope the comparison of the three
The role of filler rope in flame-retardant cable components
1. Ensure that the cable has good roundness.
2. When the filling material has a higher oxygen index, it can improve the flame retardant level of the cable.
3. Make the relative position of the insulated cores in the cable stable.
4. It can increase the tensile strength of the cable.
Specification Data Sheet for reference
|
Linear Density |
12KD |
18KD |
30KD |
60KD |
90KD |
120KD | 195KD | 630KD | 880KD | 1130KD | 1630KD |
|
|
1.33 |
2 |
3.67 |
6.67 |
10 |
13.3 | 21.67 | 70 | 98 | 112 | 182 |
|
|
1.5 |
2 |
3 |
4 |
5 |
6 | 8 | 12 | 14 | 16 | 20 |
Different Types Data Sheet
| Item | Unit | Commen Filler | Standard Filler |
High Strength Filler/ LSZH FR Filler/ Submarine Filler |
| Breaking Strength | g/d | 0.2-0.6 | 0.6-1.4 | 1.4-3 |
| Breaking Elongation | % | ＜20 | ＜20 | ＜15 |
| Hot Shrinkage Rate | % | ≤6 | ≤4.5 | ≤3 |
| Weight per tube | KG | 6-40 | 2.5-40 | 2.5-40 |
| Oxygen Index | FR ≥28% | |||
| Advantage | Cheap price,suitable for large cable | Cheap price,suitable for large cable | Virgin PP material,best material property,suitable for optical cable,power able,submarine cable |
Package Tube sizes for choose or customzied
| Iner core(mm) | 28 | 38 | 38 | 54 | 76 | 76 | 90 |
| Core Length(mm) | 260 | 230 | 258 | 258 | 310 | 432 | 260 |

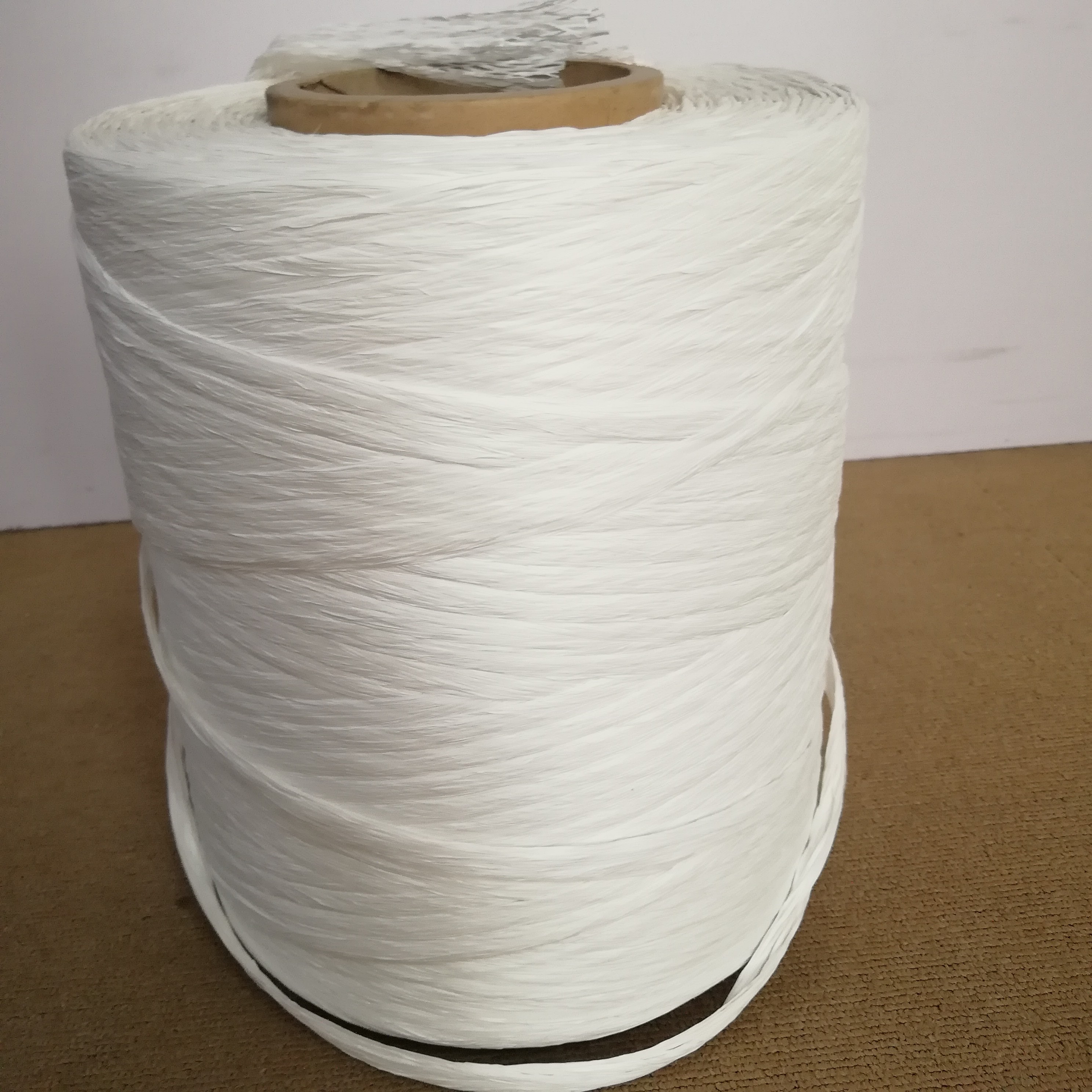

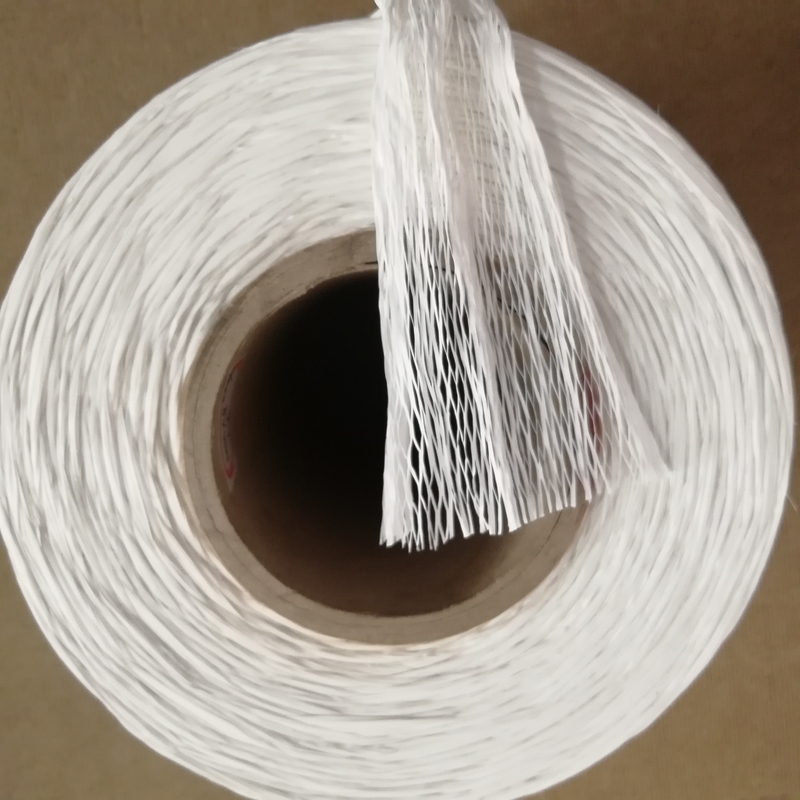

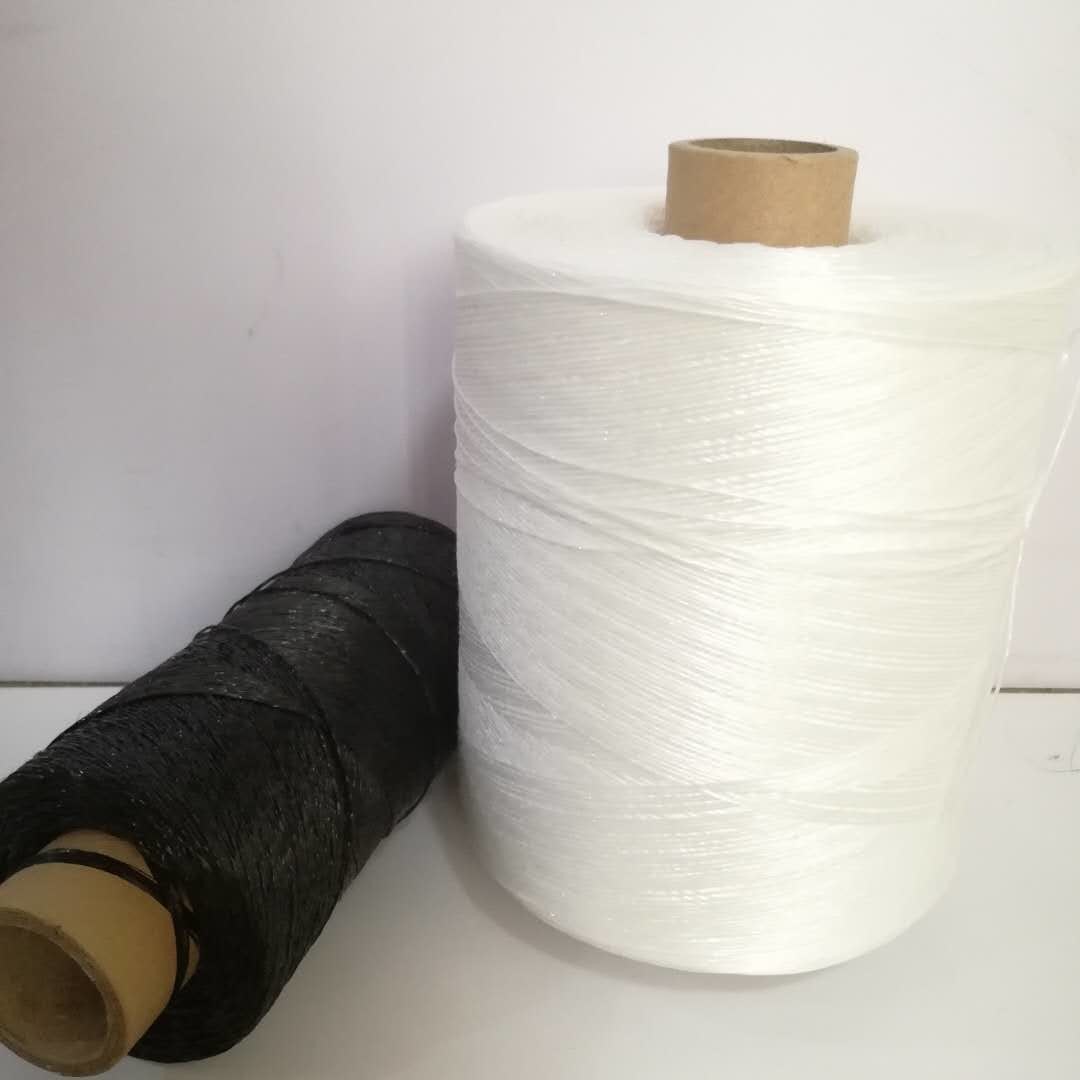

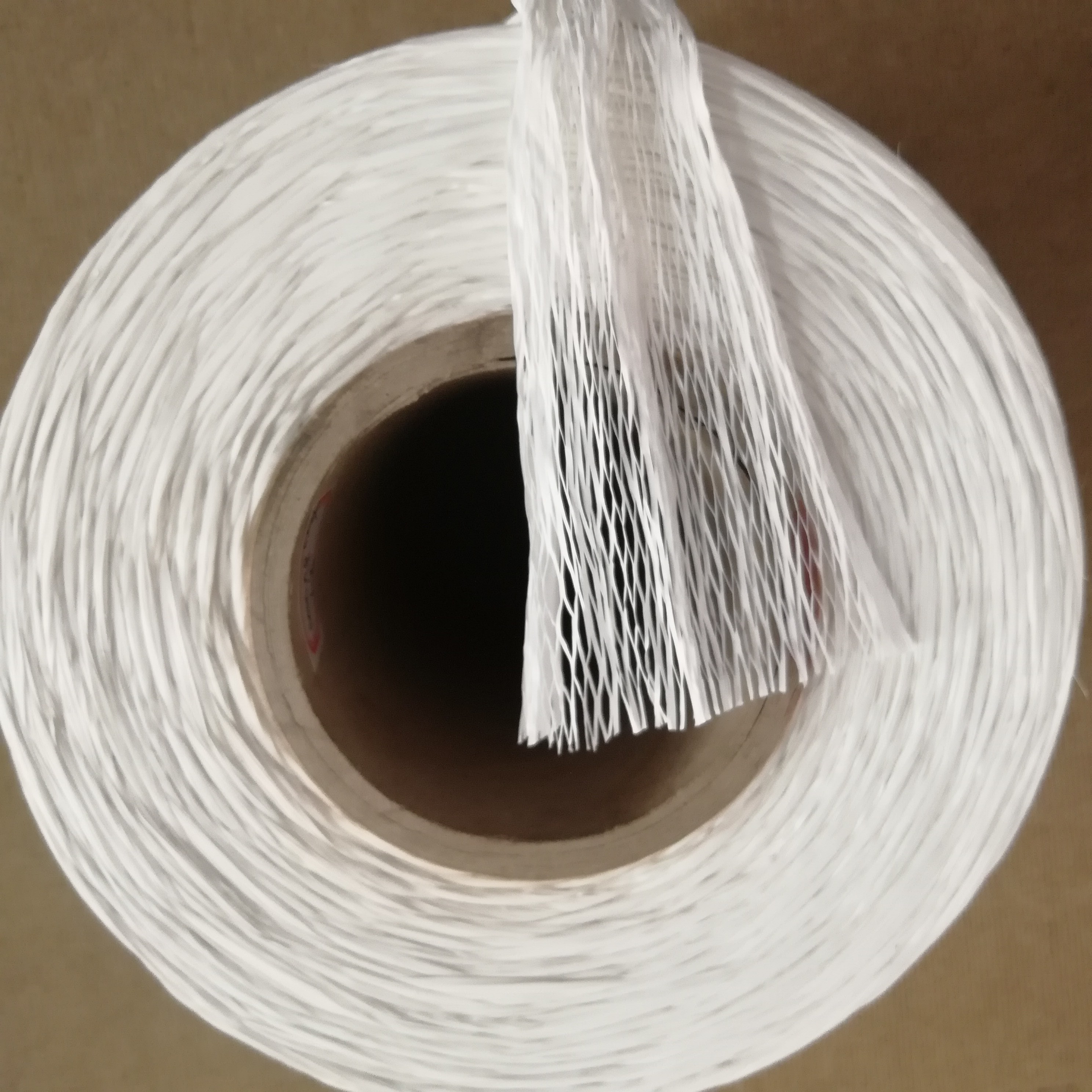

Package pictures for reference
Product Detailes
Certifications
What we cooperated
Remarks:
1> MOQ 1000KG
2> Loading Capacity with pallet shipment: Appox 8000KG/20GP
3> Payment term: T/T,30% in advance,70% before shipment
4> Production time: about 25 workdays after receive deposit
