2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | 25kg/woven bag, pallet | Delivery Time : | 25-30days |
| Payment Terms : | L/C, T/T | Supply Ability : | 500T/month |
| Place of Origin: | Jiangxi, Ganzhou | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS,ISO,Reach,Rohs | Model Number: | PP Filler Yarn |
|
Detail Information |
|||
| Color: | Milky White/Transprant White/Light Blue/Black | Specification: | 2KD--1300KD |
|---|---|---|---|
| Twisted: | 4-10 TPM | Weight: | 5-50kg/roll |
| Package: | Woven Bag | Breaking Strength: | 2-3g/d |
| Hot Shrinkage Rate: | <6% | Breaking Elongation: | <20 |
| Tube: | ID 74mm And H 440mm Or Other | Material: | Virgin Pp + Caco3 / 100% Virgin Pp |
| Highlight: | LSHF Cable PP Filler Yarn,XPLE Cable PP Filler Yarn,Non Twist PP Cable Filler Yarn |
||
Product Description
Fibrillated Twisted or Non twist Standard/Commen/LSHF FR polypropylene fillers for cable and wire
Jiangxi Longtai offers low smoke halogen free flame retardant polypropylene (PP) filler yarns to meet the different demand of your FR cables.
Relevant requirements for filling materials used in flame-retardant cables
1. The filling material should not absorb moisture.
2. The working temperature of the filling material should be the same as the working temperature of the cable.
3. The materials used for filling should have no pollution to the environment and no harm to the human body during the cable processing process.
4. The filling material should have a certain tensile strength and elongation
Specification Data Sheet for reference
|
Linear Density |
12KD |
18KD |
30KD |
60KD |
90KD |
120KD | 195KD | 630KD | 880KD | 1130KD | 1630KD |
|
|
1.33 |
2 |
3.67 |
6.67 |
10 |
13.3 | 21.67 | 70 | 98 | 112 | 182 |
|
|
1.5 |
2 |
3 |
4 |
5 |
6 | 8 | 12 | 14 | 16 | 20 |
Applications:
Flame retardant Polypropylene cable filler yarn widely used in Cable industry for Flame retardant cable and Halogen free cable filling use
Competitive Advantage:
High tenacity,High quality,Low smoke Halogen free flame retardant,AOI >28,low shrinkage,no knot packing, can be used for kinds of cable and wire.
Different Types Data Sheet
| Item | Unit | Commen Filler | Standard Filler |
High Strength Filler/ LSZH FR Filler/ Submarine Filler |
| Breaking Strength | g/d | 0.2-0.6 | 0.6-1.4 | 1.4-3 |
| Breaking Elongation | % | ＜20 | ＜20 | ＜15 |
| Hot Shrinkage Rate | % | ≤6 | ≤4.5 | ≤3 |
| Weight per tube | KG | 6-40 | 2.5-40 | 2.5-40 |
| Oxygen Index | FR ≥28% | |||
| Advantage | Cheap price,suitable for large cable | Cheap price,suitable for large cable | Virgin PP material,best material property,suitable for optical cable,power able,submarine cable |
Package Tube sizes for choose or customzied
| Iner core(mm) | 28 | 38 | 38 | 54 | 76 | 76 | 90 |
| Core Length(mm) | 260 | 230 | 258 | 258 | 310 | 432 | 260 |

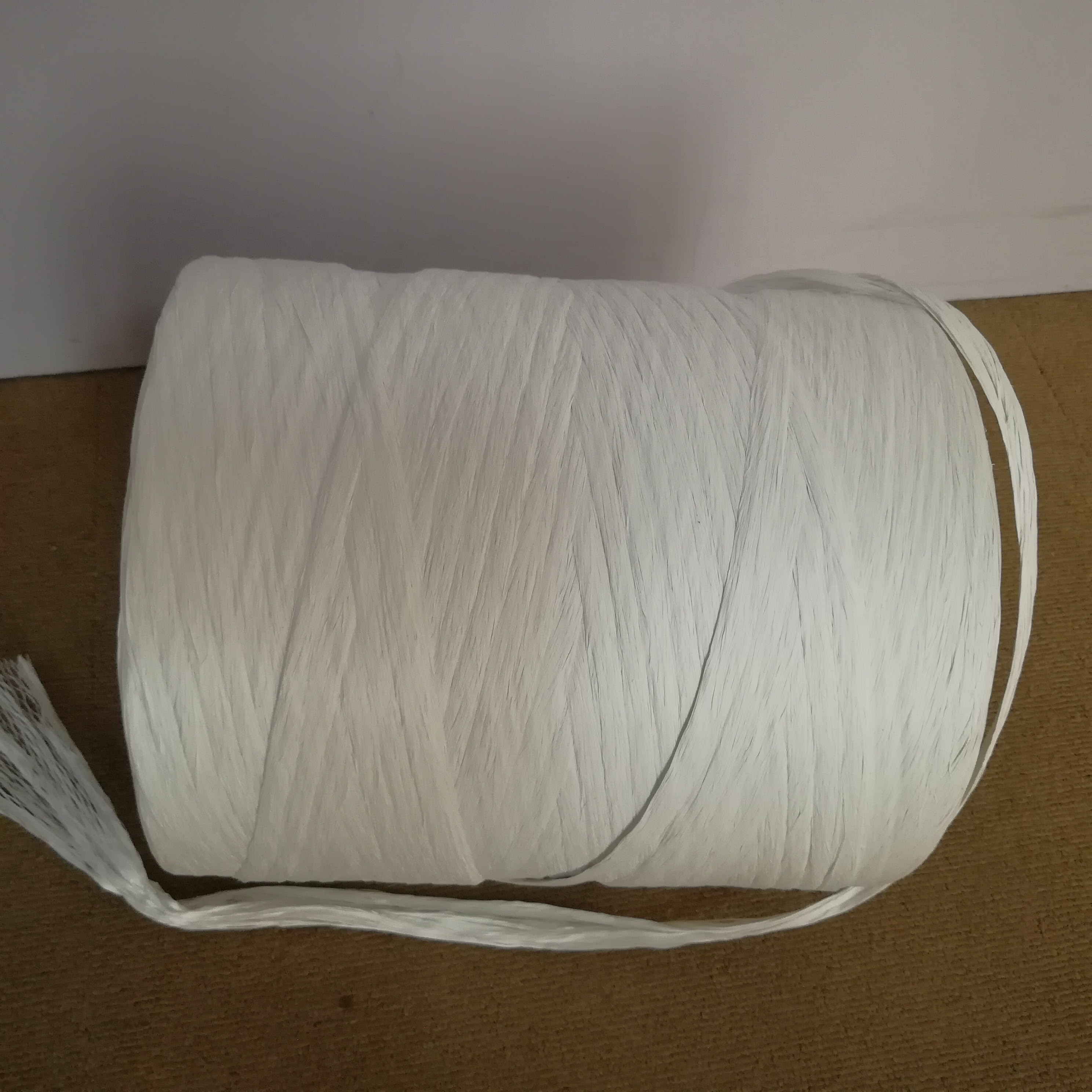

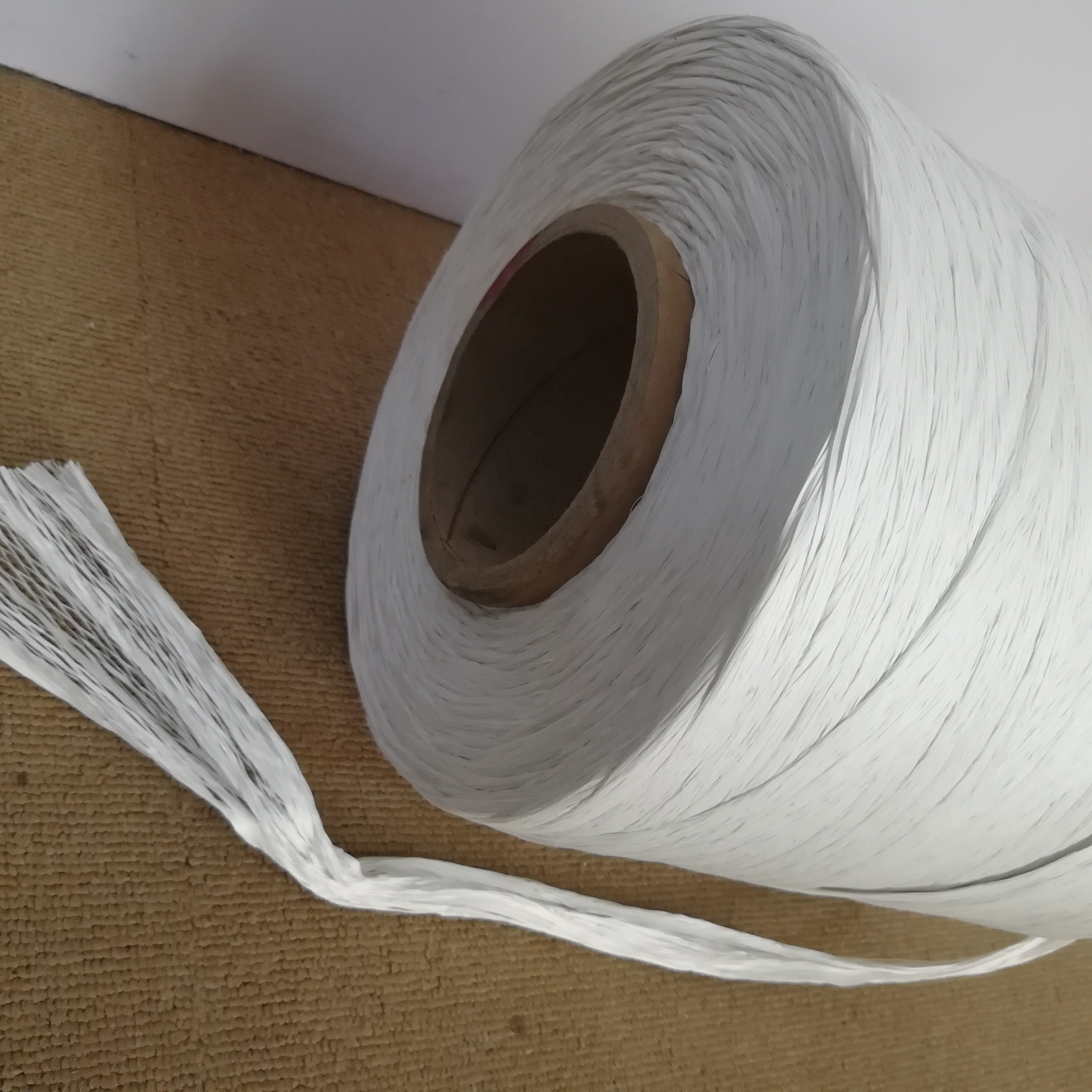

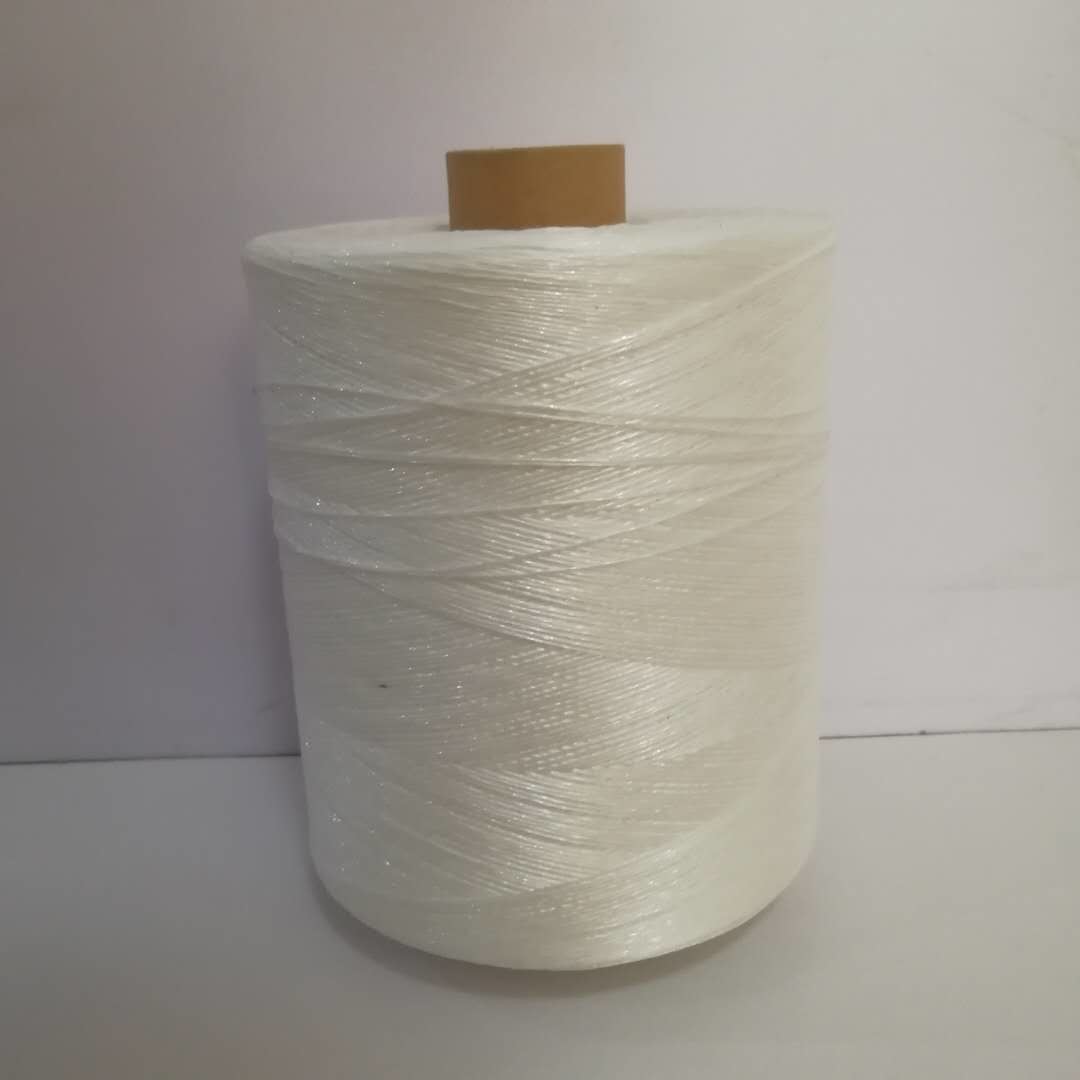

Package pictures for reference
Product Detailes
Certifications
What we cooperated
Remarks:
1> MOQ 1000KG
2> Loading Capacity with pallet shipment: Appox 8000KG/20GP
3> Payment term: T/T,30% in advance,70% before shipment
4> Production time: about 25 workdays after receive deposit
