2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | 25kg/woven bag, pallet | Delivery Time : | 25-30days |
| Payment Terms : | L/C, T/T | Supply Ability : | 500T/month |
| Place of Origin: | Jiangxi, Ganzhou | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS,ISO,Reach,Rohs | Model Number: | PP Filler Yarn |
|
Detail Information |
|||
| Color: | Milky White/Transprant White/Light Blue/Black | Specification: | 2KD--1300KD |
|---|---|---|---|
| Twisted: | 4-10 TPM | Weight: | 5-50kg/roll |
| Package: | Woven Bag | Breaking Strength: | 2-3g/d |
| Hot Shrinkage Rate: | <6% | Breaking Elongation: | <20 |
| Tube: | ID 74mm And H 440mm Or Other | Material: | Virgin Pp + Caco3 / 100% Virgin Pp |
| Highlight: | Fibrillated Polypropylene Filler Yarn,Fire Controlling Polypropylene Filler Yarn,Fire Controlling PP Filler Yarn |
||
Product Description
Fibrillated Twisted or Non twist Standard/Commen/LSHF FR polypropylene fillers for cable and wire
Jiangxi Longtai offers low smoke halogen free flame retardant polypropylene (PP) filler yarns to meet the different demand of your FR cables.
Flame retardant and high temperature resistant filler rope used as non-hygroscopic flame retardant material for cabling filler in flame-retardant power cable, flame-retardant mining cable, flame-retardant marine cable, flame-retardant silicone rubber cable, fire-resistant cable, fire(oxygen)-insulating layer cable and other cables requiring flame-retardant and high-temperature resistance. In particular, the performance is better in class A flame retardant medium-voltage power cable filling which does not occur oxidation when contact with copper tape.
The cable flame-retardant filling rope is suitable for filling flame-retardant cables, fire-resistant cables, halogen-free low-smoke flame-retardant cables, fire-proof (oxygen) layer cables, and low-halogen and low-smoke flame-retardant cables.
Specification Data Sheet for reference
|
Linear Density |
12KD |
18KD |
30KD |
60KD |
90KD |
120KD | 195KD | 630KD | 880KD | 1130KD | 1630KD |
|
|
1.33 |
2 |
3.67 |
6.67 |
10 |
13.3 | 21.67 | 70 | 98 | 112 | 182 |
|
|
1.5 |
2 |
3 |
4 |
5 |
6 | 8 | 12 | 14 | 16 | 20 |
Different Types Data Sheet
| Item | Unit | Commen Filler | Standard Filler |
High Strength Filler/ LSZH FR Filler/ Submarine Filler |
| Breaking Strength | g/d | 0.2-0.6 | 0.6-1.4 | 1.4-3 |
| Breaking Elongation | % | ＜20 | ＜20 | ＜15 |
| Hot Shrinkage Rate | % | ≤6 | ≤4.5 | ≤3 |
| Weight per tube | KG | 6-40 | 2.5-40 | 2.5-40 |
| Oxygen Index | FR ≥28% | |||
| Advantage | Cheap price,suitable for large cable | Cheap price,suitable for large cable | Virgin PP material,best material property,suitable for optical cable,power able,submarine cable |
Package Tube sizes for choose or customzied
| Iner core(mm) | 28 | 38 | 38 | 54 | 76 | 76 | 90 |
| Core Length(mm) | 260 | 230 | 258 | 258 | 310 | 432 | 260 |

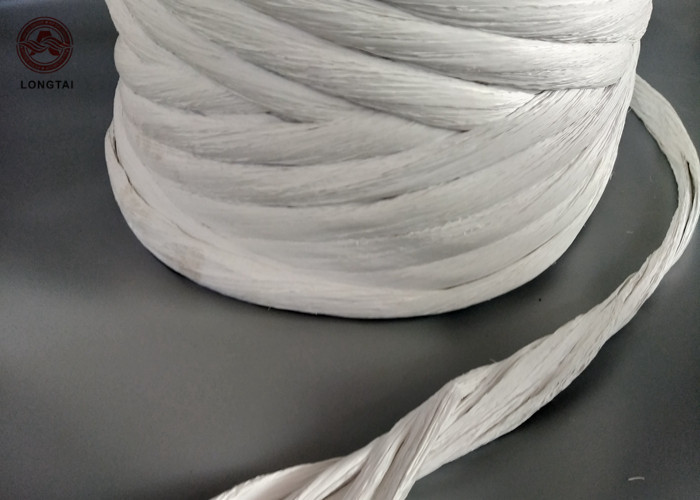

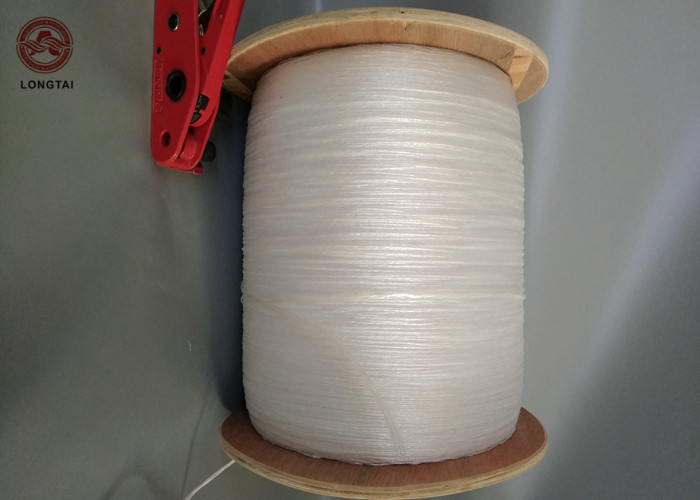

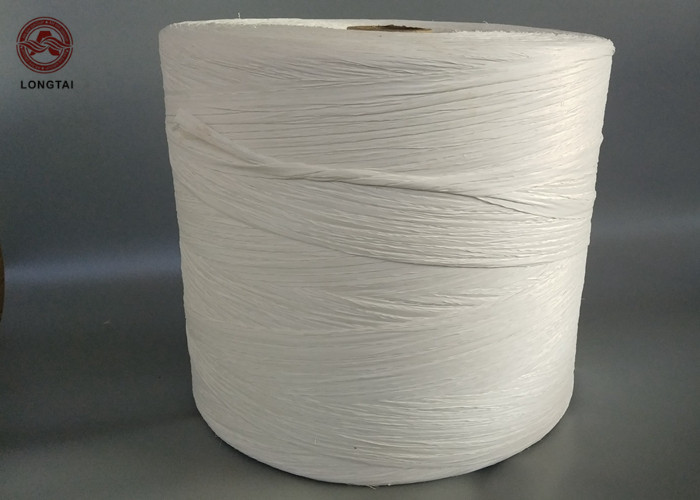

Package pictures for reference
Product Detailes
Certifications
What we cooperated
Remarks:
1> MOQ 1000KG
2> Loading Capacity with pallet shipment: Appox 8000KG/20GP
3> Payment term: T/T,30% in advance,70% before shipment
4> Production time: about 25 workdays after receive deposit
