M300 Cable Separating and Insulating films 0.00300″ (76µ) Polyester film
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 500KGS | Price : | FOB USD 3-5/KG |
|---|---|---|---|
| Packaging Details : | Carton Package | Delivery Time : | 2-3 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 100 tons per week |
| Place of Origin: | China | Certification: | Reach, Rohs, ISO 9001, ISO 14001 |
|---|
|
Detail Information |
|||
| Material: | Mica + Fiber Glass | Type: | Single Side |
|---|---|---|---|
| Application: | High Temperature | Feature: | High Temperature Resistance |
| Port: | Shenzhen | Packing: | Pad Or Tube |
| Size: | 0.08-0.14mm Thickness | Sample: | Available |
| Highlight: | 0.08mm Phlogopite Mica Tape,Single Side Mica Insulation Tape,0.14mm Phlogopite Mica Tape |
||
Product Description
Product Description:
with high quality gold mica paper, synthetic mica paper as basic material, glass fiber or carbon-free polymer film (PE) as single-sided or double-sided reinforcement materials, adhesive with silicone resin, through baking, drying and slitting. Mica tape mainly used in fire-resistant cables between core and outer, play a role in resisting and insulating.
Application:
Mica Tape for Fire-resistant Cables has excellent heat resistance and flame resistance properties, mica tape has good flexibility normally, and suitable for main fire-resistant insulation with all kinds of fire-resistant wires and cables.
Main specification:
| Type | Thickness (±0.015 mm) | Nominal weight (g/m2) | Mica Content (g) | Glass Fiber Content (g) | Bond Content (g) | Dielectric strength (kv/layer) | Tensile strength (N/cm) (≥) | Temperature Resistant (≥) |
| Single Side Phlogopite | 0.08 | 127±11 | 80±5 | 24±3 | 13±3 | >1.0 | >120 | 750~850 |
| 0.11 | 148±11 | 100±5 | 32±3 | 16±3 | >1.2 | >150 | 750~850 | |
| 0.125 | 172±11 | 120±5 | 32±3 | 20±3 | >1.2 | >150 | 750~850 | |
| 0.14 | 216±14 | 160±8 | 32±3 | 24±3 | >1.4 | >150 | 750~850 |
Thickness: 0.11, 0.12, 0.125, 0.13, 0.14mm
Width: 5, 6, 7, 8, 10, 15, 20, 330, 500mm, 1000mm
ID: 76mm, OD: 300mm, 400mm, 500mm, 600mm……
Other Type Single Side Mica Tape:
Phlogopite mica tape, Synthetic mica tape, Calcined mica tape

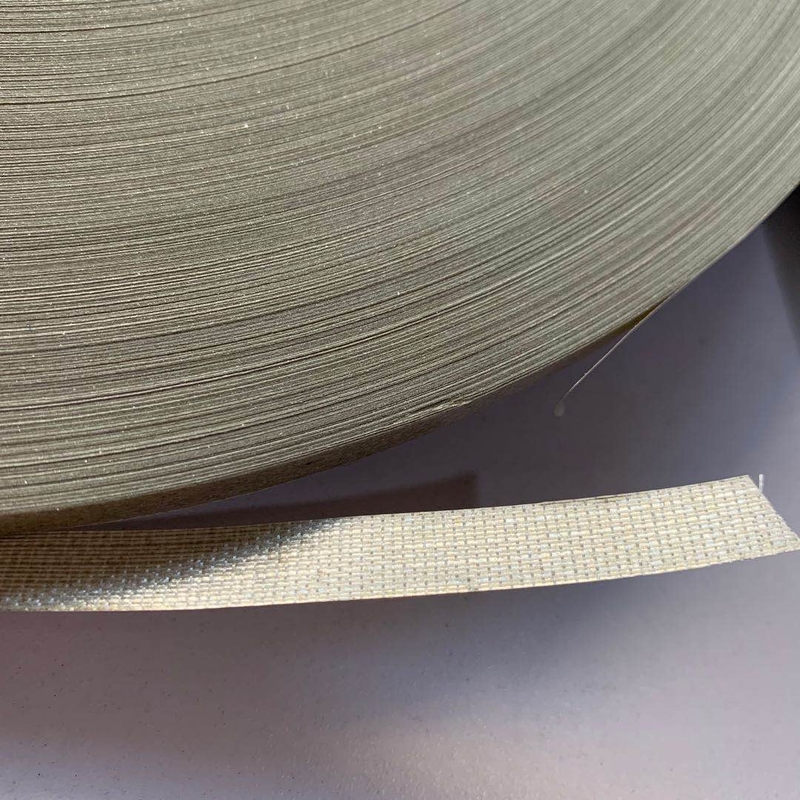

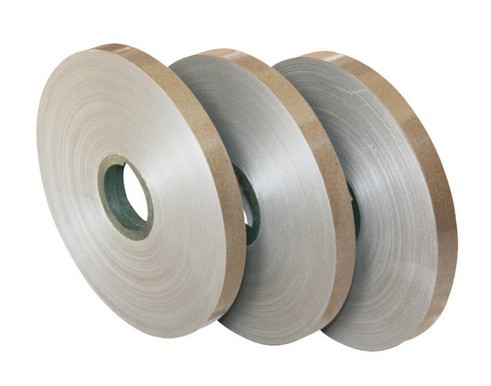

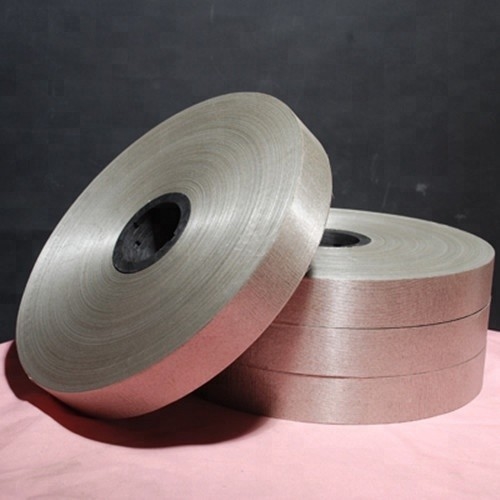

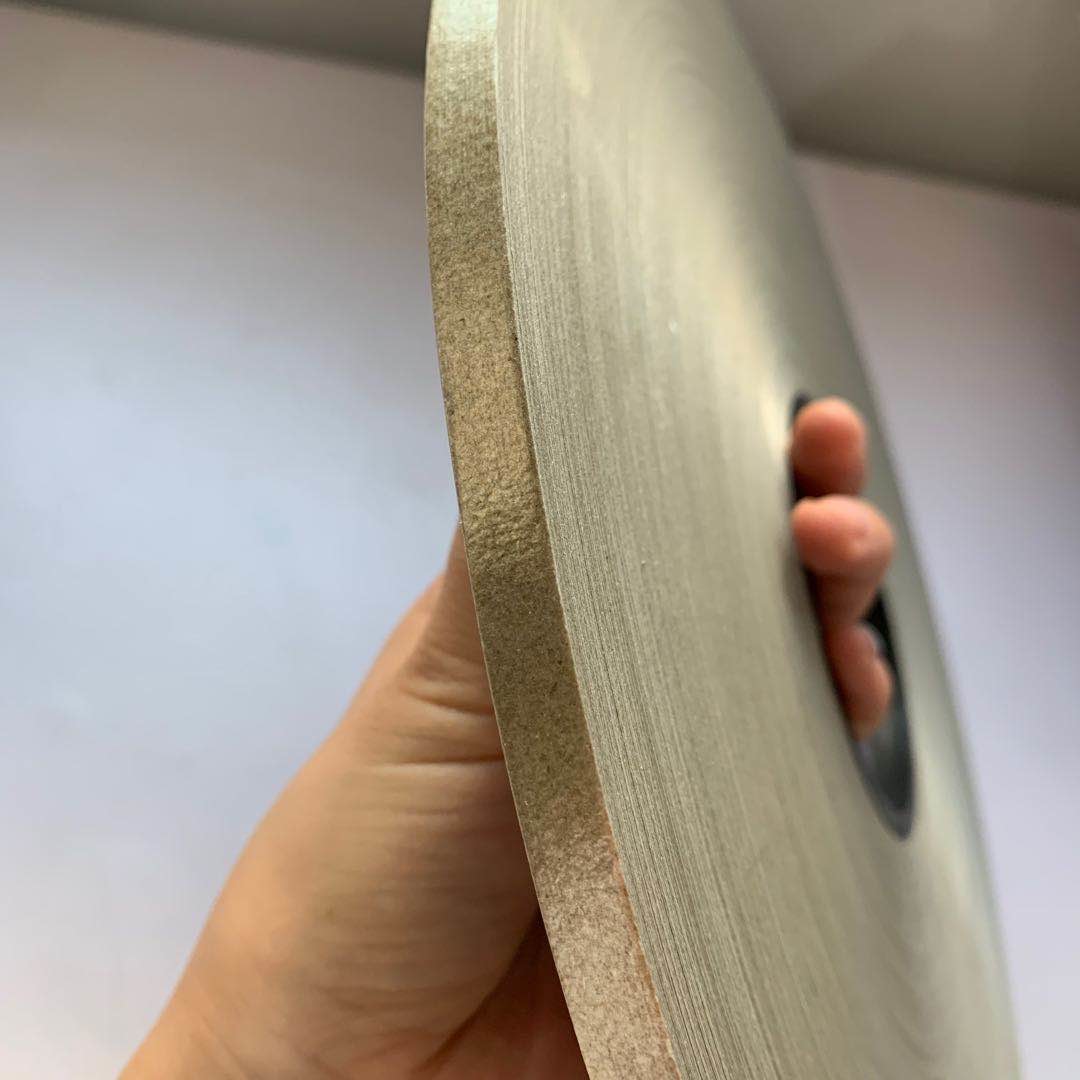

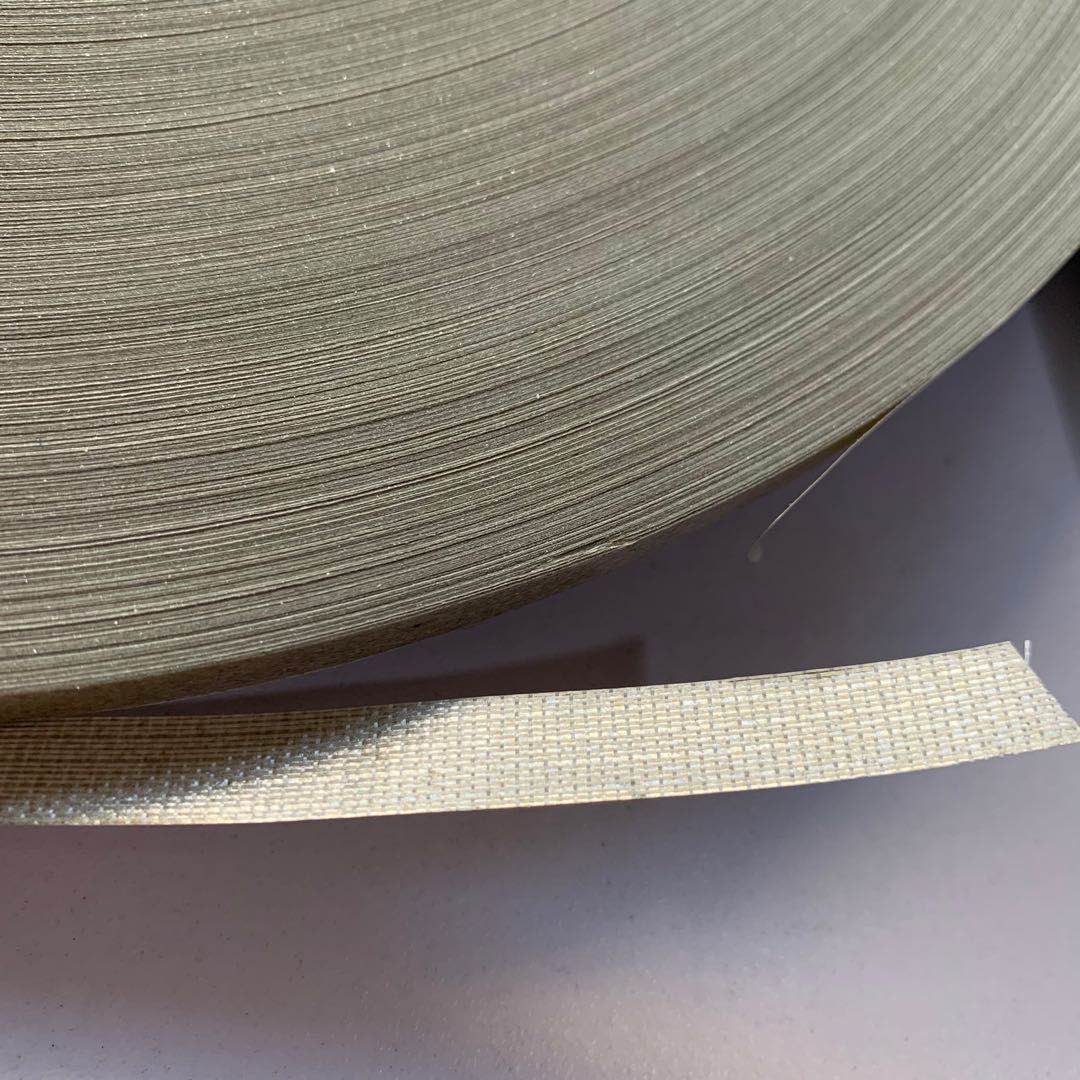

Product Show:
How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
FAQ:
Q: Do you provide samples? Is it free?
A: Free sample is accepted within 1kg if in stock but freight collected.
Q: What is your delivery time?
A: 3-7 days for sample order and 15-30 days after receiving deposit for bulk order.
Q: What’s the MOQ?
A: Most MOQ is 1000kg, parts of product is 100kg.
Q: What is your payment terms?
A: T/T, L/C, western Union are available.
Shipping instructions :
We will ensure that the goods are not damaged during delivery. Before shipment, we will arrange for the customer to conduct a video inspection to ensure that there is no problem and the goods will leave to ensure that everything is safe during transportation. We will also track the process in real time.
Any questions, please do not hesitate to contact us.
Ms.Ella
Wechat: +86 15737962799
Email: twinerope@longtai168.com
Whatsapp: +86 13528686612
Enter Your Message
