56Dtex/24F High Tensile Filling In The Wire And Cable Liquid Crystalline Polyester Filament Zxion
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
Minimum Order Quantity : | 1000 kgs | Price : | negotiable |
---|---|---|---|
Packaging Details : | 5kg/roll, 30kg/roll, 45kg/roll | Delivery Time : | 25--30 days |
Payment Terms : | T/T, L/C | Supply Ability : | 500 tons per month |
Place of Origin: | Jiangxi, China | Brand Name: | Longtai, ANAN |
---|---|---|---|
Certification: | REACH, ROHS | Model Number: | LTNM01 |
Detail Information |
|||
Advantage: | Good Effect Of Cable Filling, Suitable For Large Cable | Breaking Strength: | 0.2-1.4g/d |
---|---|---|---|
Breaking Elongation: | <20% | Hot Shrinkage Rate: | 4.5-6% |
Specification: | 9000D -- 130KD | Color: | White |
Highlight: | High Tensile Strength Cable Filler Yarn,9000D Cable Filler Yarn,High Tensile Strength PP Fibrillated Yarn |
Product Description

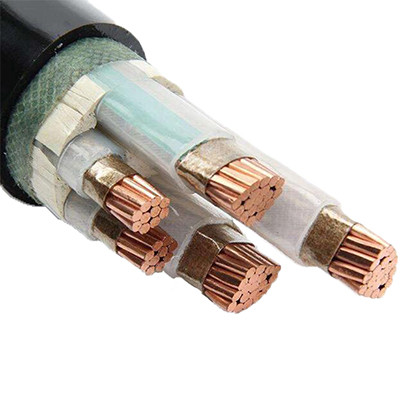

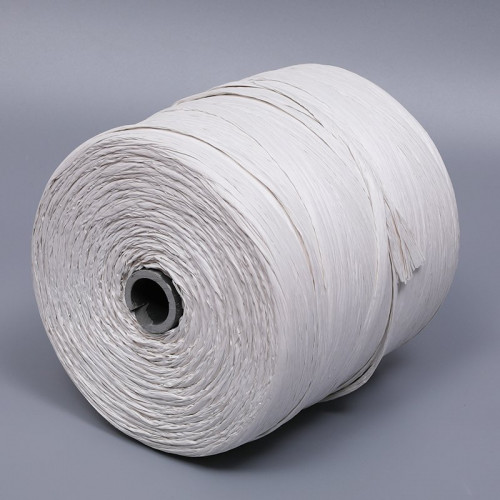

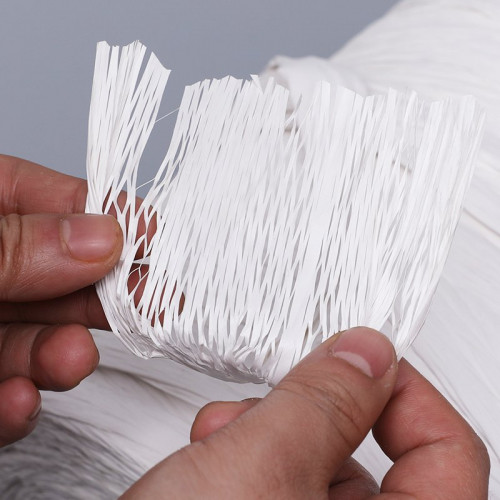

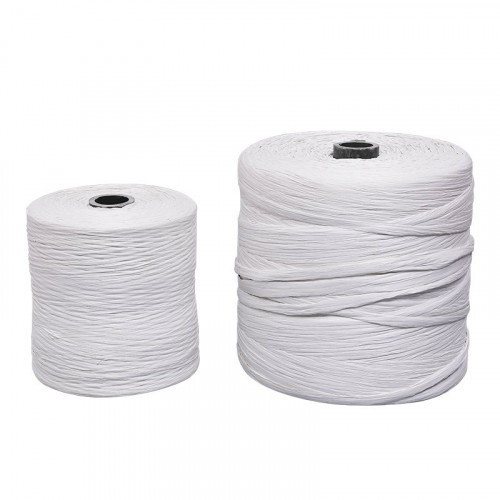

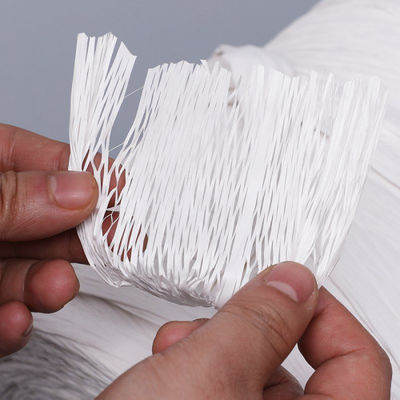

FIBER PP Filler Yarn is made of polypropylene. with high tensile strength and uniform distribution of net, it can be used for filling in cables.
In a wide range of denier from 2000D to 1935KD, widely used in wire and cable. These are sold in unwrapped rolls, rolled on a paper core and can be worked and continued along their entire length.
Standard and Large PP Cable Filer Yarn
Item | Unit | Spec of standard filler | Spec of common filler |
Linear Density | D | +/-10% | +/-10% |
Breaking strength | g/D | 0.6--1.4 | 0.2--0.6 |
Breaking elongation | % | <20 | <20 |
Hot shrinkage rate | % | 4.5 | 6 |
Specification data sheet for reference:
Density | 9KD | 18KD | 30KD | 60KD | 90KD | 120KD | 195KD | 630KD | 1130KD | 1630KD | 1935KD |
g/m+/-10% | 1g/m | 2g/m | 3.67g/m | 6.67g/m | 10g/m | 13.3g/m | 21.67g/m | 70g/m | 112g/m | 182g/m | 215g/m |
Diameter | 1mm | 2mm | 3mm | 4mm | 5mm | 6mm | 8mm | 12mm | 16mm | 20mm | 33mm |
Standard Filler Advantage:
A. The best price of good quality
B. Excellent service and fast delivery
C. Effective and attractive packaging
Normal Grade is suitable for large cables and is low in price. It is used for example in power cables, aerial cables, rubber cables, etc.
Common Filler Advantage:
cheap price, suitable for large cable
High Grade is suitable for all kinds of cables with a lower unit weight and reasonable price, no joint inside.
Specifications:
1. 100% pp filler yarn or PP + Coca3 for wire and cable
2. ROHs/REACH Standard;
3. have patent
4. for wire cable filling
5. certificate: ISO 9001 by AF
PP filler material:
pp rope Specificatioms | ||||
pp rope Item | Unit | pp rope standard | Remark | |
Fineness | D | specification±8% | 3000D-1136000D | |
pp rope Breaking | g/d | >1.5-2.5 | ||
pp rope tenacity | ||||
Tensibility | % | <20 | ||
shrinkage | % | <10 | 120*30min | |
in hot air | ||||
Appearance | Natural Color or White,color | |||
obvious stations | |
Our Services:
A variety of products
Enough stock
Fast delivery time
Specifications can be customized
24 hours service
Prompt reply
Small orders are accepted
Perfect after-sale service
Why chooose us :
1. We have more than 15 years’ production experience and
more than 7 years exporting experience
2. A full set of advanced facilities and a team of skilled tech
workers
3. Factory direct sales with competitive price
4. Best materials selection and strict quality control
5. Considerate service, prompt delivery, each inquiry will be
consulted very carefully
6. A professional and excellent working team
