Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling
Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling
Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling
Contact Now

Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling

Minimum Order Quantity : 1000KGS Price : US$0.72-1.2/kg
Packaging Details : pack the pp cable filler yarn in paper tubes or spools. each tube or spool in poly bag, carton and woven bag or outer package Delivery Time : 3-4 weeks
Payment Terms : L/C, T/T Supply Ability : 800 TONS/Month
Place of Origin: China Brand Name: Jiangxi Longtai
Certification: ISO 9001, Reach, Rohs Model Number: PP Filler Yarn

Detail Information
Yarn Type: PP Split Yarn For Cable Filler Feature: PP Filler Yarn For Cable
Strength: 0.2g/D-3.0g/D Material: PP+CaCo3
Twist: Twist Or Nontwist PP Filler Yarn Color: White,Any Color Is Possible
Application: Industrial,Wire And Cable Key Word: Polypropylene Yarn
Highlight:

Electrical Cable PP Filler Yarn

,

PP Split Filler Yarn

,

Untwisted PP Filler

Product Description





Reach Cable Filling PP Split Filler Yarn 210000 Dainer Untwisted PP filler rope for Electrical Cable





PP Cable Filler Description:



Our Cable filler yarn is manufactured with high precision and industry-wide known manufacturing standards. So that uniform consistency is ensured to meet the unique cable needs of our customers.



PP filler rope is made of drawing-grade polypropylene as raw material, through extrusion molding, and then laminating and opening the net to produce a netted tearing fibre, which can be twisted or untwisted.



In the cable production process, in order to make the cable core round, improve the cable appearance quality, and increase the cable tensile properties, the gap of the cable core needs to be filled, therefore the PP filler rope is the most commonly used non-hygroscopic filling material for cable.





PP Cable Filler Yarn Specification:



Item Unit Spec of standard filler Spec of common filler
Linear Density D +/-10% +/-10%
Breaking strength g/D 0.6--1.4 0.2--0.6
Breaking elongation % <20 <20
Hot shrinkage rate % 4.5 6





Linear Density 9KD 18KD 30KD 60KD 90KD 120KD 630KD 1130KD 1630KD
Size g/m ±10% 1g/m 2g/m 3.67g/m 6.67g/m 10g/m 13.3g/m 70g/m 112g/m 182g/m
Diameter 1mm 2mm 3mm 4mm 5mm 6mm 12mm 16mm 20mm

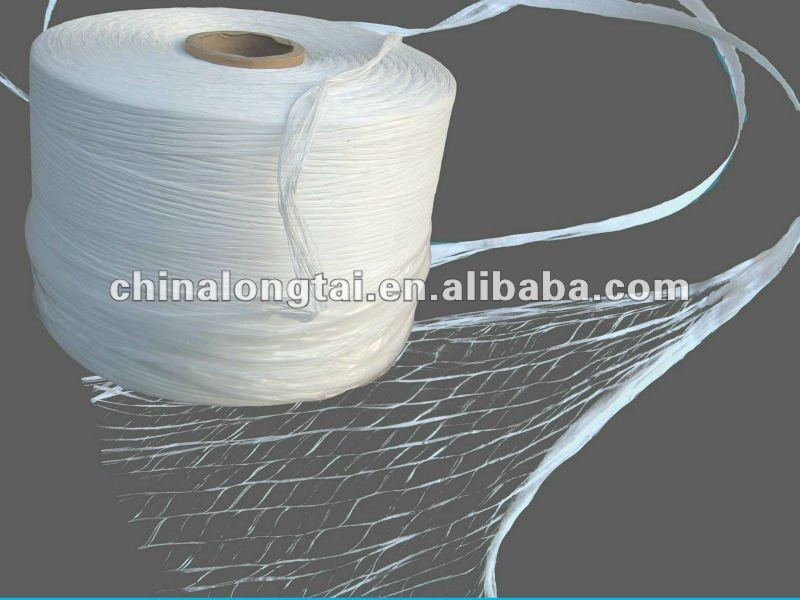

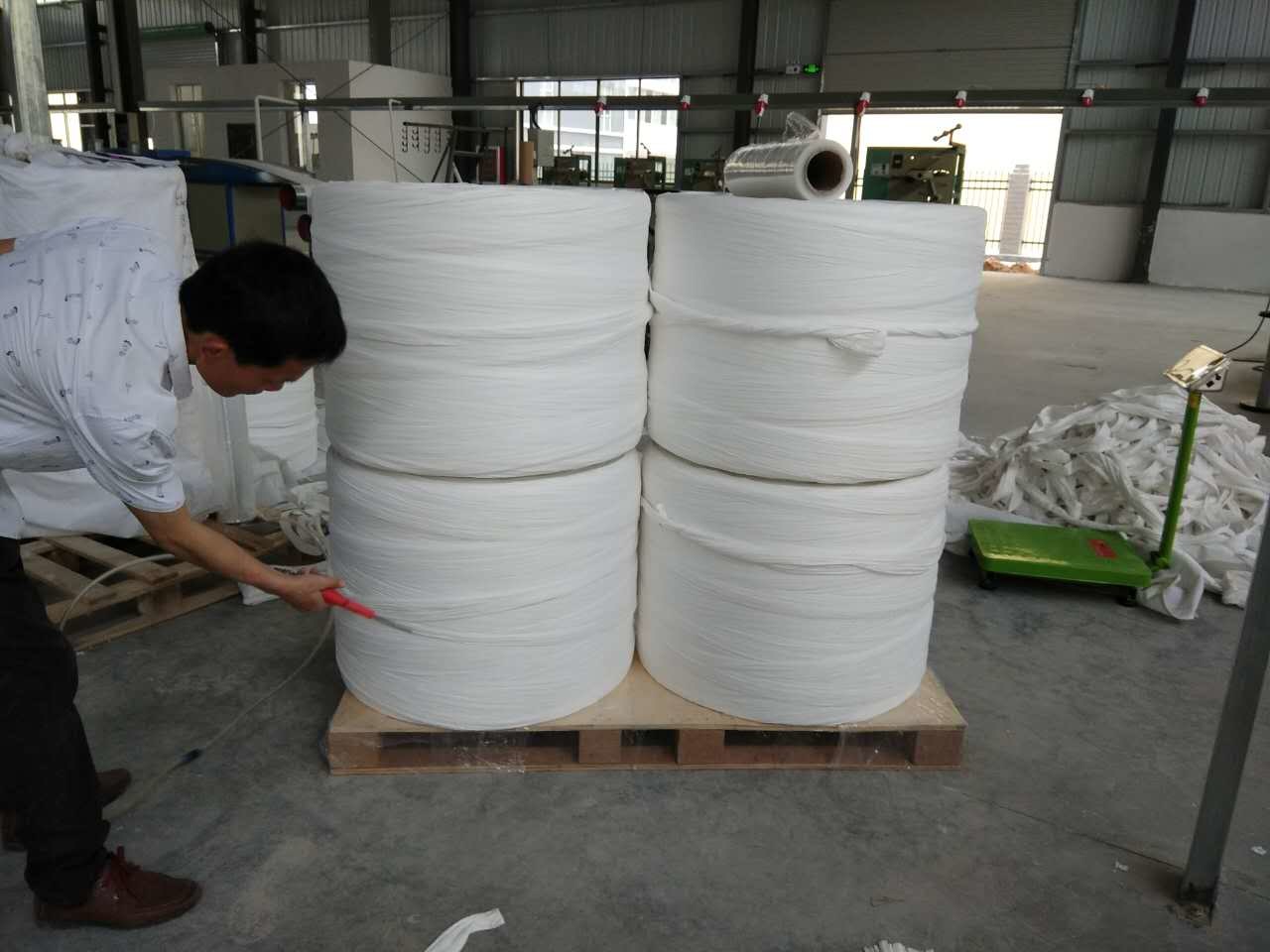

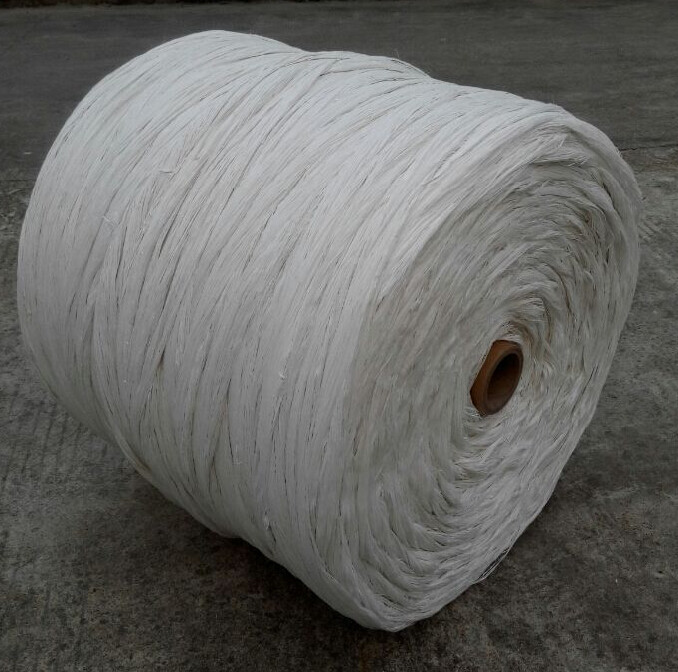

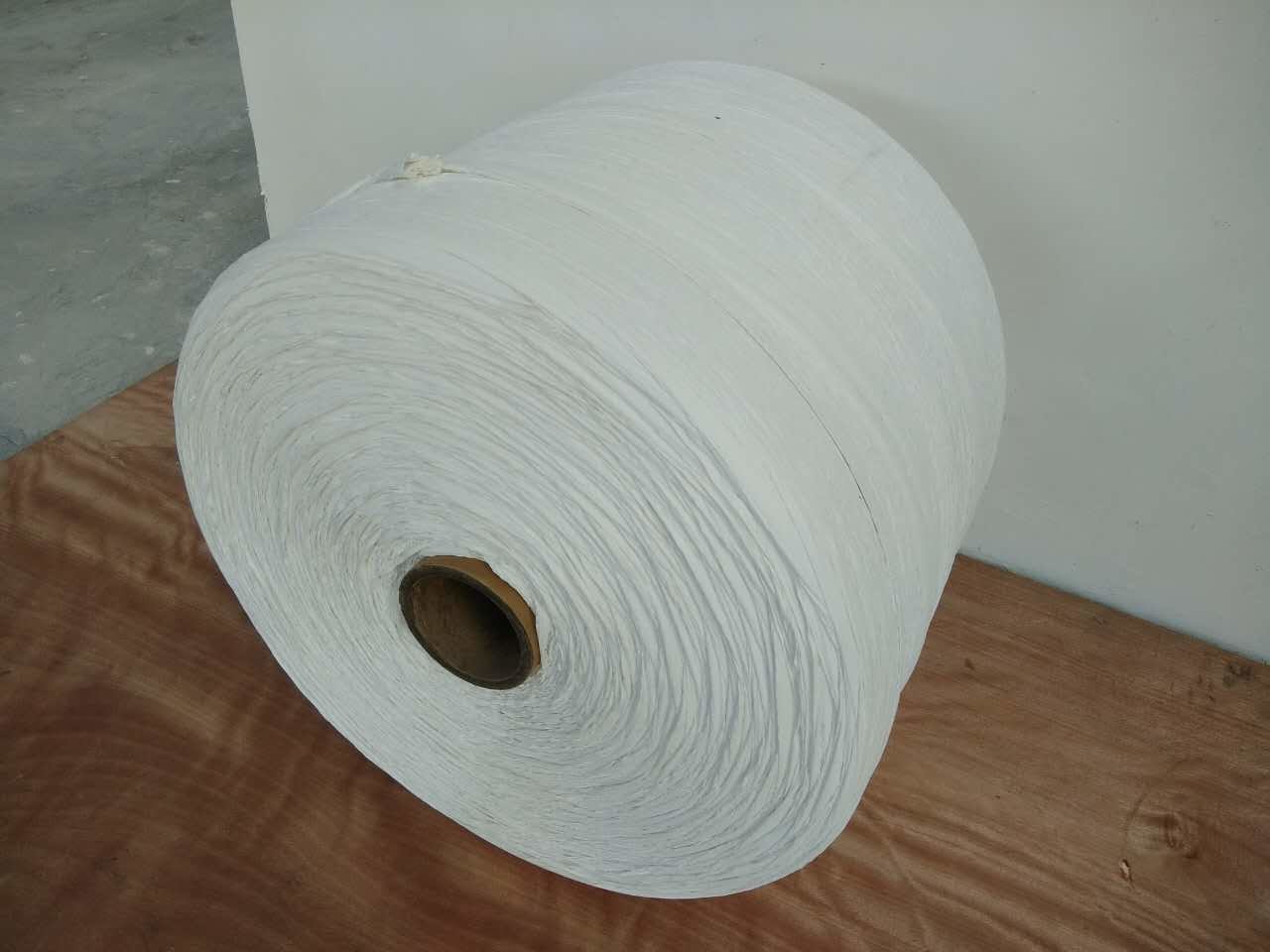

PP Cable Filler Yarn Pictures:



Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 0Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 1Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 2Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 3



The advantage of PP cable filler yarn is as below:



  • Excellent flexibility,ensure the cable stablility and keep the cable round
  • Non-absorbent material keep the high tensile strength
  • Acid and alkali resistance.
  • High insulation performance
  • High voltage resistance, environment friendly



PP Cable Filler Yarn Application:



  • Normal Grade is suitable for large cables and is low in price. It is used for example in power cables, aerial cables, rubber cables, etc.
  • High Grade is suitable for all kinds of cables with a lower unit weight and reasonable price, no joint inside.
  • Super Grade is made by 100% virgin PP and has an excellent tensile strength, no joint. The original color is transparent but we can offer it in different colors.
  • Super Grade Twisted is made by 100% virgin PP and has the best tensile strength - without joint. Due to the twisting, it has the accurate diameter and can easily make the cable round and smooth. The original color is transparent but we can also offer it in different colors. It’s suitable for all kinds of cables especially submarine cables and elevator cables.



Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 4

PP Cable Filler Yarn Package:



We pack the pp cable filler yarn in paper tubes or spools. each tube or spool in poly bag, carton and woven bag or outer package.



PP Cable Filler Yarn Tube size :



Iner core(mm) 90 80 76 54 38 28
Core Length(mm) 258/432 306 306/432 258 230/258 260



Remark: Other tube size could be customzied



Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 5Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 6

Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 7Reach PP Split Filler Yarn 210000 Dainer Untwisted For Electrical Cable Filling 8
