56Dtex/24F High Tensile Filling In The Wire And Cable Liquid Crystalline Polyester Filament Zxion
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000KGS | Price : | US$0.72-1.2/kg |
|---|---|---|---|
| Packaging Details : | pack the pp cable filler yarn in paper tubes or spools. each tube or spool in poly bag, carton and woven bag or outer package | Delivery Time : | 3-4 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 TONS/Month |
| Place of Origin: | China | Brand Name: | Jiangxi Longtai |
|---|---|---|---|
| Certification: | ISO 9001, Reach, Rohs | Model Number: | PP Filler Yarn |
|
Detail Information |
|||
| Yarn Type: | PP Split Yarn For Cable Filler | Feature: | PP Filler Yarn For Cable |
|---|---|---|---|
| Strength: | 0.2g/D-3.0g/D | Material: | PP+CaCo3 |
| Twist: | Twist Or Nontwist PP Filler Yarn | Color: | White,Any Color Is Possible |
| Application: | Industrial,Wire And Cable | Key Word: | Polypropylene Yarn |
| Highlight: | Low Smoke PP Filler,Halogen Free PP Filler,85000 Dainer PP Filler Yarn |
||
Product Description
PP Cable Filler Description:
PP filler rope has good chemical stability, high mechanical strength, soft and elastic, non-hygroscopic and other excellent performance, will not rot during long-term filling in the cable, which is suitable for filling the gap of various types of cable cores. It does not slip during the filling process and is filled round.
Jiangxi Longtai is a China leading manufacturer and supplier of PP cable filler yarn for cable and wire manufacturer all over the world.
Longtai PP cable filler yarn is produced from 100% virgin polypropylene material or with CaCo3.
Longtai PP Cable filler yarn is produced with strict precision and high manufacturing standards. The whole production process from raw materials purchasing to finished yarn are under complete control.
Longtai always exceed cable manufacturer’s strict requirement and high expectation.
PP Cable Filler Yarn Specification:
| Item | Unit | Spec of standard filler | Spec of common filler |
| Linear Density | D | +/-10% | +/-10% |
| Breaking strength | g/D | 0.6--1.4 | 0.2--0.6 |
| Breaking elongation | % | <20 | <20 |
| Hot shrinkage rate | % | 4.5 | 6 |
| Linear Density | 9KD | 18KD | 30KD | 60KD | 90KD | 120KD | 630KD | 1130KD | 1630KD |
| Size g/m ±10% | 1g/m | 2g/m | 3.67g/m | 6.67g/m | 10g/m | 13.3g/m | 70g/m | 112g/m | 182g/m |
| Diameter | 1mm | 2mm | 3mm | 4mm | 5mm | 6mm | 12mm | 16mm | 20mm |

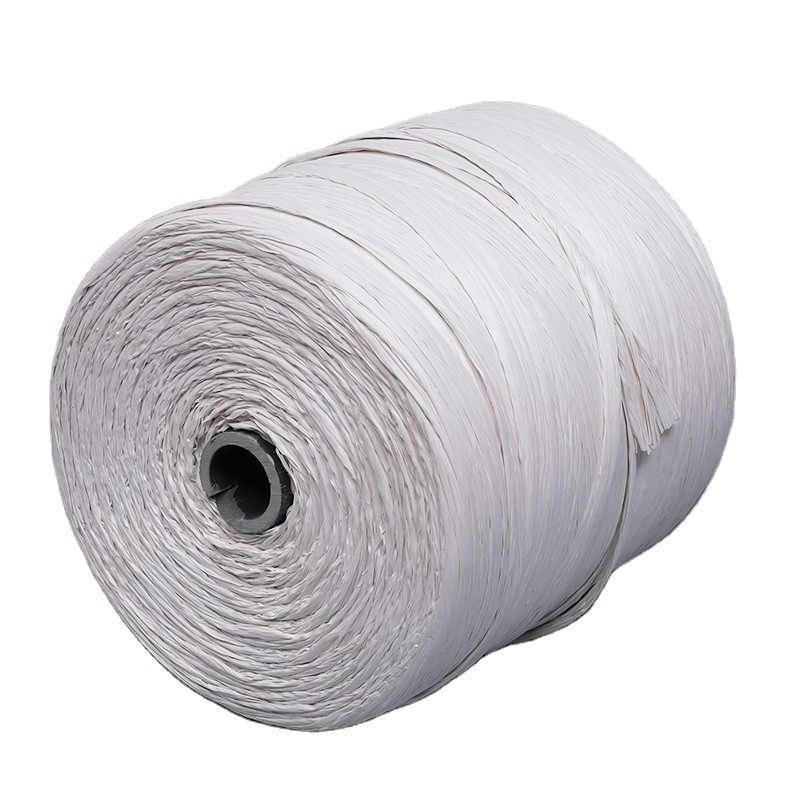

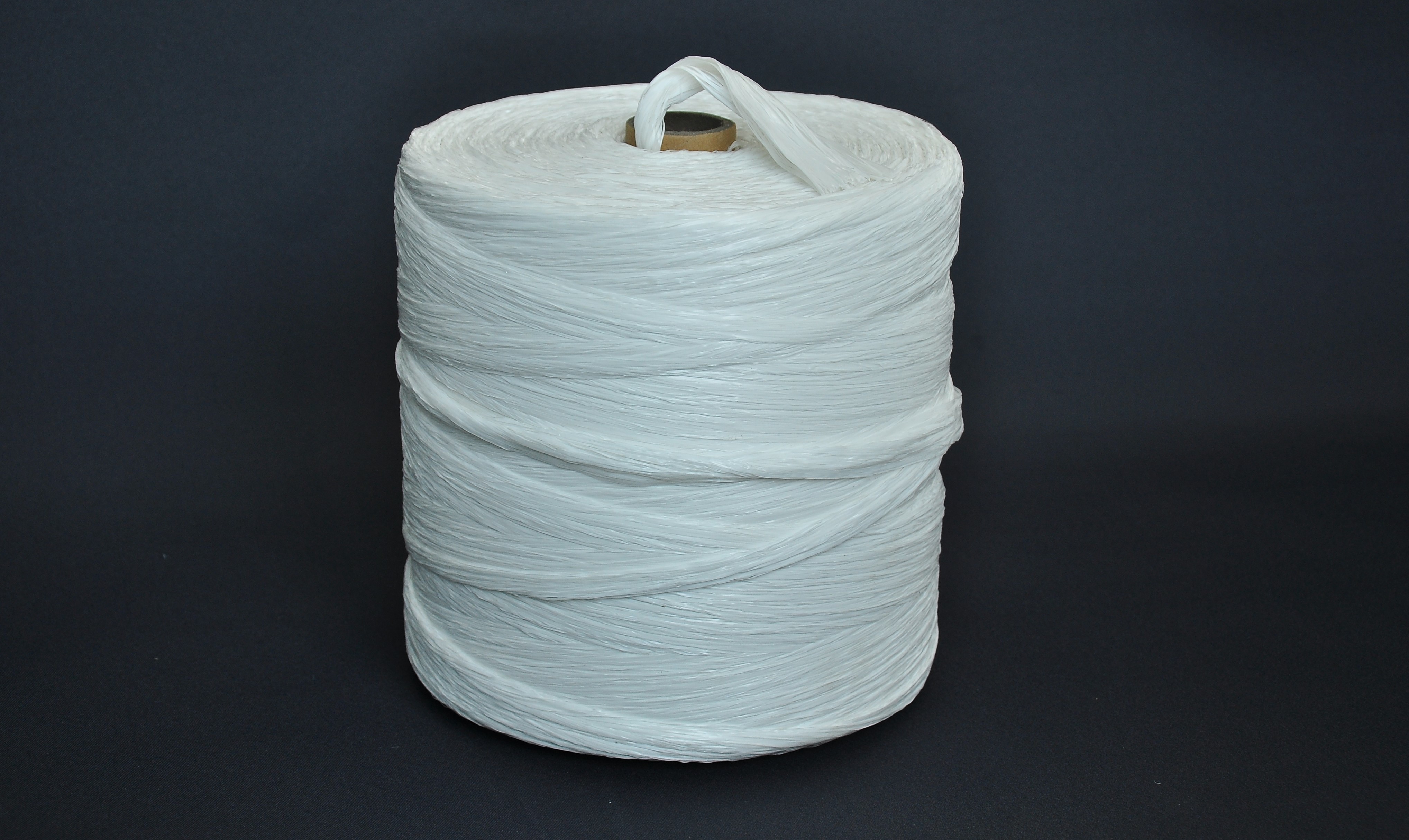

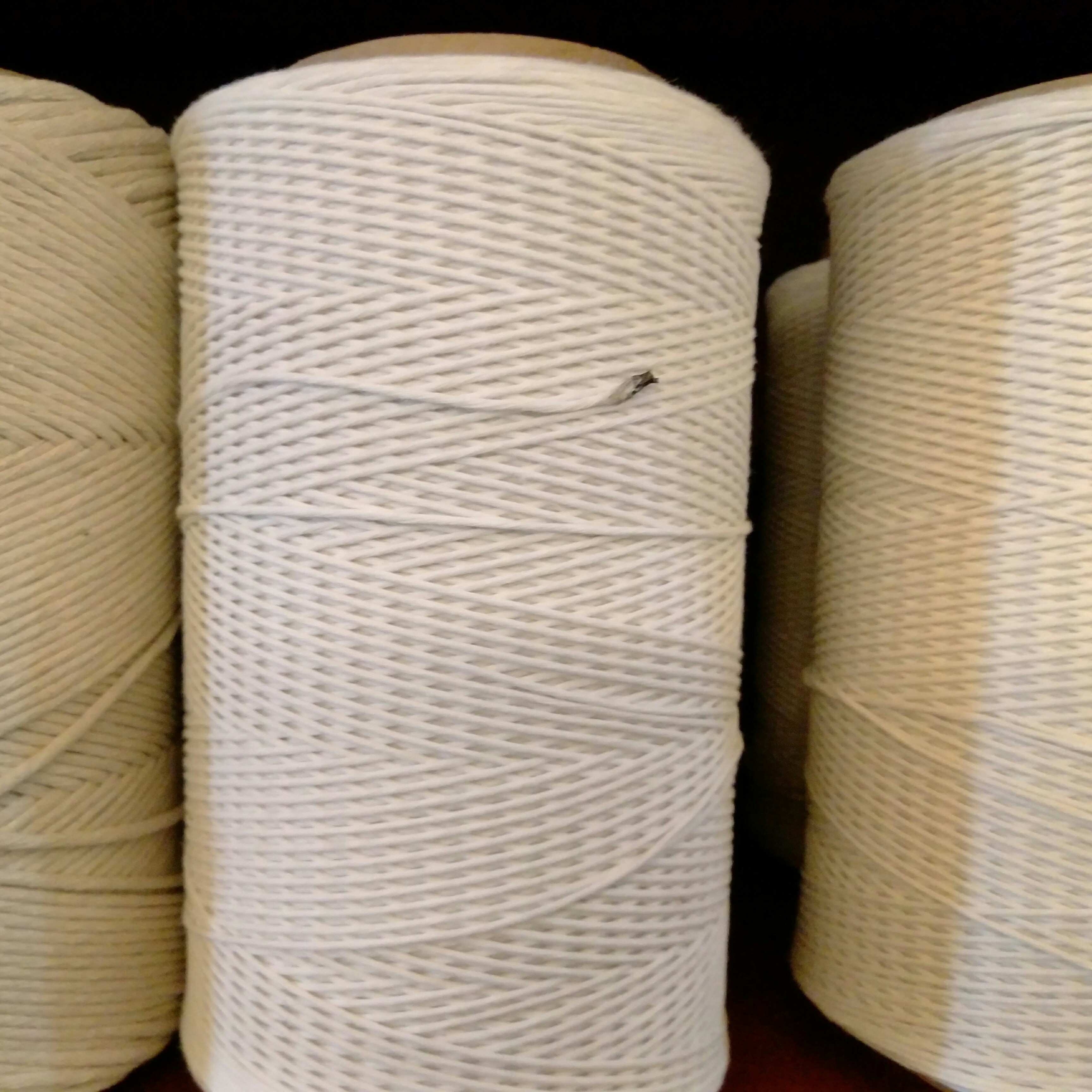

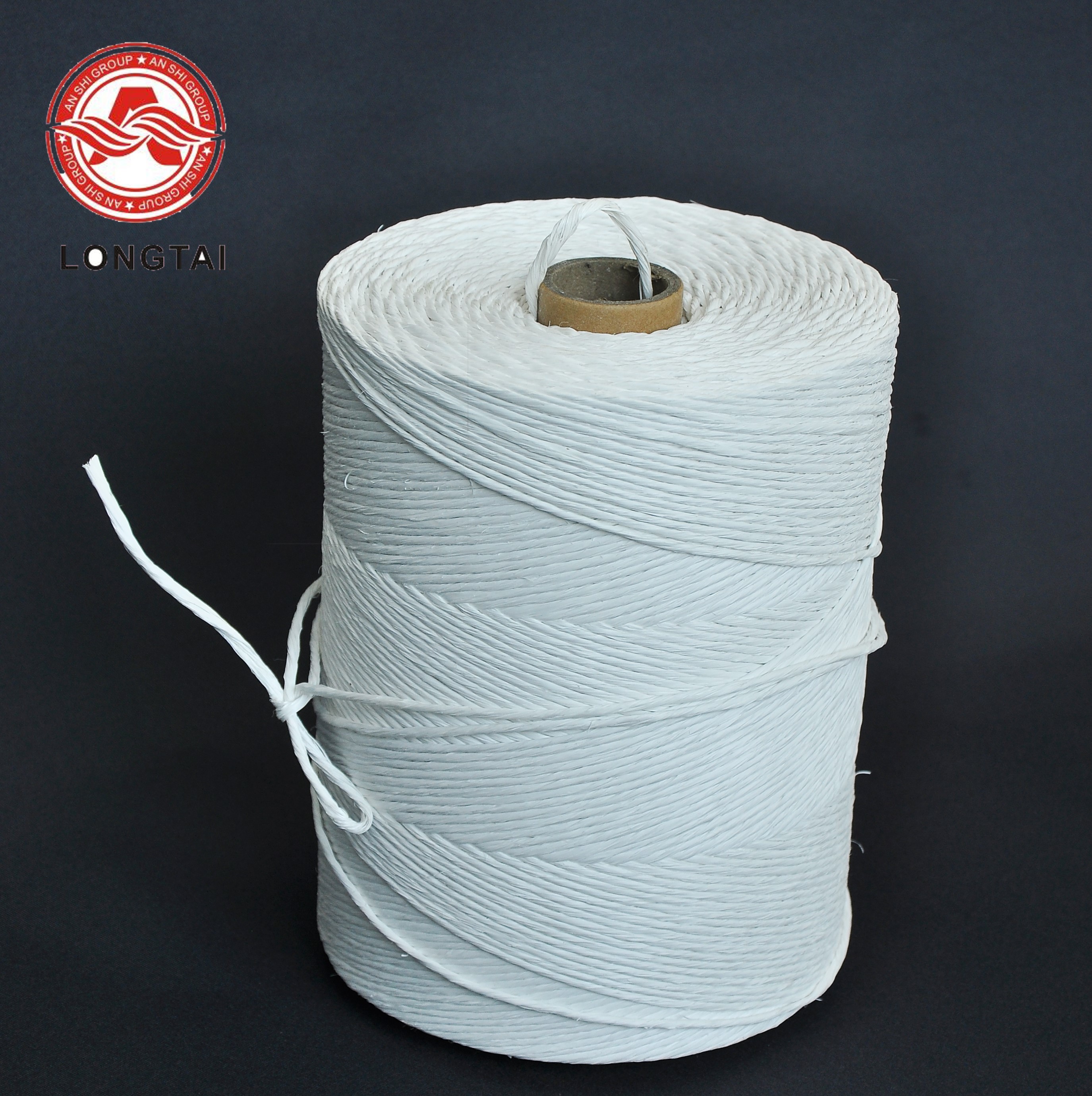

PP Cable Filler Yarn Pictures:
We can provide both untwisted and twisted PP filler ropes. The PP filler rope we provided has the following characteristics:
(1) Uniform, pure and pollution-free color.
(2) Gently stretch to form a mesh with uniform grid.
(3) Soft texture, ,flexible bending.
(4) After twisting, the twist of the filling rope is uniform and the outer diameter is stable.
(5) Neatly and unloose winding.
Cable Filler PP Yarn Application :
Mainly used for filling the gaps of various types of cables such as power cable, control cable, communication cable, etc.
PP Cable Filler Yarn Package:
PP filler rope are packaged according to different specifications.
PP Cable Filler Yarn Tube size :
| Iner core(mm) | 90 | 80 | 76 | 54 | 38 | 28 |
| Core Length(mm) | 258/432 | 306 | 306/432 | 258 | 230/258 | 260 |
Remark: Other tube size could be customzied
