Electrical Wires Flexible Soft PVC Granules for Automotive Cables

Product Description

Flexible PVC/E for Electrical Wires and Cables Soft PVC Granules for Automotive Cables

PVC Flexible

PVC, Polyvinylchloride, is the most commonly use electrical cable insulation material. BUT there are differences.

The standard designations of PVC insulation used in Australia are V-75, V-90, and V-90HT. Regardless of their designation all grades of PVC are rated at 75°C operating temperature for continuous use.

The intent of the higher rated PVC cables, V-90 and V-90HT, is to allow these cables to operate at higher rated temperatures only under certain special conditions. These conditions are outlined in AS/NZ 3000:2007 and in AS/NZS 3008.1.1:2009, and generally restrict their usage to only those installations where the risk of mechanical damage is low. This is because PVC softens considerably at higher temperatures and therefore is more vulnerable to damage.

Polyvinyl chloride (PVC) is a thermoplastic material. A typical formulation of this compound will consist of PVC copolymer, mineral fillers, lubricants, UV stabilisers, plasticisers and colourants.

Deterioration happens because of thermal aging. Plasticisers and lubricants leach out of the compound due to their volatility during exposure to heat. Over time, this will cause the insulation to become hard and brittle leading to cracking and eventual disintegration of the insulation, leading to live conductors becoming exposed.

The over use of fillers and plasticisers found in some PVC insulations allows for cheaper prices but increases the deterioration effects.

1.Technical Specifications

2.Use and standard: Electric power Cable& Power Cablewire and cable

3.Process: extrusion

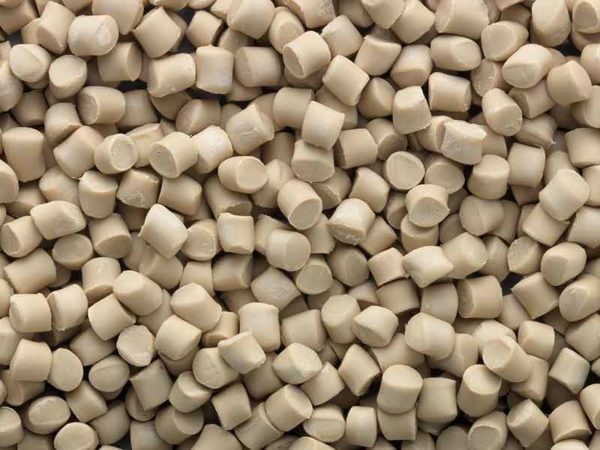

4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.

5.color: Any colors, base on requirement.

              Black and white, gre for Shealthing PVC compound

              Red, Yellow, Blue, White and black for Insulation PVC compound

6.Packing: 25kg net weight per in a kraft bag,We could support packaging agreed on by both manufacturer and client !  18 Tons per 20GP, 25Tons per 40GP

7. Transportation and Storage:

This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.

8.Factory Introduction:

Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
We always sincerely welcome any domestic and overseas customers with great enthusiasm.

9.How To order :

1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment


Any questions, please do not hesitate to contact us.
