2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
Minimum Order Quantity : | 1000 kilograms | Price : | usd 1.5-2 kilogram |
---|---|---|---|
Packaging Details : | 20---40kg/packing bag | Delivery Time : | 3-4 weeks after receive offical order |
Supply Ability : | 800 tons per month |
Place of Origin: | China,jiangxi | Brand Name: | anshi |
---|---|---|---|
Certification: | ISO 9001, Reach224 ,Rohs 2.0 | Model Number: | LSHF FR PP Filler Yarn |
Detail Information |
|||
Diameter: | 1-30mm | Evenness: | AA Grade |
---|---|---|---|
Material: | Virgin Polypropylene | Color: | Raw White, Blue, Yellow |
Denier: | 8000d-1630kd | Usage: | Cable Filler |
Highlight: | 1630kd LSHF PP Filler Yarn,AA Grade PP Filler Yarn,LSHF Polypropylene Filler Yarn |
Product Description
High flame resistance, high temperature filling cord
Product description
The product uses a special process, and high flame retardant can achieve refractory oxygen index criteria. 45 adaptable to flame cable power cables, fire-resistant carbon cable, marine flame resistant cables, flame retardant silicone rubber cables and other high temperature flame resistant cables.
Advantages
High temperature, high flame, soft, light weight and high strength. Non-halogen, non-asbestos, non-free glass fiber and other harmful substances .sitable for various types of inhalogen-free cables.
Features
Light weight, coust-effective.the production of this product is glass fiber 1/4, mineral wool 1/4, fire-resistant rubber 1/7, flame-reinforced cord can reduce production costs and improve cable performance. The product has passed the test of the national wire and cable test center, complying with the environmental requirements and resistant.
Item | Unit | General FR PP filler yarn | LOW SMOKE FR PP filler yarn |
Denier | D | +/- 10% | +/- 10% |
Density | 0.92 | 0.7-0.92 | |
Tenacity | g/D | >2.0 | 2.5 |
Oxygen index | 28 | 28 | |
Elongation | % | 10 | 10 |
Heat shrinkage(100deg20min)
| % | 5 | 5 |
Hologen | >10000PPM | <1000ppm | |
Burning smoke | Big smoke | Less smoke | |
Appearance | Raw white,no obvious stain | ||
Package | Mark:Product name, weight,denier,batch No. |

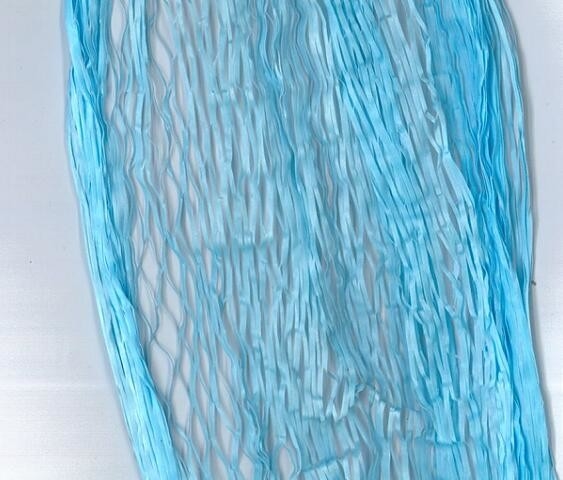

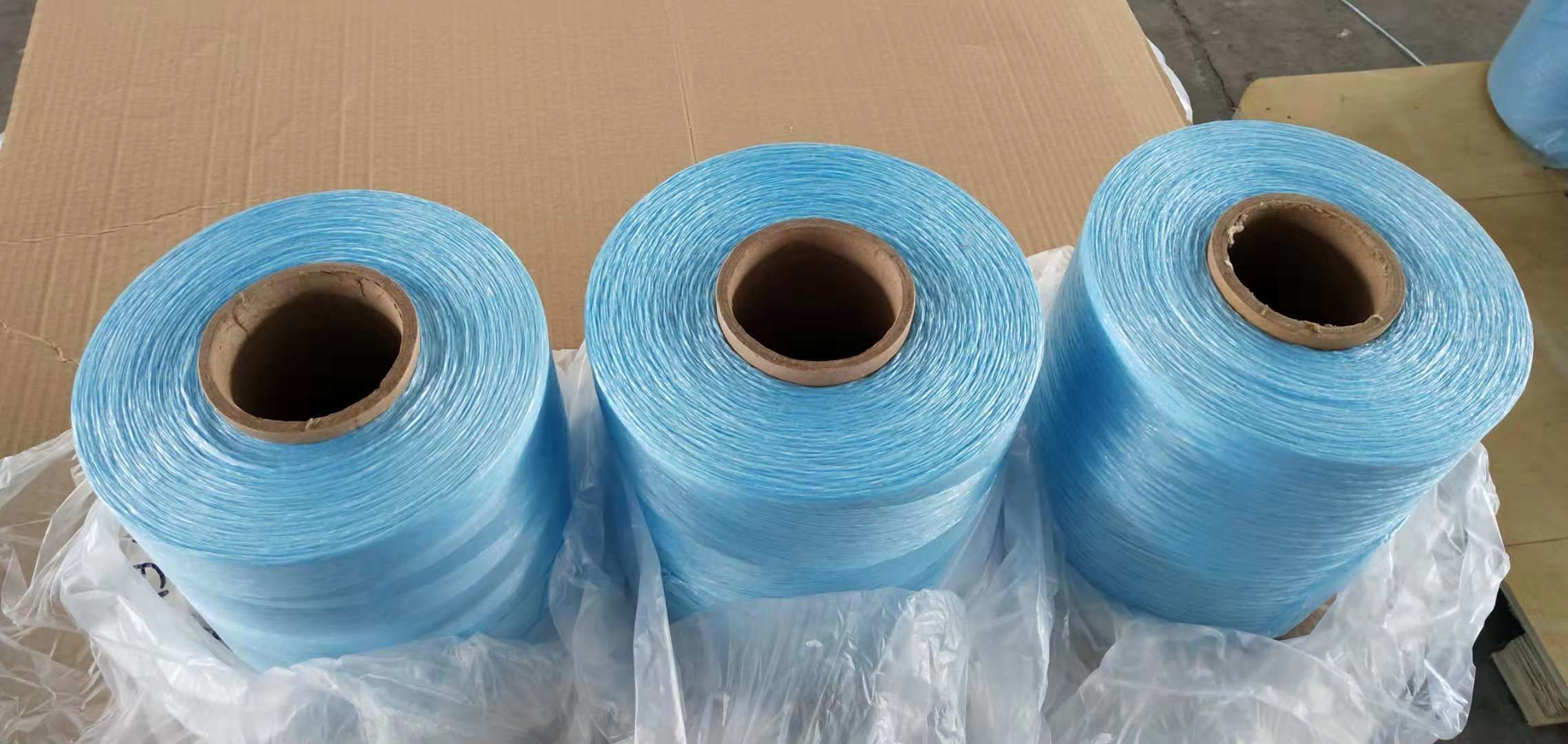

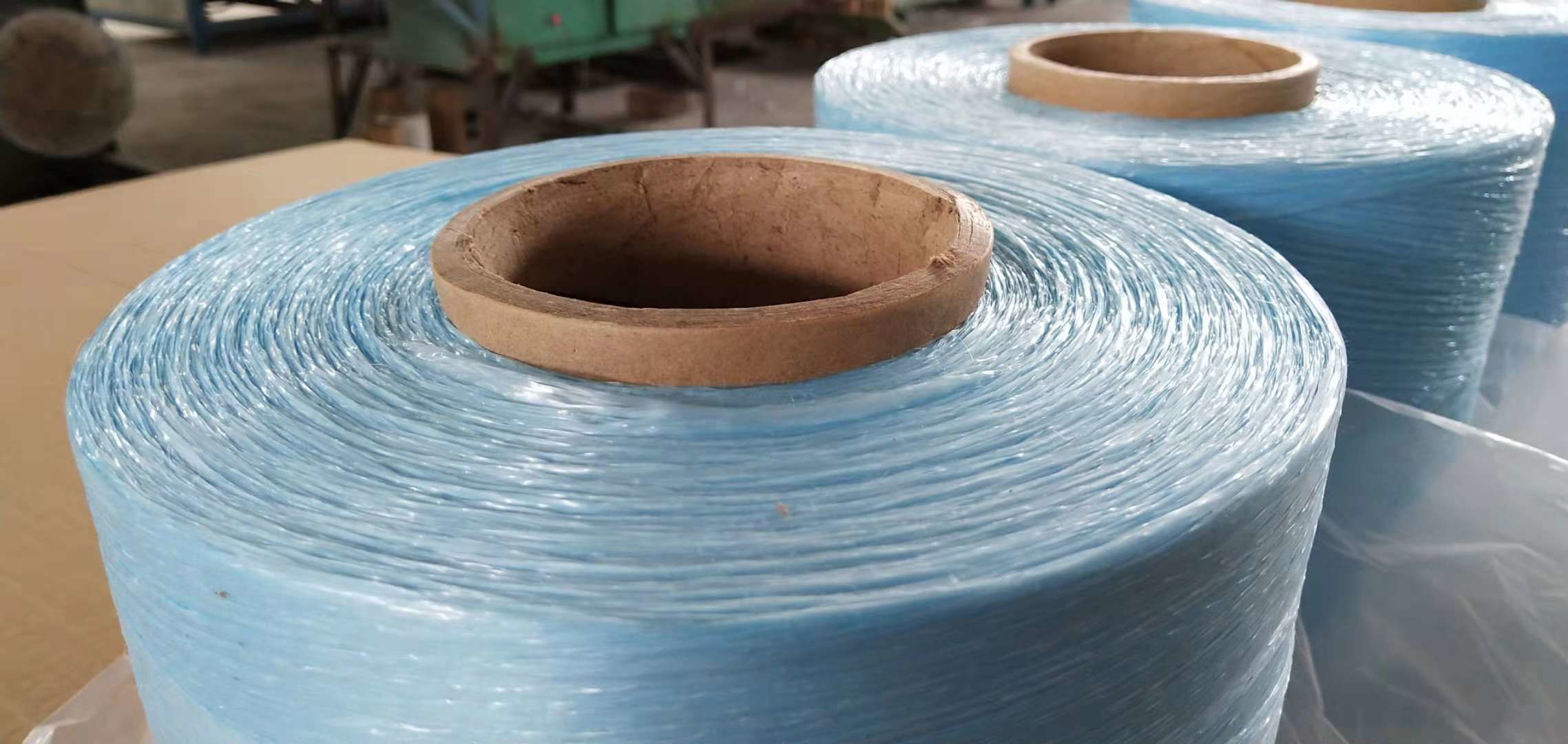

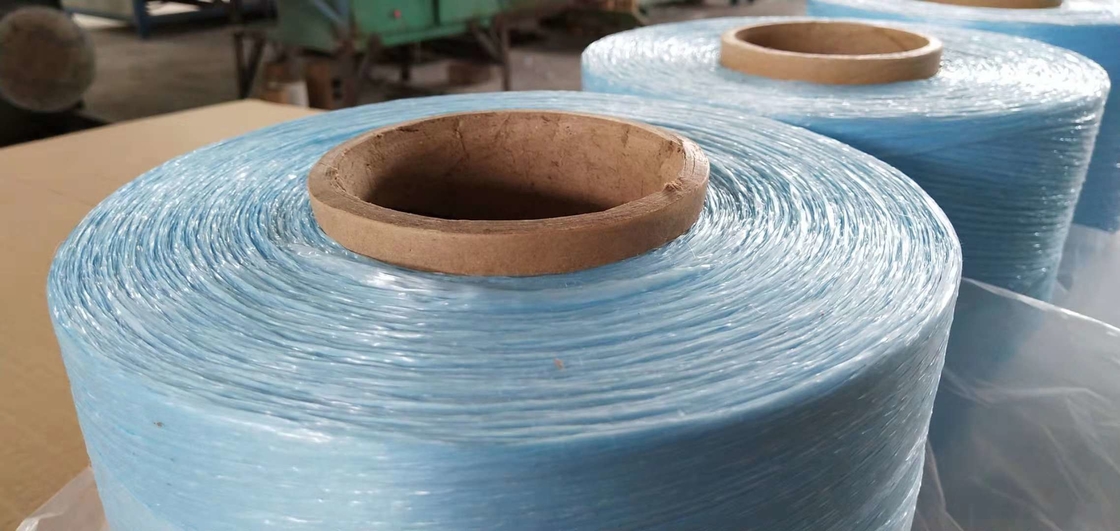

Halogen Free Flame Reatrdant PP filler Yarn Pictures
The flame retardant and high temperature resistant filler rope we provided has the following characteristics:
1) Soft texture, free bending, no delamination and powder removal when light bending.
2) Uniform twist and stable outer diameter.
3) No dust flying during use.
4) High oxygen index which can reach Class A flame retardant grade.
5) Neatly and unloose winding.

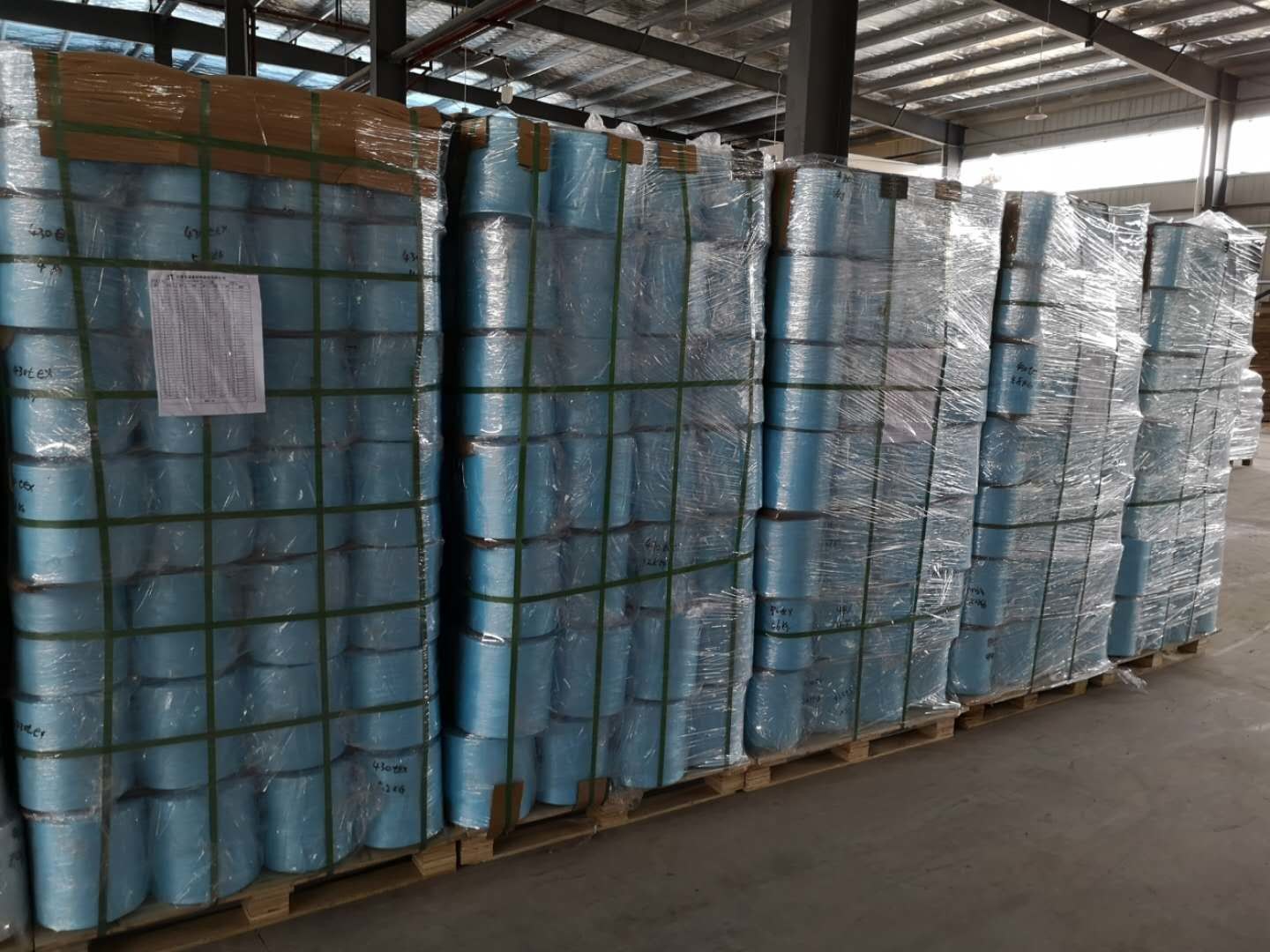

Halogen Free Flame Reatrdant PP filler Yarn Packages
Flame retardant and high temperature resistant filler rope has two packaging methods according to its specifications.
(1) Small size (88cm*55cm*25cm): The product is wrapped in a moisture-proof film bag and put into a woven bag.
(2) Large size (46cm*46cm*53cm): The product is wrapped in a moisture-proof film bag and then packed in a waterproof polyester non-woven bag.
Other sizes could be customzied.
Halogen Free Flame Reatrdant PP filler Yarn Applications:
Mainly used for filling the gap of cable core of flame-retardant power cable,flame-retardant mining cable, flame-retardant marine cable, flame-retardant silicone rubber cable, fire-resistant cable, fire(oxygen)-insulation layer cable and other cables requiring flame-retardant and high-temperature resistance.
After Service:
1. Best quality and best service for any order. No problem big or small order
2. One year warranty.
3. Please contact after our Service Department, inform us what problem you encounter.
4. We provide solving methods for you.
