56Dtex/24F High Tensile Filling In The Wire And Cable Liquid Crystalline Polyester Filament Zxion
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
Minimum Order Quantity : | 1000 kgs | Price : | negotiable |
---|---|---|---|
Packaging Details : | 5kg/roll, 30kg/roll, 45kg/roll | Delivery Time : | 25--30 days |
Payment Terms : | T/T, L/C | Supply Ability : | 1000 tons per month |
Place of Origin: | Jiangxi, China | Brand Name: | Longtai, ANAN |
---|---|---|---|
Certification: | REACH, ROHS, ISO 9001 | Model Number: | pp filler yarn |
Detail Information |
|||
Advantage: | Good Effect Of Cable Filling, Suitable For Large Cable | Breaking Strength: | 0.2-2.5g/d |
---|---|---|---|
Breaking Elongation: | <20% | Hot Shrinkage Rate: | 4.5-6% |
Specification: | 2000D -- 130KD | Color: | White |
Highlight: | 20KD PP Filler Yarn,White Fibrillated PP Filler Yarn,Natural Color PP Filler Yarn |
Product Description

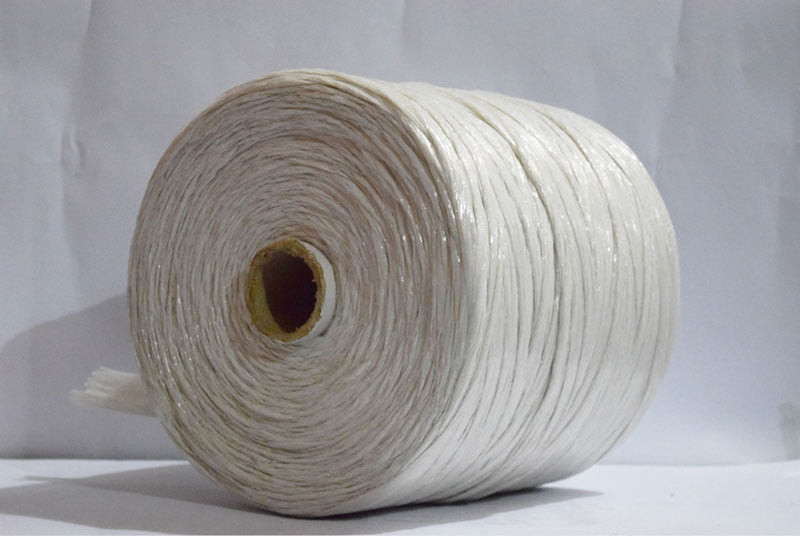

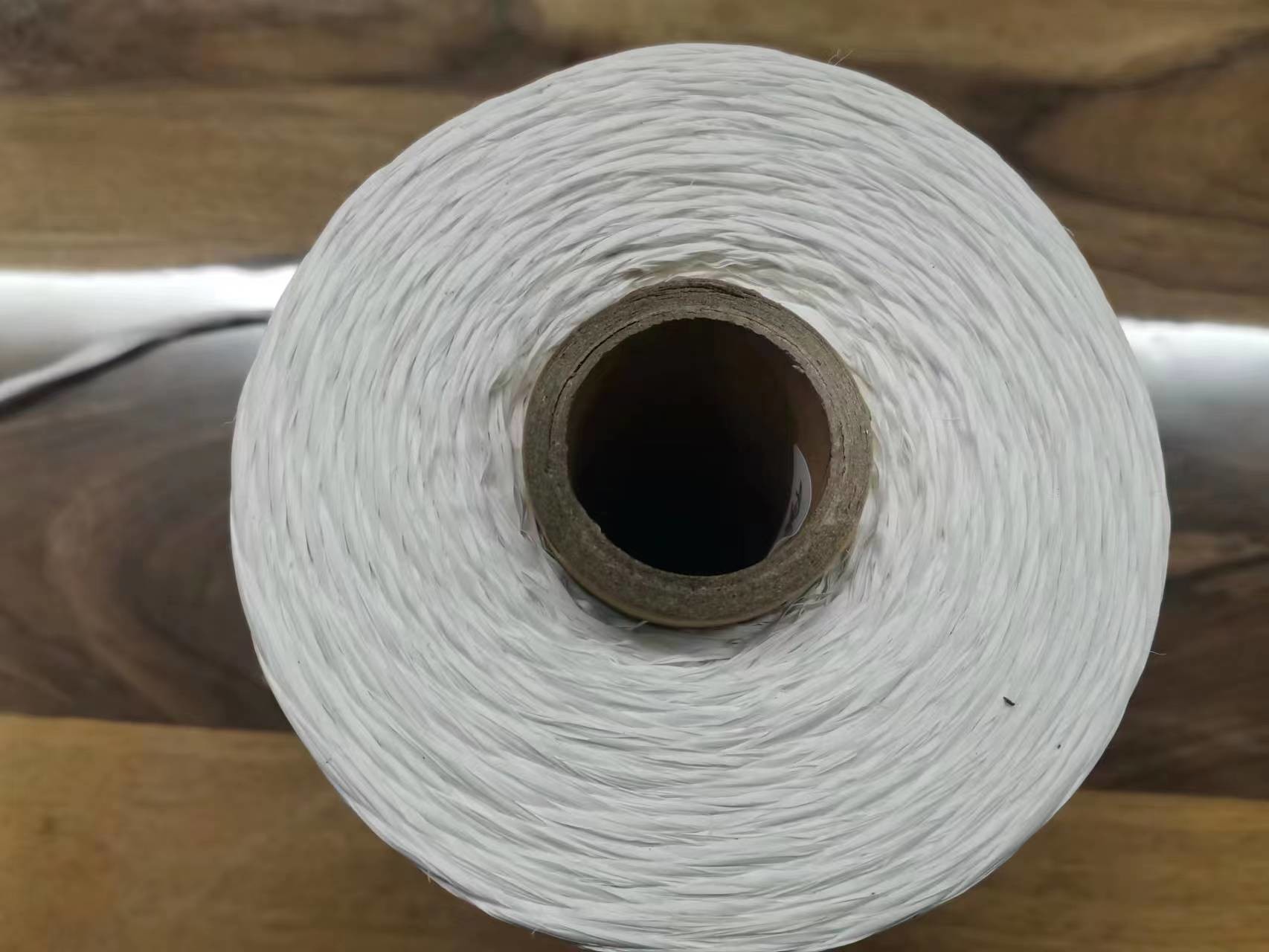

Jiangxi Longtai is a China leading manufacturer and supplier of PP cable filler yarn for cable and wire manufacturer all over the world.
Longtai PP cable filler yarn is produced from 100% virgin polypropylene material with CaCo3.
Longtai PP Cable filler yarn is produced with strict precision and high manufacturing standards. The whole production process from raw materials purchasing to finished yarn are under complete control.
Longtai always exceed cable manufacturer’s strict requirement and high expectation.
Custom made service is accepted to meet our clients’s unique requirement in different cable industry.
Such colors, fibrillation levels, and fiber diameter,density, Tensile strength, toughness, and elongation.
Longtai PP Cable filler yarn available in natural white,black, grey. The fire retardant PP cable filler yarn is yellow, blue,white.
Longtai PP cable filler yarn deniers and sizes can be made as per customers specifications.2000 denier to 360000 denier available.
Features:
1. 100% pp filler yarn or PP + Coca3 for wire and cable
2. ROHs/REACH Standard;
3. have patent
4. for wire cable filling
5. certificate: ISO 9001 by AF
Item | Unit | Spec of standard filler | Spec of common filler |
Linear Density | D | +/-10% | +/-10% |
Breaking strength | g/D | 0.6--1.4 | 0.2--0.6 |
Breaking elongation | % | <20 | <20 |
Hot shrinkage rate | % | 4.5 | 6 |
Specification data sheet for reference:
Density | 9KD | 18KD | 30KD | 60KD | 90KD | 120KD | 195KD | 630KD | 1130KD | 1630KD | 1935KD |
g/m+/-10% | 1g/m | 2g/m | 3.67g/m | 6.67g/m | 10g/m | 13.3g/m | 21.67g/m | 70g/m | 112g/m | 182g/m | 215g/m |
Diameter | 1mm | 2mm | 3mm | 4mm | 5mm | 6mm | 8mm | 12mm | 16mm | 20mm | 33mm |
Standard Filler Advantage:
A. The best price of good quality
B. Excellent service and fast delivery
C. Effective and attractive packaging
Normal Grade is suitable for large cables and is low in price. It is used for example in power cables, aerial cables, rubber cables, etc.
Common Filler Advantage:
cheap price, suitable for large cable
High Grade is suitable for all kinds of cables with a lower unit weight and reasonable price, no joint inside.
PP filler material:
pp rope Specificatioms | ||||
pp rope Item | Unit | pp rope standard | Remark | |
Fineness | D | specification±8% | 3000D-1136000D | |
pp rope Breaking | g/d | >1.5-2.5 | ||
pp rope tenacity | ||||
Tensibility | % | <20 | ||
shrinkage | % | <10 | 120*30min | |
in hot air | ||||
Appearance | Natural Color or White,color | |||
obvious stations | |
Our Services:
A variety of products
Enough stock
Fast delivery time
Specifications can be customized
24 hours service
Prompt reply
Small orders are accepted
Perfect after-sale service
