56Dtex/24F High Tensile Filling In The Wire And Cable Liquid Crystalline Polyester Filament Zxion
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
Minimum Order Quantity : | 1000 kgs | Price : | negotiable |
---|---|---|---|
Packaging Details : | 5kg/roll, 30kg/roll, 45kg/roll | Delivery Time : | 25--30 days |
Payment Terms : | T/T, L/C | Supply Ability : | 1000 tons per month |
Place of Origin: | Jiangxi, China | Brand Name: | Longtai, ANAN |
---|---|---|---|
Certification: | REACH, ROHS, ISO 9001 | Model Number: | pp filler yarn |
Detail Information |
|||
Advantage: | Good Effect Of Cable Filling, Suitable For Large Cable | Breaking Strength: | 0.2-2.5g/d |
---|---|---|---|
Breaking Elongation: | <20% | Hot Shrinkage Rate: | 4.5-6% |
Specification: | 2000D -- 130KD | Color: | White |
Highlight: | Armouring Yarns Polypropylene Cable Filler,130KD PP Yarns,30.0Mm Diameter PP Yarns |
Product Description

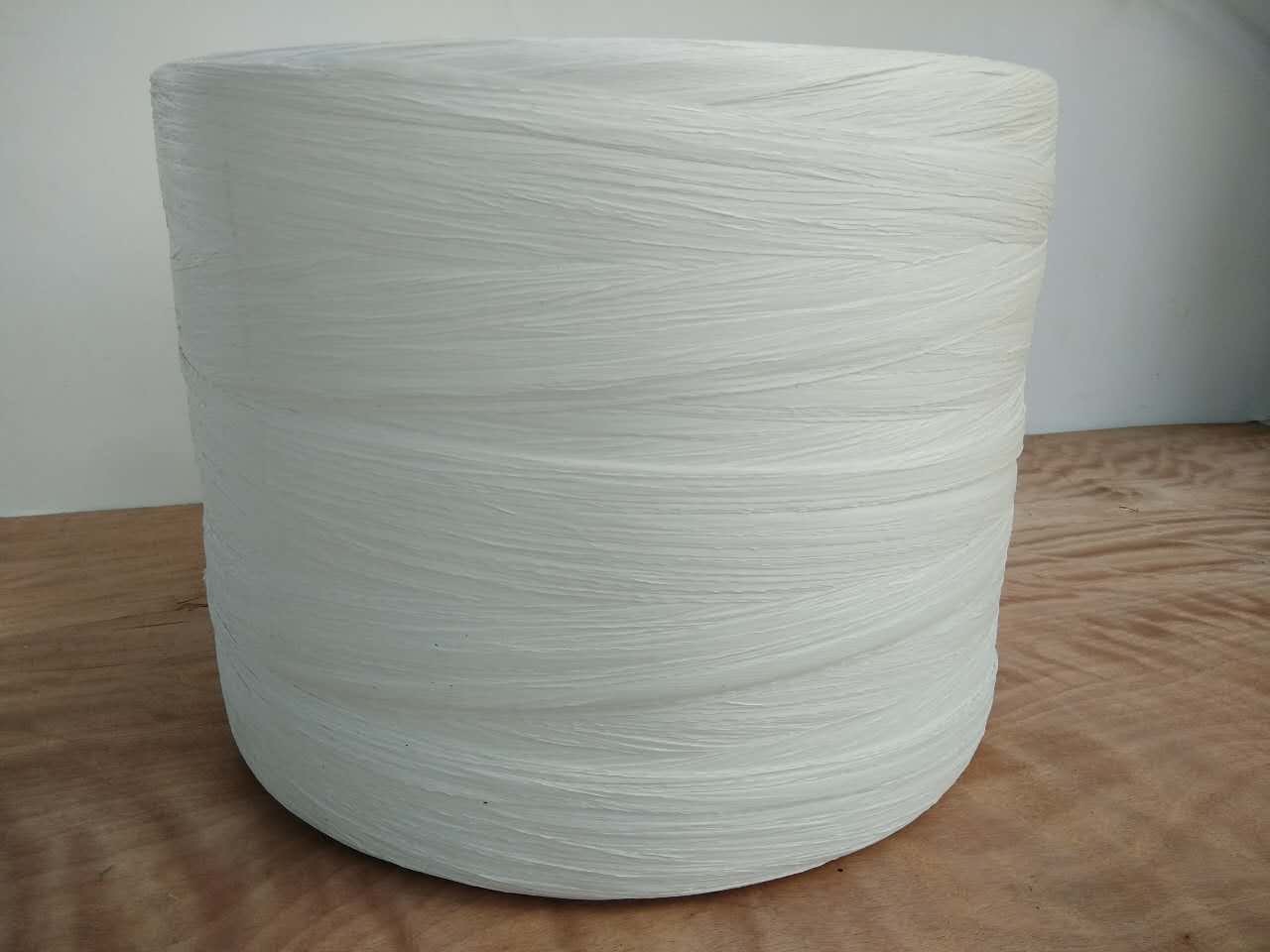

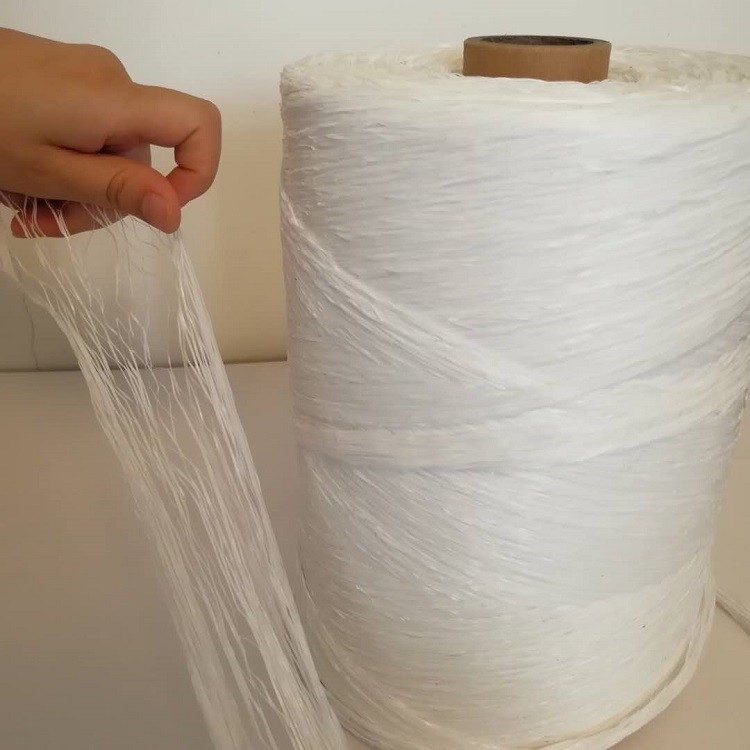

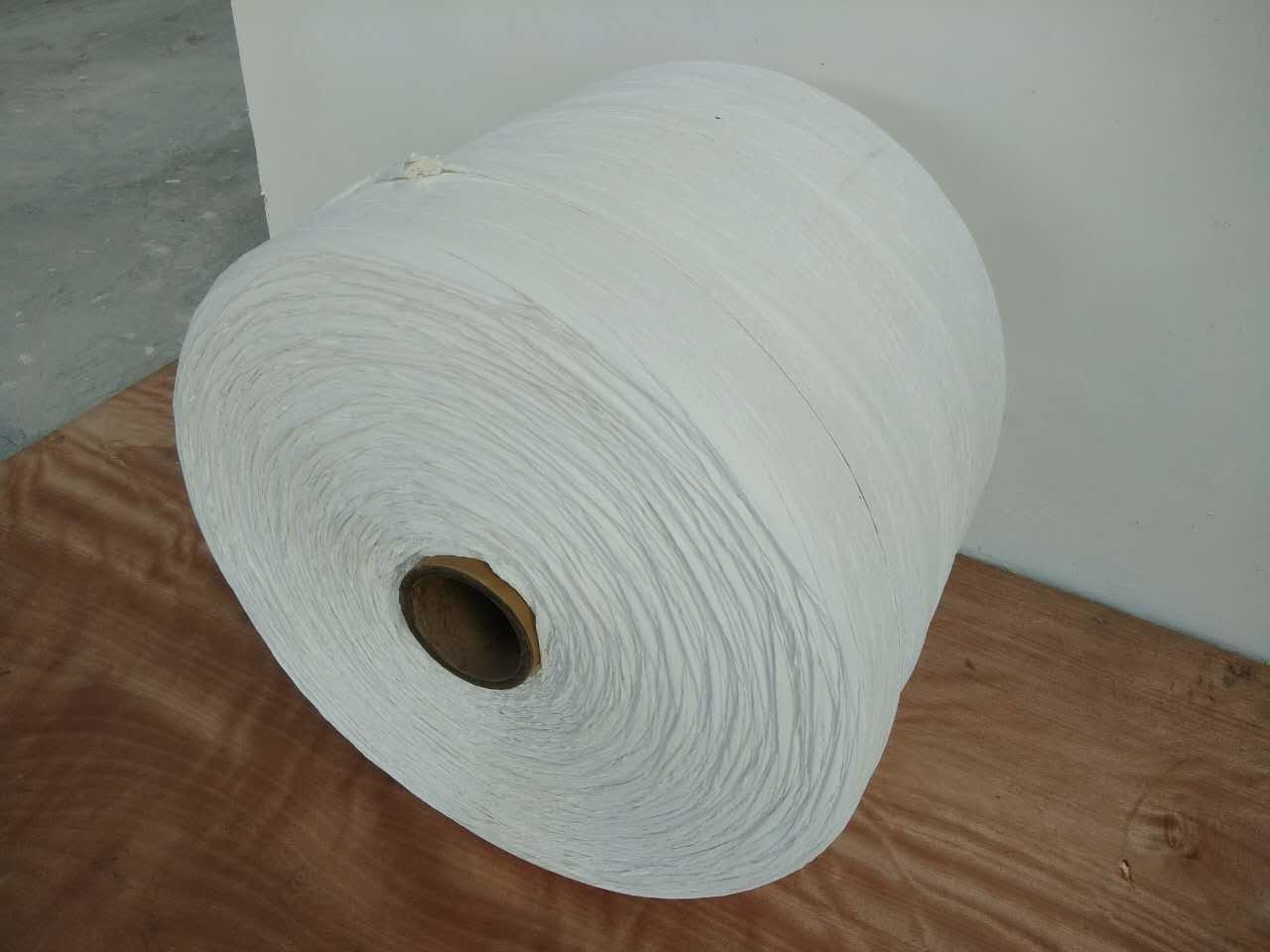

Jiangxi Longtai has a broad experience within the field of polypropylene based cable filler and armouring yarns, either colored or white of color within the standard range of 0.5 up to 30.0 mm diameter, however other diameters of PP Yarns are possible available upon request.
Our PP (polypropylene) filler and armouring yarns are being produced at the highest production and quality standards specified under ISO-9001; produced from 100% virgin PP material without recycle or CaCo3, white or colored. For armouring yarns we have diverse colors such as yellow, orange, white, green and red.
The advantage of PP cable filler yarn is as below:
Excellent flexibility,ensure the cable stablility and keep the cable round
Non-absorbent material keep the high tensile strength
Acid and alkali resistance. high insulation performance
High voltage resistance, environment friendly
Features:
1. 100% pp filler yarn or PP + Coca3 for wire and cable
2. ROHs/REACH Standard;
3. have patent
4. for wire cable filling
5. certificate: ISO 9001 by AF
Item | Unit | Spec of standard filler | Spec of common filler |
Linear Density | D | +/-10% | +/-10% |
Breaking strength | g/D | 0.6--1.4 | 0.2--0.6 |
Breaking elongation | % | <20 | <20 |
Hot shrinkage rate | % | 4.5 | 6 |
Specification data sheet for reference:
Density | 9KD | 18KD | 30KD | 60KD | 90KD | 120KD | 195KD | 630KD | 1130KD | 1630KD | 1935KD |
g/m+/-10% | 1g/m | 2g/m | 3.67g/m | 6.67g/m | 10g/m | 13.3g/m | 21.67g/m | 70g/m | 112g/m | 182g/m | 215g/m |
Diameter | 1mm | 2mm | 3mm | 4mm | 5mm | 6mm | 8mm | 12mm | 16mm | 20mm | 33mm |
Standard Filler Advantage:
A. The best price of good quality
B. Excellent service and fast delivery
C. Effective and attractive packaging
Normal Grade is suitable for large cables and is low in price. It is used for example in power cables, aerial cables, rubber cables, etc.
Common Filler Advantage:
cheap price, suitable for large cable
High Grade is suitable for all kinds of cables with a lower unit weight and reasonable price, no joint inside.
PP filler material:
pp rope Specificatioms | ||||
pp rope Item | Unit | pp rope standard | Remark | |
Fineness | D | specification±8% | 3000D-1136000D | |
pp rope Breaking | g/d | >1.5-2.5 | ||
pp rope tenacity | ||||
Tensibility | % | <20 | ||
shrinkage | % | <10 | 120*30min | |
in hot air | ||||
Appearance | Natural Color or White,color | |||
obvious stations | |
Our Services:
A variety of products
Enough stock
Fast delivery time
Specifications can be customized
24 hours service
Prompt reply
Small orders are accepted
Perfect after-sale service
Why chooose us :
1. We have more than 15 years’ production experience and
more than 7 years exporting experience
2. A full set of advanced facilities and a team of skilled tech
workers
3. Factory direct sales with competitive price
4. Best materials selection and strict quality control
5. Considerate service, prompt delivery, each inquiry will be
consulted very carefully
6. A professional and excellent working team
We pack the pp cable filler yarn in paper tubes or spools. each tube or spool in poly bag, carton and woven bag or outer package.
Longtai provide the complete process from sample testing stage to ship out the pp cable filler yarn to your country.
Please contact us for more information on our pp cable filler yarn or you can ask our sales to send you free samples
We look forward to speaking to you.
