M300 Cable Separating and Insulating films 0.00300″ (76µ) Polyester film
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
Minimum Order Quantity : | 1000kg | Price : | Negociated |
---|---|---|---|
Packaging Details : | Coil and Carton Packaging | Delivery Time : | 1-2 weeks |
Payment Terms : | L/C, T/T, D/P | Supply Ability : | 800 tons per month |
Place of Origin: | CHINA | Brand Name: | OEM |
---|---|---|---|
Certification: | ISO 9001, REACH, ROHS | Model Number: | PP TAPE |
Detail Information |
|||
Material: | Polypropylene | Type: | Cable Wrapping Material |
---|---|---|---|
Application: | Cable And Wire | Color: | Transparent Clear White |
Certification: | ISO9001,IOS14001,ROHS | Port: | Shenzhen |
Packing: | Coil | Sample: | Provided |
Highlight: | 60my Insulation Tape,Polypropylene Cable Wrap Tape,ROHS Cable Wrap Tape |
Product Description
Product Description:
Cable wrapping CPP tape is heat resistance, the main feature of CPP tape is secure when wrapping and banding
The cable wrapping CPP tape is antislip compared with PET tape and Bopp tape
Presently the CPP tape is replacing many other material cable wrapping tapes becoming the most usded cable wrapping tape
Corrosion resistant, high insulation property is very good, low heat shrinkage at high temperatures.
Widely used in telecommunication cable, data cable,coaxial-cable,network cable,signal cable ect
Application:
Mainly used for wrapping in power cable, control cable, cross-linked cable, mining cable, communication cable.
Main specification:
Name |
Specification (mm) |
Basis weight (g/m2) |
Tensile strength (Mpa) |
Elongation atbreak (%) |
Transparent PP TAPE |
0.06±0.01 | 60±10 | ≥150 | ≥30 |
White PP Tape | 0.06±0.01 | 70±10 | ≥100 | ≥15 |
In addition to the above specifications, other special requirements can design according to customers |

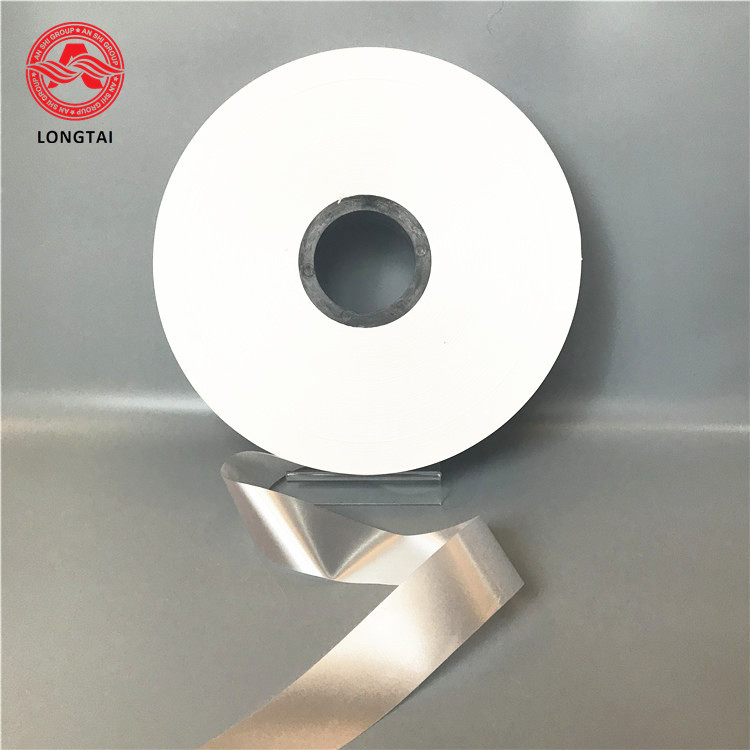

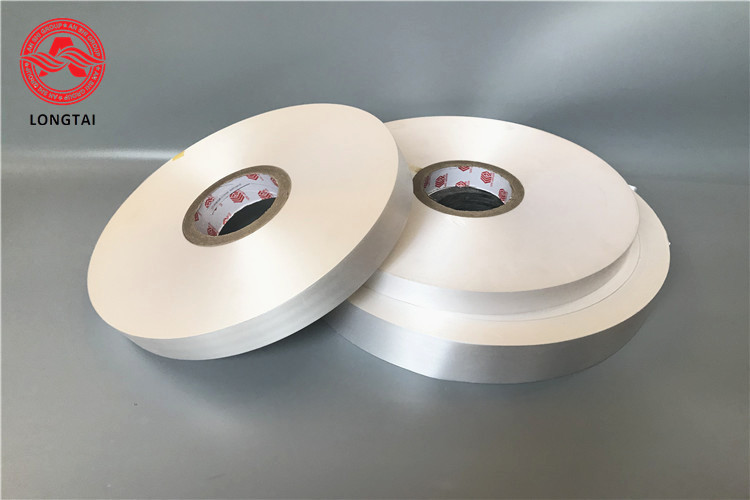

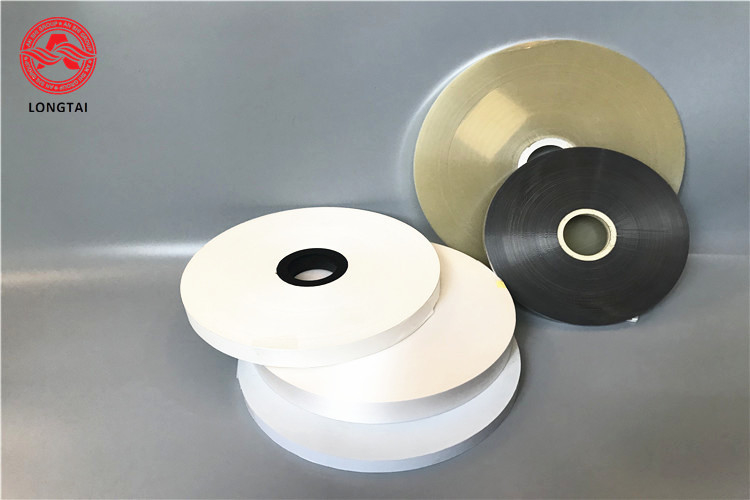

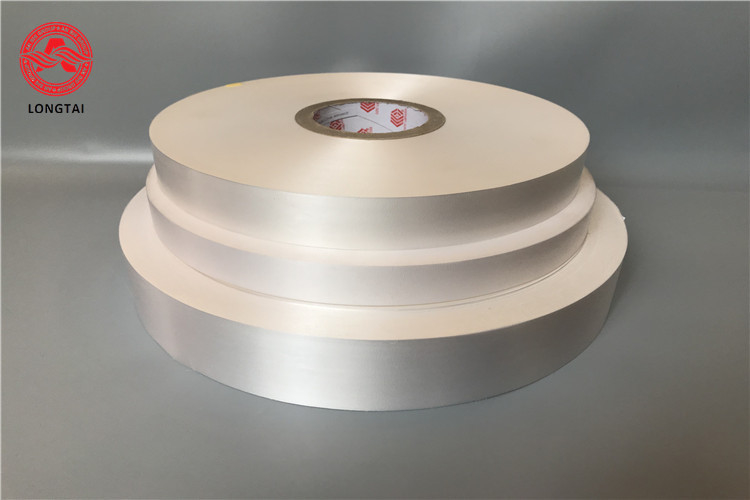

Product Show:
Color: Transparent, white, blue, green, red
Electrical characteristics:
The product light weight, thin thickness, tensile strength, moderate elongation, moisture, non absorbent, good electrical properties, flame retardant properties, single coil length, stripping resistance, good heat resistance, and wound tightly round.
Slitting and packaging:
Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
Storage:
It should be stored in dry and clean warehouse and should be far away from fire and heating. It could not be exposed to the sunshine. The shelf life is 18 months after the manufacturing date.
