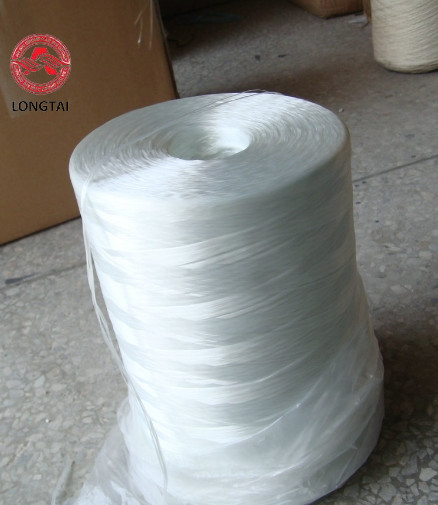

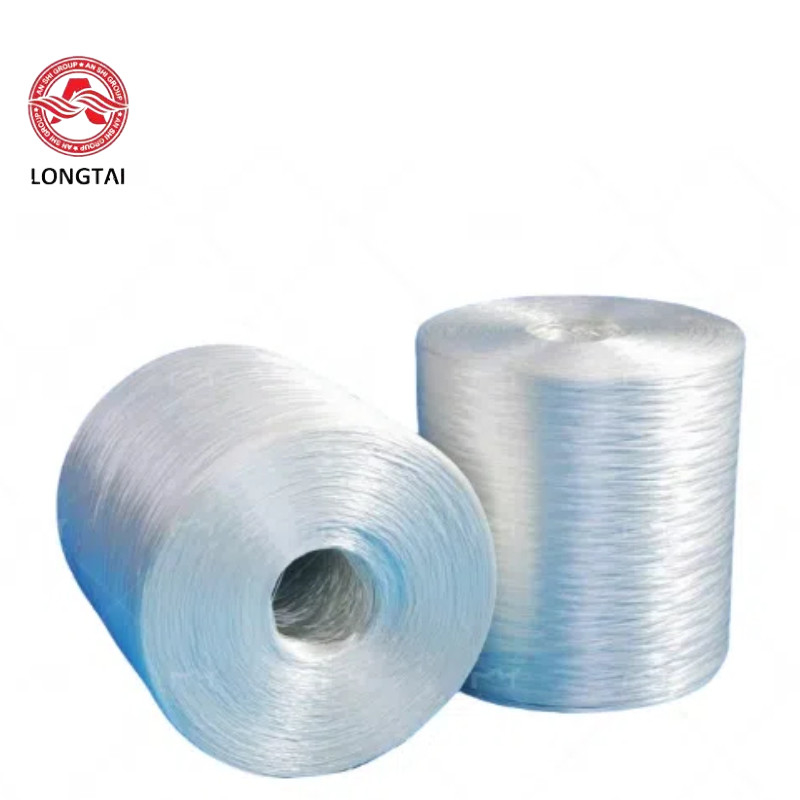

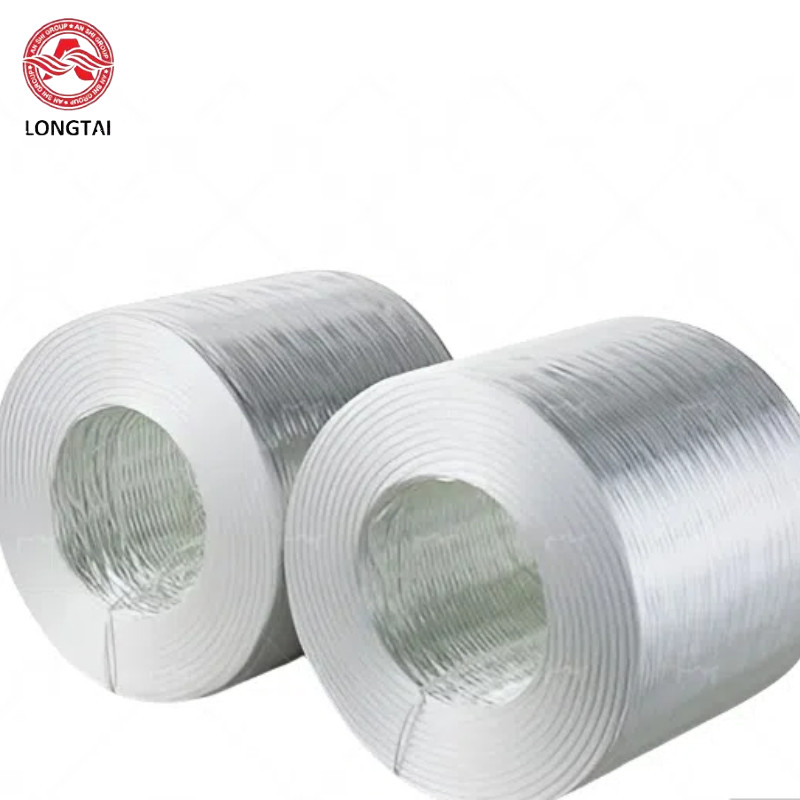

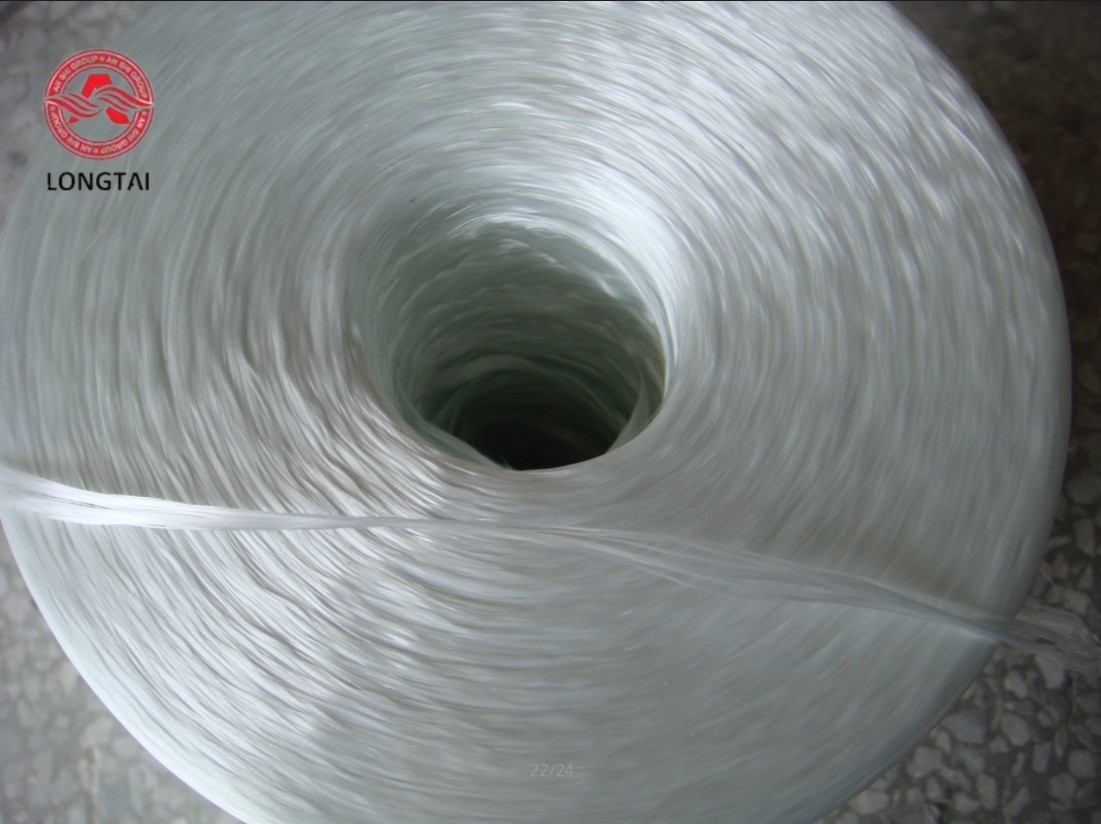

Flame Retardant Glass Fiber Rope
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000 KGS | Price : | 0.5-1/kg |
|---|---|---|---|
| Delivery Time : | 2-3 weeks | Payment Terms : | L/C, T/T |
| Supply Ability : | 3000 MT/Month |
| Place of Origin: | China | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | Reach,Rohs | Model Number: | Glass Yarn |
|
Detail Information |
|||
| Application: | Cable Filler | Color: | White |
|---|---|---|---|
| Packing: | 2.5---40KG/roll | Feature: | Glass Yarn Armoured Fiber Yarn |
| Highlight: | 600 Tex Fiberglass Glass Yarn,1100 tex Glass Yarn,1200 tex Glass Yarn |
||
Product Description
Glass yarn (Glass yarn with Water Blocking effect) are primarily used as peripheral strength elements in fibre optic cables. This flexible and flat glass yarn is composed from premium quality glass filaments and PU-polymeric resins to enhance the properties and increase its abrasion resistance to heavy duty processes.
Glass Yarn (GLABER) is a form of combined multiple e-glass type single filaments, between 4 to 9 microns depending on yarn count, in a continuous strand with S or Z turns.
Longtai provides better thermal and electrical insulation to get higher stability even under elevated temperatures up to 500°C with high resistant to most acids, oils, fats and solvents.
The glassfiber yarn has high tensile strength, minimal dilation and very low density which are the special features in extremely favourable strength results compared with other materials.
1. Direct Yarn
| Linear Density (tex) |
Length Per Kilogram (m/kg) |
Breaking Strength (N) |
Nominal Diameter (μm) |
Combustible Content (%) |
Water Content (%) |
| 300±5% | 3333 | ≥0.30 | 14 | 0.55±0.15 | ≤0.10 |
| 600±5% | 1667 | 16 | |||
| 1200±5% | 833 | 16 | |||
| 2400±5% | 416 | 24 | |||
| 4800±5% | 208 | 24 | |||
| 8800±5% | 113 | 27 | |||
| 9600±5% | 104 | 28 |
2. PU Impregnate Yarn
| Specification | Unit | Standard Type | Water Blocking Type | ||||||
| Linear Density | Tex | 600 | 785 | 1200 | 2400 | 600 | 785 | 1200 | 2400 |
| Linear Density Tolerance | % | ±10 | |||||||
| Density | g/cm³ | 2.55±0.55 | |||||||
| Tensile Strength - Break | N | ≥300 | ≥330 | ≥600 | ≥850 | ≥300 | ≥330 | ≥600 | ≥850 |
| Tensile Strength – LASE0.5% | ≥65 | ≥90 | ≥140 | ≥260 | ≥65 | ≥90 | ≥140 | ≥260 | |
| Tensile Strength – LASE1.0% | ≥130 | ≥180 | ≥300 | ≥550 | ≥130 | ≥180 | ≥300 | ≥550 | |
| Tensile Strength – LASE1.5% | ≥210 | ≥270 | ≥400 | ≥780 | ≥210 | ≥270 | ≥400 | ≥780 | |
| Elongation at break | % | ≥2.0 | |||||||
| Tensile Modulus (Young Modulus) |
Gpa | ≥75 | |||||||
| Water Swellable Rate | % | N/A | ≥300 | ||||||
| Yarn Width | mm | 2.2 | 2.8 | 3.8 | 4.3 | 2.2 | 2.8 | 3.8 | 4.3 |
| Yarn Thickness | mm | 0.16 | 0.2 | 0.25 | 0.3 | 0.18 | 0.25 | 0.26 | 0.32 |
1, Direct Yarn
| Yarn ID (mm) |
Yarn Height (mm) |
Yarn OD (mm) |
Yarn Weight (kg) |
Core |
| 160 | 260, 265 | 270-275 | 17 | Empty, without bobbin |
2. PU Impregnate Yarn
| Yarn ID (mm) |
Yarn Height (mm) |
Yarn OD (mm) |
Yarn Weight (kg) |
Core |
| 94 | 220, 275 | 200-240 | 8-16 | Paper |
Application :
Glass Yarn Armoured Fiber Optic Cable Series are meant for duct applications. Dielectric strength member – Glass Yarn, gives protection to the cable against rodent attacks. Because of their dielectric nature cables can be laid along with high voltage lines inside ducts.
